Operation
4
Operation
Joystick —
Single-lever operation
WARNING
There is a risk of becoming trapped
between parts due to the moving lift
mast or the attachment.
Therefore, never reach into or enter
the lift mast or the area between the lift
mast and the truck.
The lifting system and attachments
must only ever be used for their
intended purpose.
Drivers must be instructed in the
handling of the lifting system and
attachments.
Take note of the maximum lift height.
e3861479a

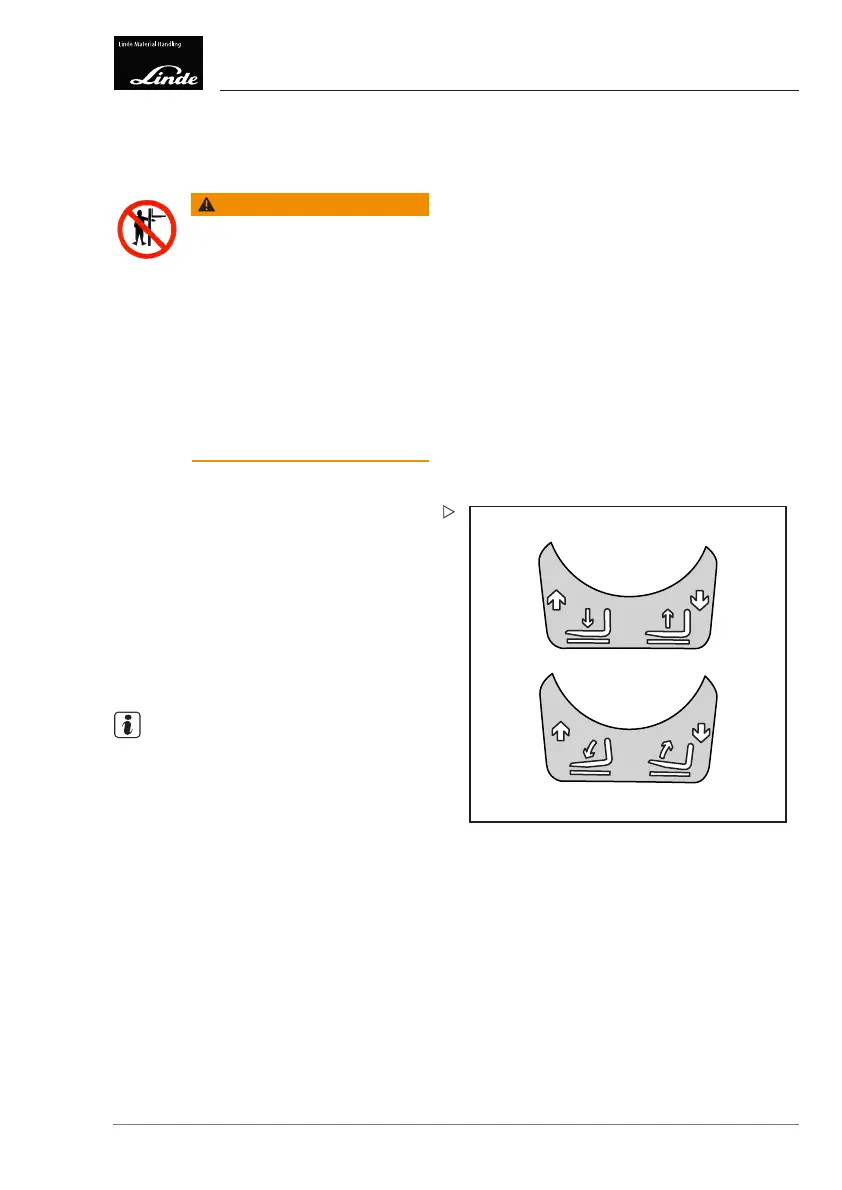

Operating the lifting and tilting equipment
Take note of the switching symbols with
arrows.
The joystick must always be operated gently,
and never in a jerking motion. The deflec-
tion of the joystick is used to determine the
lifting/lowering and tilting speed. Once the joy-
stick is released, it automatically returns to its
initial position.
NOTE
Joysticks o
nly function when the truck is
switched on an
d the driver is sitting in the
driver's seat.
Operating Instructions – 3888011701 EN – 12/2017 135
