4
Operation
Operation
e3861476a
2

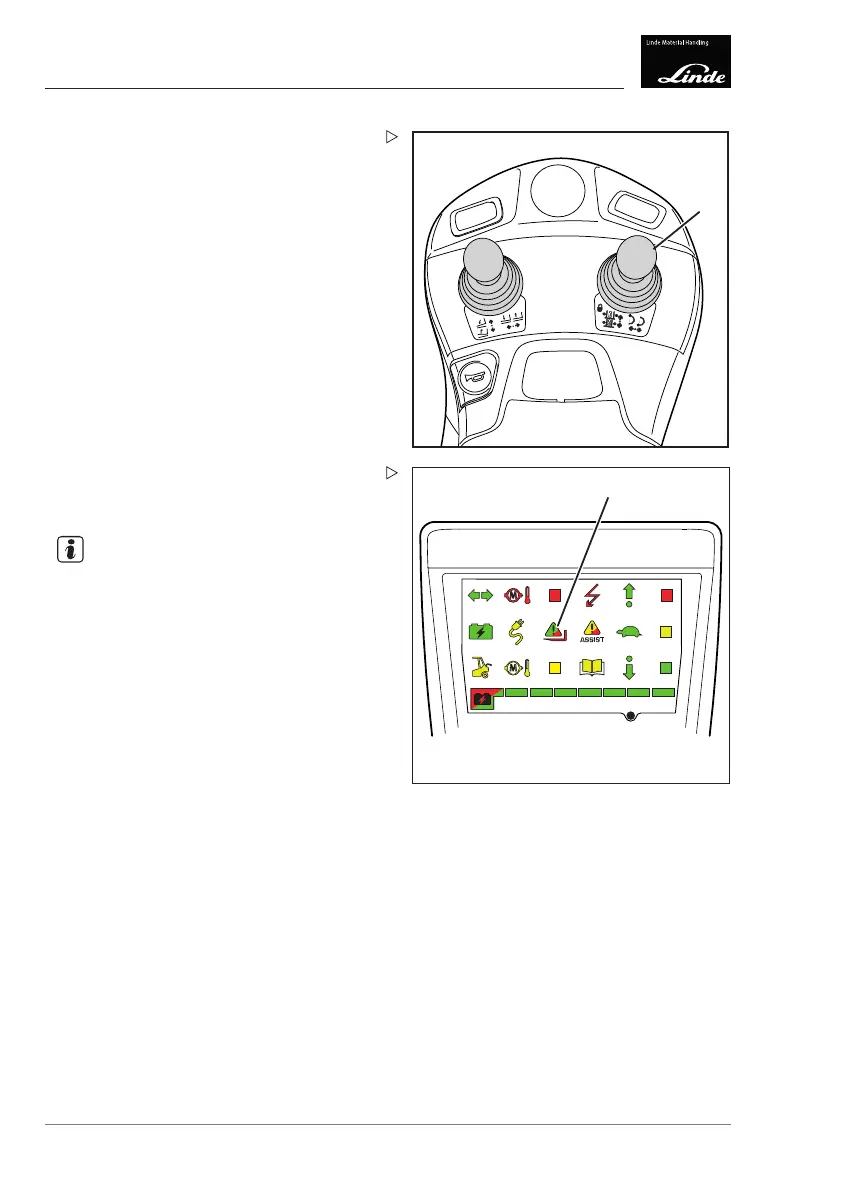

Electronically locked
Push joystick (2) forwards by at least 40%
and then move to the zero position.
1
Display_e0038a
Thejoystickisunl
ocked for approximately one
second and the disp
lay (1) lights up in green in
the display unit.
NOTE
If the joystick is not moved forwards within this
time period, it is locked again.
Push the joystick (2) forwards.
Clamp opens.
Once the joystick has been released, it is
locked again within one second.
Pull the joystick (2) backwards.
Clamp closes.
134 Operating Instructions – 3888011701 EN – 12/2017
