Operation
4
Workingwithaload
EFF
°
0,0
2
1
Display_e0057b

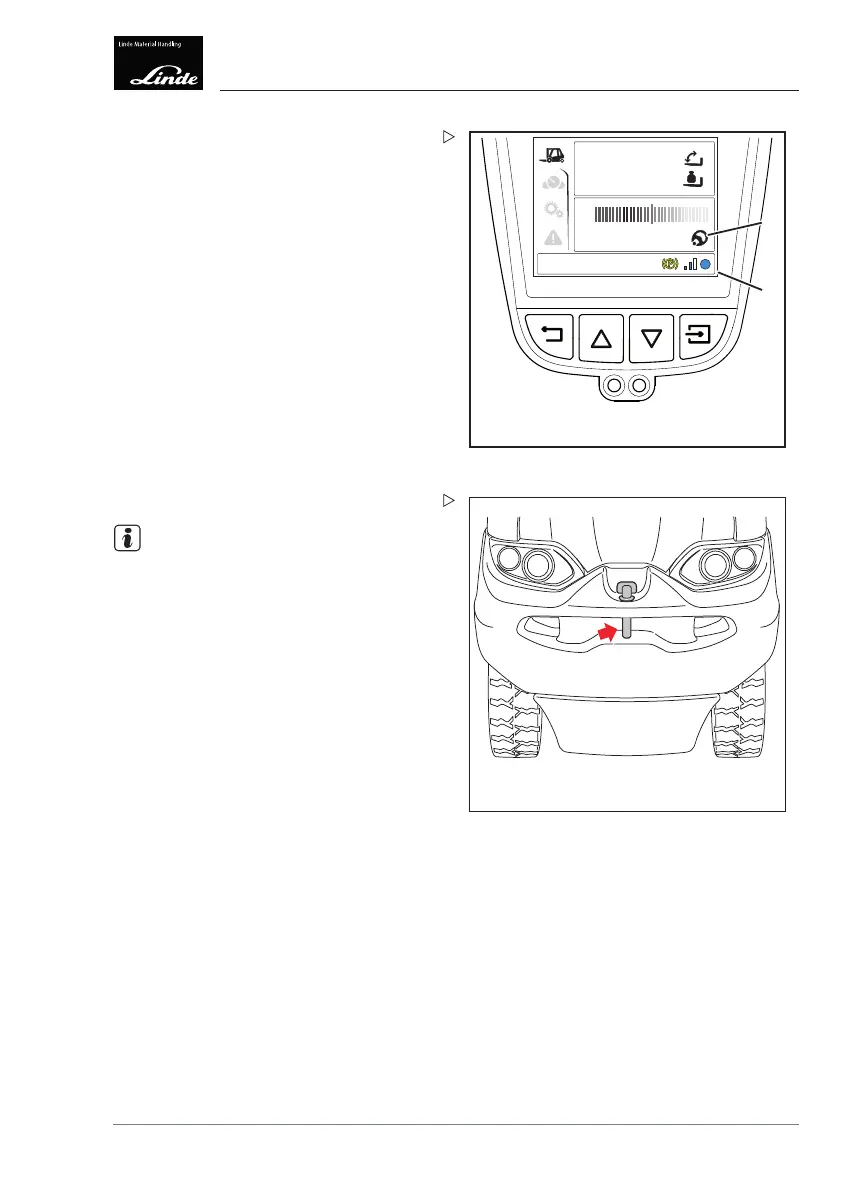

Steering angle display
The steering angle display mu
st be activated
using the diagnostic program
.
Contact your service partner.
When this function is enabled, the symbol (1)
lights up in the display unit.
The steering angle is show
n as a bar display
across segments in the sec
ond line of the text
display (2).
e3871499
Towing device
NOTE
Thetowingdeviceisonlyusedforon-site
towing operations. The national regulations
for the use of unbraked trailers on industrial
trucks must be observed.
Turn the towing pin (see arrow) in an
anti-clockwise direction by 90° and lift the
towing pin.
Insert the towing jaws into the clutch release
sleeve.
Push the towing pin down against the spring
pressure, turn the towing pin in a clockwise
direction by 90° and allow it to engage into
place in the catch.
Operating Instructions – 3888011701 EN – 12/2017 161
