4
Operation
Operation
e3861472a
1
2

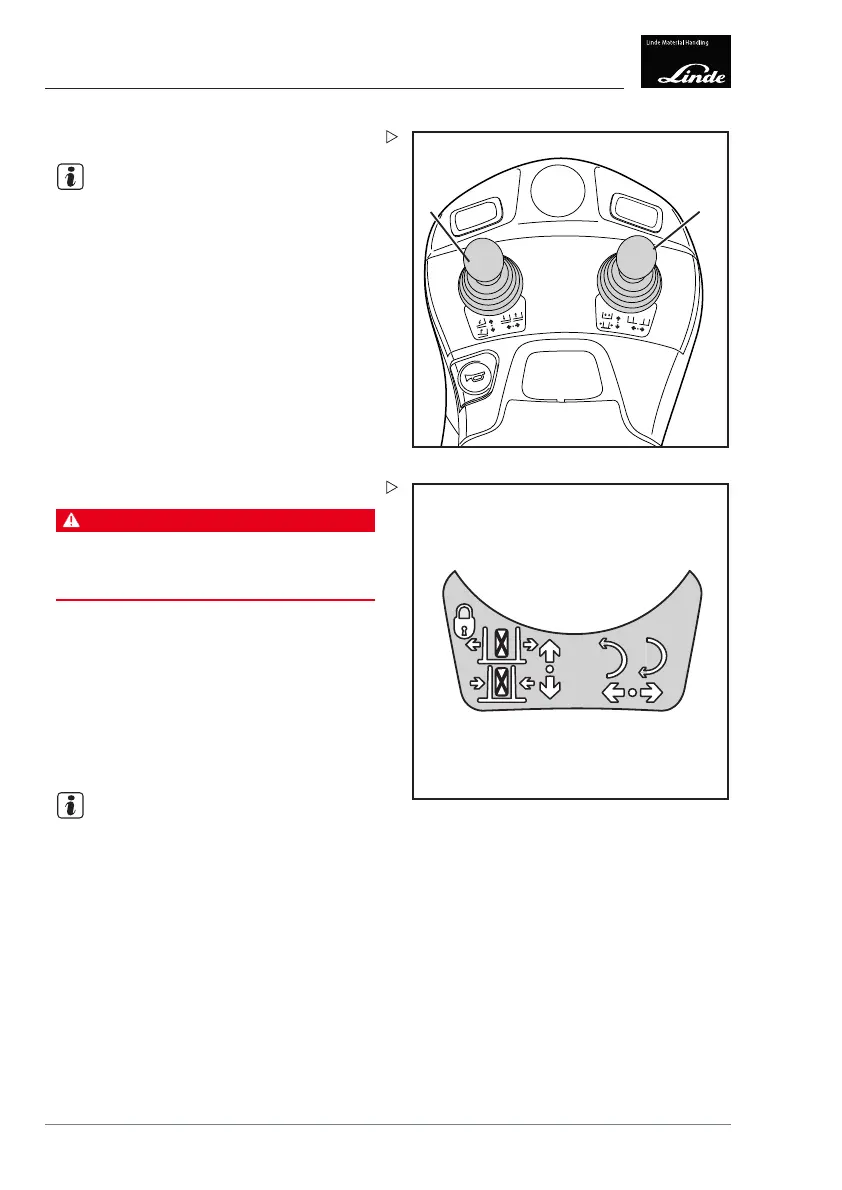

Operating the fork positioner
NOTE
In order to prevent damage, do not activate
the fork prong positioner with a load, or with
the fork arms on the ground. Do not use the
fork prong positioner as a clamp.
Push the joystick (2) forwards.
Fork arms move outwards.
Pull the joystick (2) backwards.
Fork arms move inwards.
e3861475a
Operating the rotator
DANGER
Stability jeopardised.
Only pick up loads such that they can be turned in
the load centre of gravity.
If loads are picked up off-centre, the residual
load capacity may be exceeded when making
a turning movement.
When turning, the actual centre of gravity
of the load must therefore not be more than
100 mm (truck rated capacity below 6300 kg)
or 150 mm (truck rated capacity between
6300 kg and 10,000 kg) outside the pivot point!
NOTE
Ensure t
hat there is sufficient distance when
turning
to prevent damage.
Take note of the switching symbols with
arrows.
132 Operating Instructions – 3888011701 EN – 12/2017
