Safety
2
Emergency lowering for trucks with an elevated driver's compartment
e3861398a
1
1
2
3

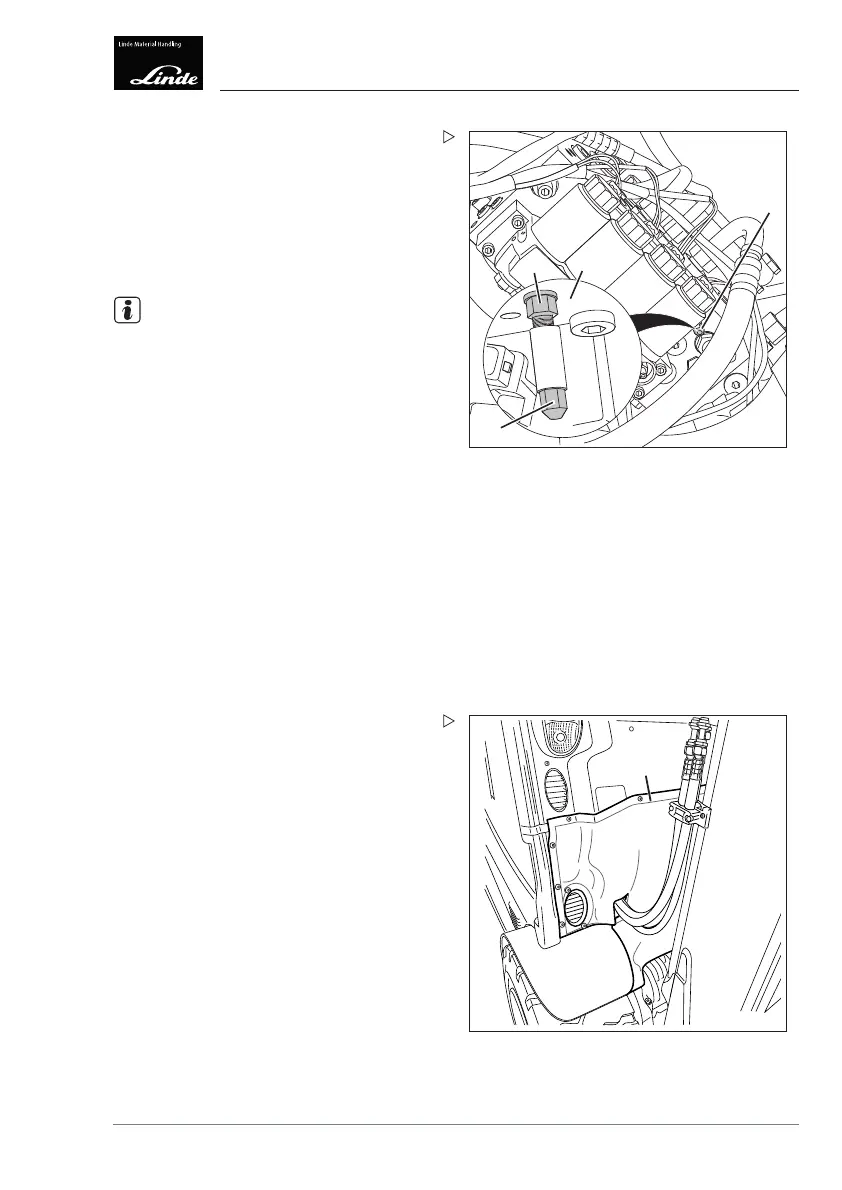

After lowering, turn the emergency lowering
screw (1) in a clockwise direction (tightening
torque 10 Nm). Otherwise it will not be
possible to operate the fork carriage lift
function using the joystick
Retighten the self-locking n
ut (2).
Tightening torque: 9.5 Nm.
NOTE
After emergency lowering has been perfor-
med three times, a new threaded stud with
self-locking nut must be used.
Refit floor plate.
Place rubber mat back on floor plate.
Emergency lowering for trucks
with an elevated driver's
compartment
On trucks with an elevated driver's compart-
ment, emergency lowering is performed using
a threaded rod. Controlled via a lever, this
threaded rod releases the emergency lower-
ing screw with self-locking nut on the control
valve.
e3871477
1
Release the rubber panelling (1) on the
right-hand side and fold it out to the left.
The threaded rod can be accessed via the
opening.
Operating Instructions – 3888011701 EN – 12/2017 23
