Safety

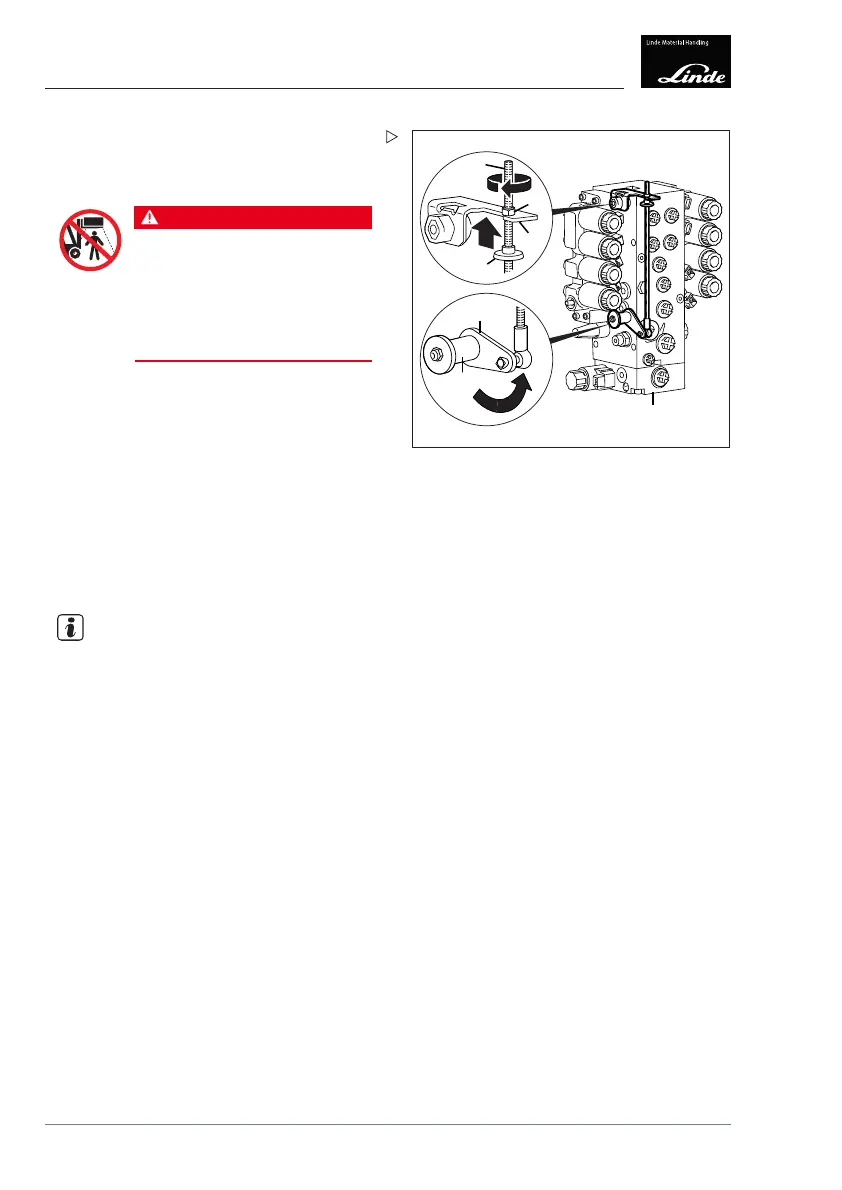

Emergency lowering for trucks with an elevated driver's compartment
1
2
3
4
5
6
7
e3871475
Turn the knurled nut (4) under the support
bracket (3) downwards by about 20 mm.
Remove the bottom plate.
DANGER
Risk of accident when lowering the
fork carriage.
People must not stand near the fork
arms when they are being lowered.
Leave the socket wrench on the nut (2)
to enable lowering to be interrupted at
any time.
Using the socket wrench, slowly turn the
nut (2) clockwise until the fork carriage is
lowered fully.
After lowering, turn the nut (2) anticlock-
wise, and push the threaded rod (1) down-
wards until the lever (5) has returned to the
5 o'clock position.
Tighten the knurled nut (4) by turning it
clockwise to the stop on the support bracket
(3).
NOTE
After emergency
lowering has been perfor-
med three times, a n
ew threaded stud with
self-locking nut m
ust be used.
Contact your service partner.
Install the bottom plate.
24 Operating Instructions – 3888011701 EN – 12/2017
