Service work
5
Self-help
e3871519
Fuses -
Special equipment

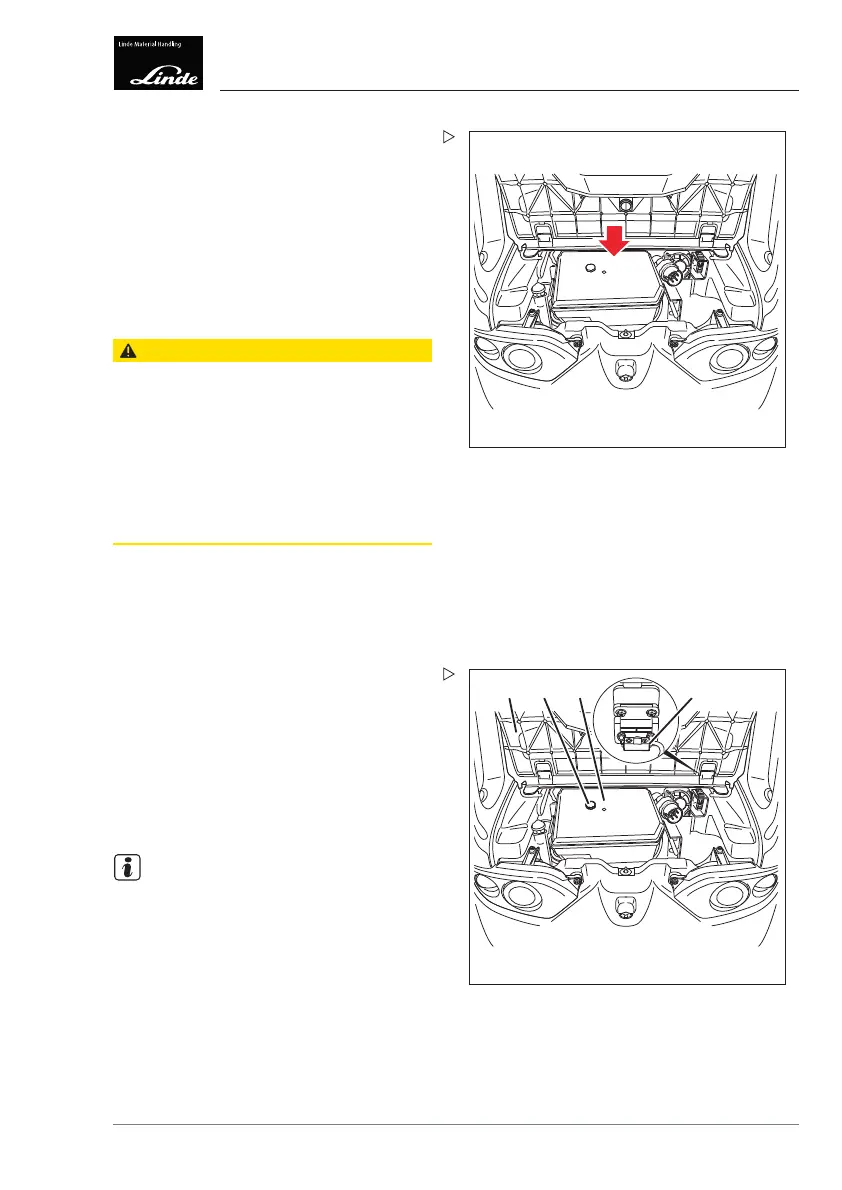

The fuses and relays for the special equipment
are located in a plastic housing (see arrow).
This plastic housing is mounted under the rear
cover on the counterweight.
Checking the fuses -
Replacing if necessary
CAUTION
Risk of fire if automotive fuses are used.
Only use genuine Linde spare fuses with a higher
voltage rating.
Do not use fuses designed for the automotive
industry.
The control current fuses are equipped with a
special quartz sand filling. They are designed for a
higher voltage range.
Contact your service partner.
Switch off the truck.
Open the battery hood.
Disconnect the battery male connector from
the battery female connector.
3
4
2
e3871194
1
Open the rear cover (1).
Turn the star handle (2) in an anti-clockwise
direction to loosen it and undo it.
Remove the cover (3) from the plastic
housing.
Check the fuses.
Change the defective fuses.
NOTE
On trucks with an integrated charger or with
"active ventilation", the position of the rear
cover is monitored by a sensor (4). If the rear
cover is opened, driving functions and lifting
functions are deactivated.
