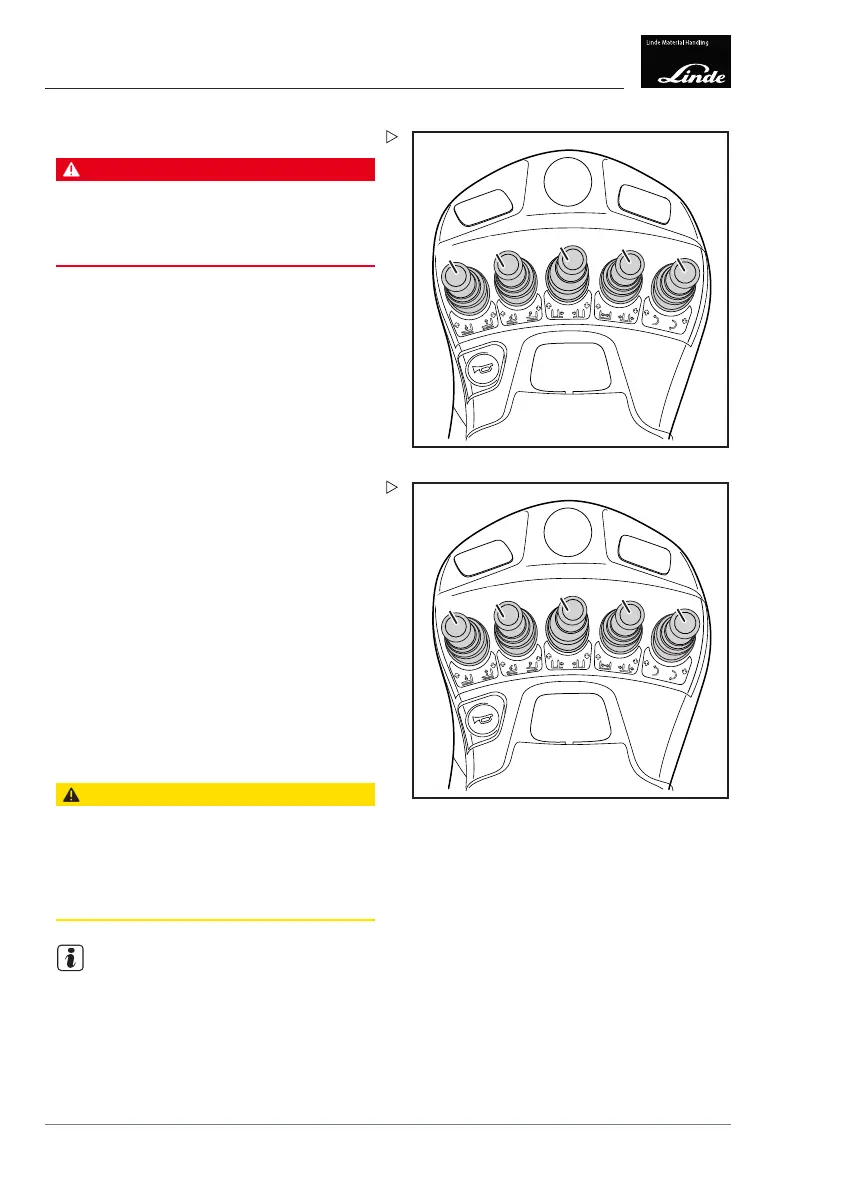

Lifting the fork carriage
DANGER
When lifting the fork arms, t
here is an increased risk
of falling and crushing.
For this reason, do not step
ontotheraisedfork
arms.
Pull the joystick (1) bac
kwards.
Lowering the fork carri
age
Push the joystick (1) forwards.
1
2
3
4
5
e3861545a
Tilting the lift mast forwards
Push the joystick (2) forwards.
Tilting the lift mast back
Pull the joyst
ick (2) backwards.
Operating the
attachments
Attachments can be fitted to the truck as
special equipment (sideshift, fork prong
positioner, rotator, clamp etc.). Observe the
working pressure and operating instructions
for the attachment. Additional joysticks are
fitted for operating these attachments.
CAUTION
Attachments alter the load capacity and stability of
the truck.
Attachments that are not supplied with the truck
may only be used if the service partner has confir-
med that the arrangement in terms of load capacity
and stability ensures safe operation.
NOTE
The m
ethods of attachment operation descri-
bed her
e are examples. The configuration
of the j
oystick may vary depending on your
truck's e
quipment.
