Operation
4
Workingwithaload
•
Working with loads with a large centre of
gravity distance
•
Transporting loads in a wind force of 6 or
more
In the case of conversions, the
new load
capacity of the truck must be de
termined and
the load capacity diagram mu
st be changed
as necessary.
Contact your service partner.

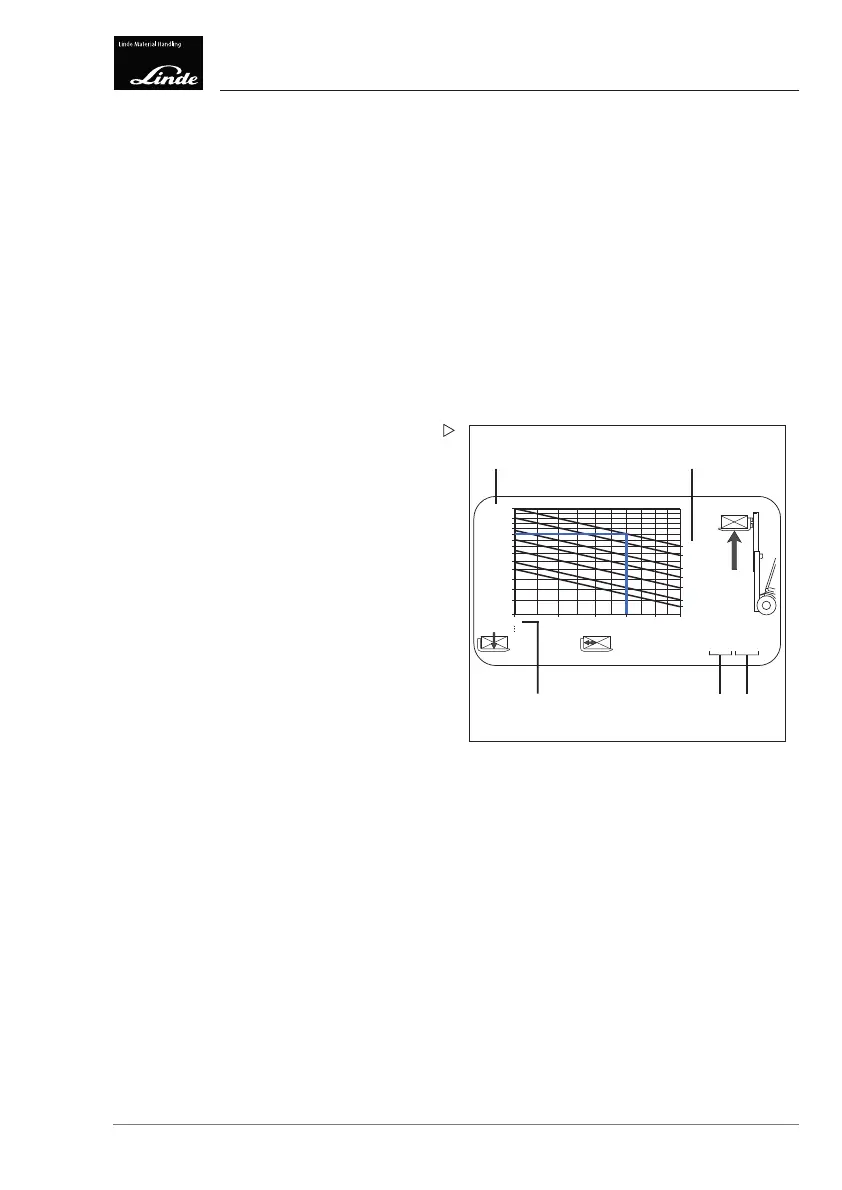

The maximum permissible load is determined
by the distance between the load centre of
gravity and the back of the fork arms, and the
lift height.
e3871492
1800 kg
1700 kg
1600 kg
1500 kg
1400 kg
1300 kg
2000 kg
1100 kg
1000 kg
900 kg
800 kg
700 kg
600 kg
500
400
600 700 800 900 1000 mm
7000 mm
6900 mm
6700 mm
6500 mm
6300 mm
6000 mm
4700 mm
1200 kg
387(E20) + 1522/1523
1 2
345
Example:
Load centre of gravity distance: 800 mm
Load height to be lifted: 4700 mm
Traceaverticallinefr
om a load distance
of 800 mm to its point of i
ntersection with
the line for a lift heigh
t of 4700 mm.
Read off the maximum permissible load to
the left of the point of intersection with the
horizontal line.
The maximum load in this example is 1500 kg.
Other lift heights a
nd centre of gravity dis-
tances must be handl
ed accordingly. The
determined values
refer to both fork arms and
to evenly distribu
ted loads.
Operating Instructions – 3888011701 EN – 12/2017 155
