Operation
Drive batteries
1 2 3
e3871429

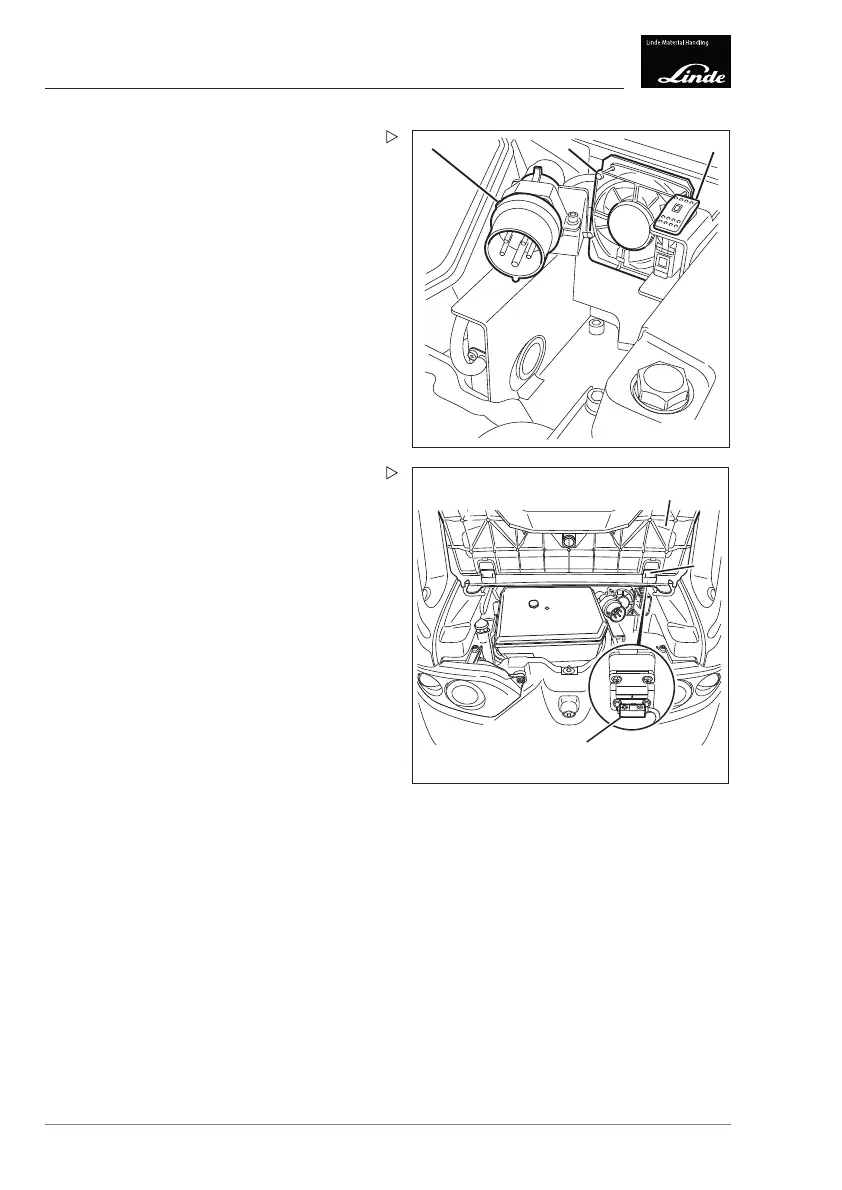

A 400 V/16 A CEE plug (1), a fan (2) and a
push button (3) are located under the rear
cover.
The battery charger directly
activates the
charging indicator lights in
the display unit.
A further component of the integrated charger
system is a temperature sensor in the battery
tray.
The push button (3) functions as a start button
for the charging process when batteries are
deeply discharged.
Thepushbutton(3)canalso
be used to
interrupt the charging pro
cess if necessary.
2
e3871430
3
1
A sensor (3) on the h
inge (2) monitors the
position of the rea
r cover (1). If the rear cover
is opened, all driv
ing functions and lifting
functions are deac
tivated. This prevents the
truck from being pu
t into operation during the
charging process
.
