4
Operation
Drive batteries
1
e3871437

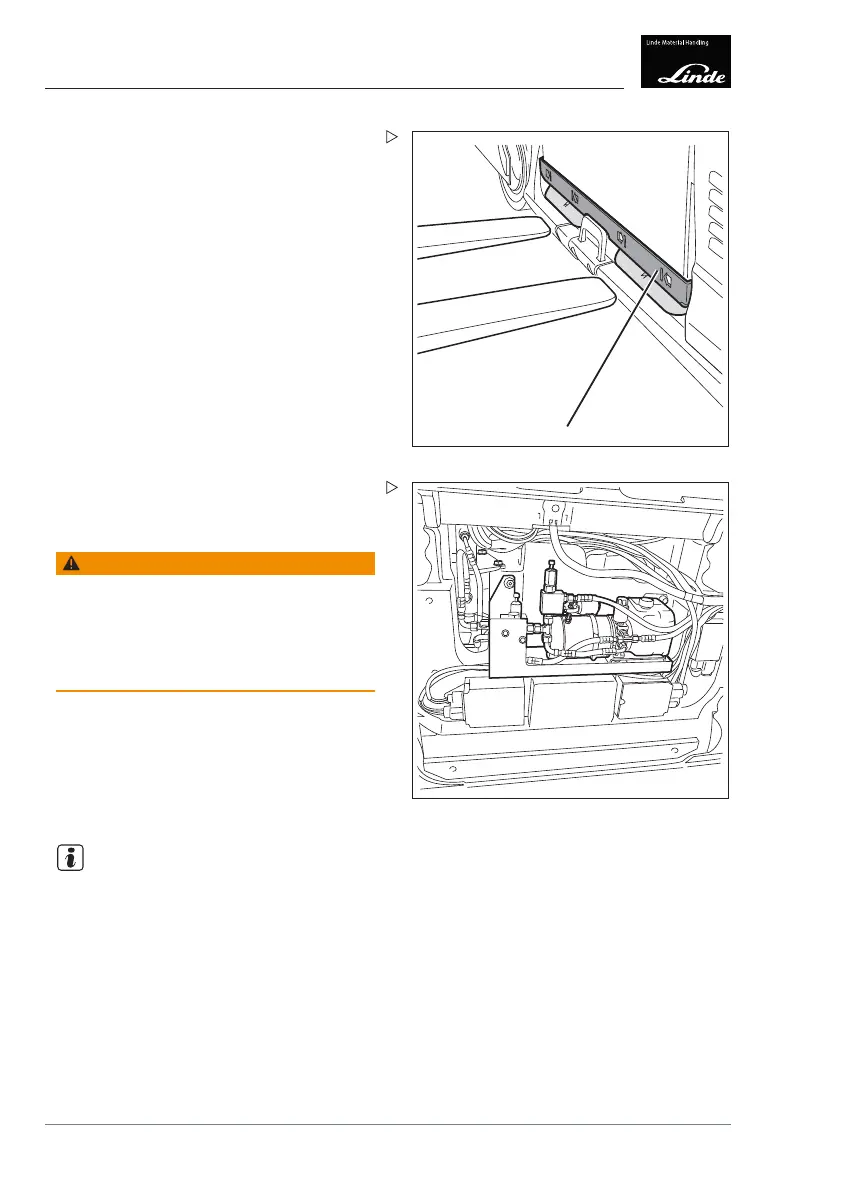

Drive the truck until the fork arms are
positioned underneath the battery support
(1).
Raise the battery until the ba
ttery support
feet are off the floor.
Drive out of the battery compartment to
remove the battery.
Set down the battery in a suitable place.
e3871449
Replacing the battery using a lateral
hydraulic battery carrier
(special equipment)
WARNING
Risk of crushing and risk of accident when ejecting
and retracting the battery.
When ejecting and retracting the battery, ensure
that no one is in the area surrounding the battery
compartment (observe decal information (3) on the
battery support).
The hydraulic power unit for the battery carrier
is attached to the counterweight behind the
battery compartment.
When a push button is actuated, the battery
is ejected over halfway out (60%) by a reach
cylinder.
NOTE
Truckswithahy
draulic battery carrier feature
asteeringaxle
fitted with a locking cylinder,
which prevents
the steering axle from tipping
when the battery i
s ejected. When the push
button is actuated
, the locking cylinder ex-
tends first, then th
e battery is ejected.
184 Operating Instructions – 3888011701 EN – 12/2017
