Operation
4
Operation
1
2
3
4
5
e3861545a

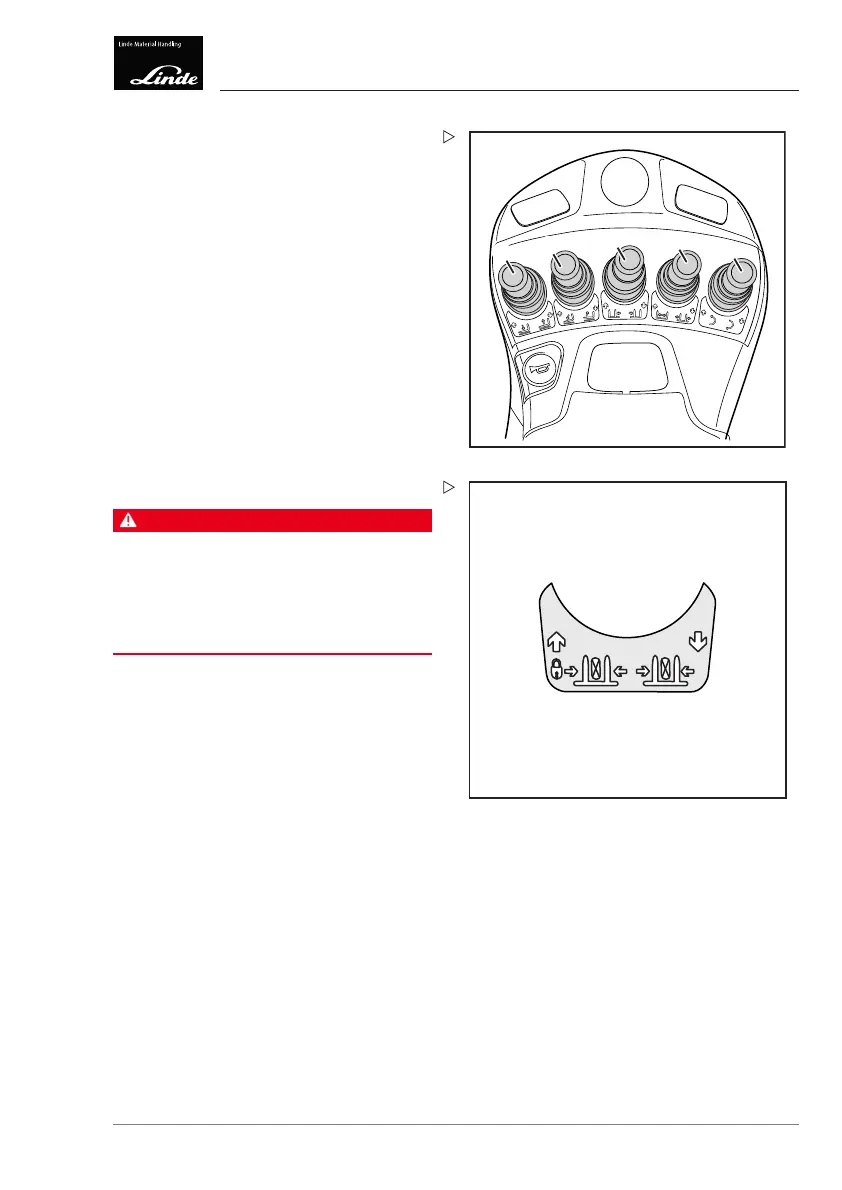

Push the joystick (5) forwards.
The rotator moves anti-clock
wise.
Pull the joystick (5) backwards.
The rotator moves clockwise.
e3861481a
Operating the clamp
DANGER
Increased risk of accident from a falling load.
For attachments that hold a load by exerting pres-
sure on it (e.g. a bale clamp), a lockable joystick
must be used.
If your truck is not fitted with this equipment, please
contact your service partner.
Take note of the switching symbols with
arrows.
Operating Instructions – 3888011701 EN – 12/2017 139
