Operation
Operation
Contact your service partner.
The following parameters can be program-
med:
• Range of the sensor between 2 m and 24 m
• Sensitivity of the sensor: At a
higher
sensitivity, smaller objects
are detected.
• Delay time (entry: up to 3 s; exit: up to 0.75
s)
Contact your service partner.
OUTPUT 2 OUTPUT 1
SIGNAL POWER
1
2
3
4
e3861541

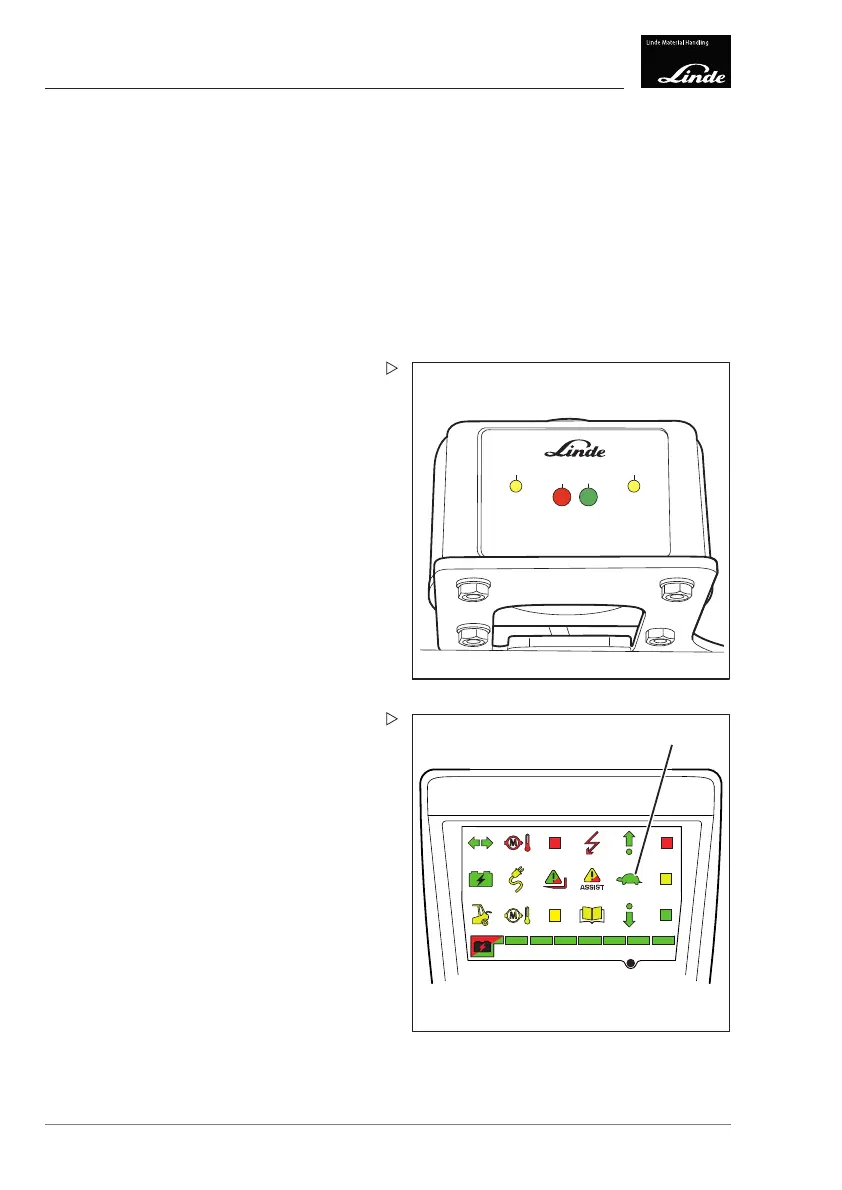

LED indicators on the radar sensor
If the supply voltage is pre
sent, the green
"Power" LED (2) illumina
tes.
If an object is detected by the sensor, the red
"Signal" LED (3) flashes depending on the
signal strength of the radar beam.
If no object is detected by the sensor, the
yellow "Output" LEDs (1, 4) illuminate.
1
Display_e0049a
Indicator light in display unit
When a reducti
on in the driving speed is
activated, th
e green indicator light (1) is
illuminated i
n the display unit.
150 Operating Instructions – 3888011701 EN – 12/2017
