Operation
4
Loading / transporting
e3871644
1
2
34
5
6
7

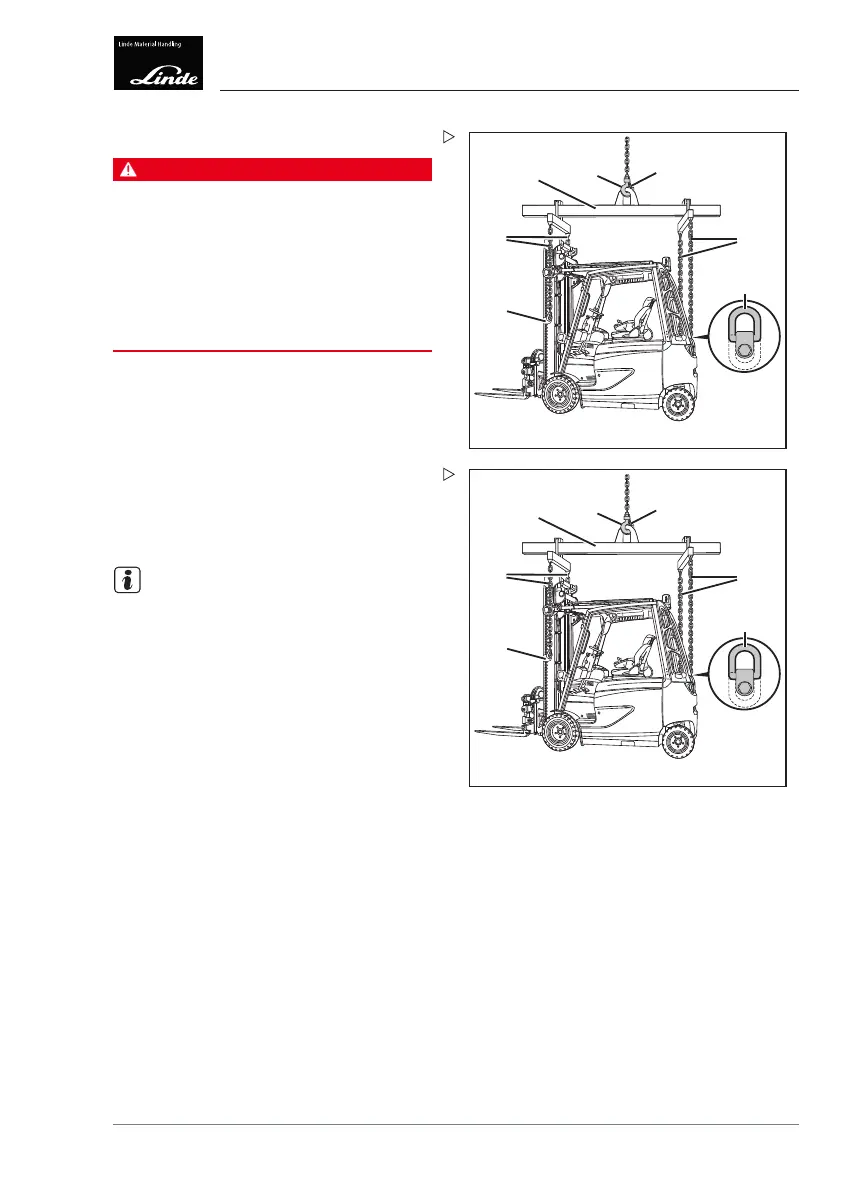

Crane loading with lifting eyes
DANGER
Risk of accident or danger to
life due to the lifting
eyes breaking off!
Crane loading using liftin
geyes(1,7)maybe
carried out only using the
appropriate lifting gear
(3), whereby the chains
(2,6)leadupverticallyfrom
the lifting eyes (1, 7).
To avoid an unequal loa
d distribution, a compen-
sating device on the li
fting gear is essential, e.g. a
levelling rocker.
Position the crane wi
th lifting gear (3) above
the truck.
Attach chains (6) to the lifting eyes (7) on
the counterweight.
e3871644
1
2
34
5
6
7
Attach chains (2) to the lifting eyes (1) on
the lift mast.
Make sure that the safety locks are closed,
e.g. safety lock (5) on crane hook (4).
NOTE
When lifting,
the lifting gear must not come
into contact w
ith the overhead guard or any
attachments.
Adjust the lifting gear (3) to the length and
width of the truck and align the lifting gear
above the centre of gravity of the truck.
Perform a test lift with care.
The truck mus
t be horizontal when sus-
pended.
Operating Instructions – 3888011701 EN – 12/2017 205
