Service work
5
Operating devices
Display_e0053b
10:30
03.03.2015
4
20
h
min
EFF

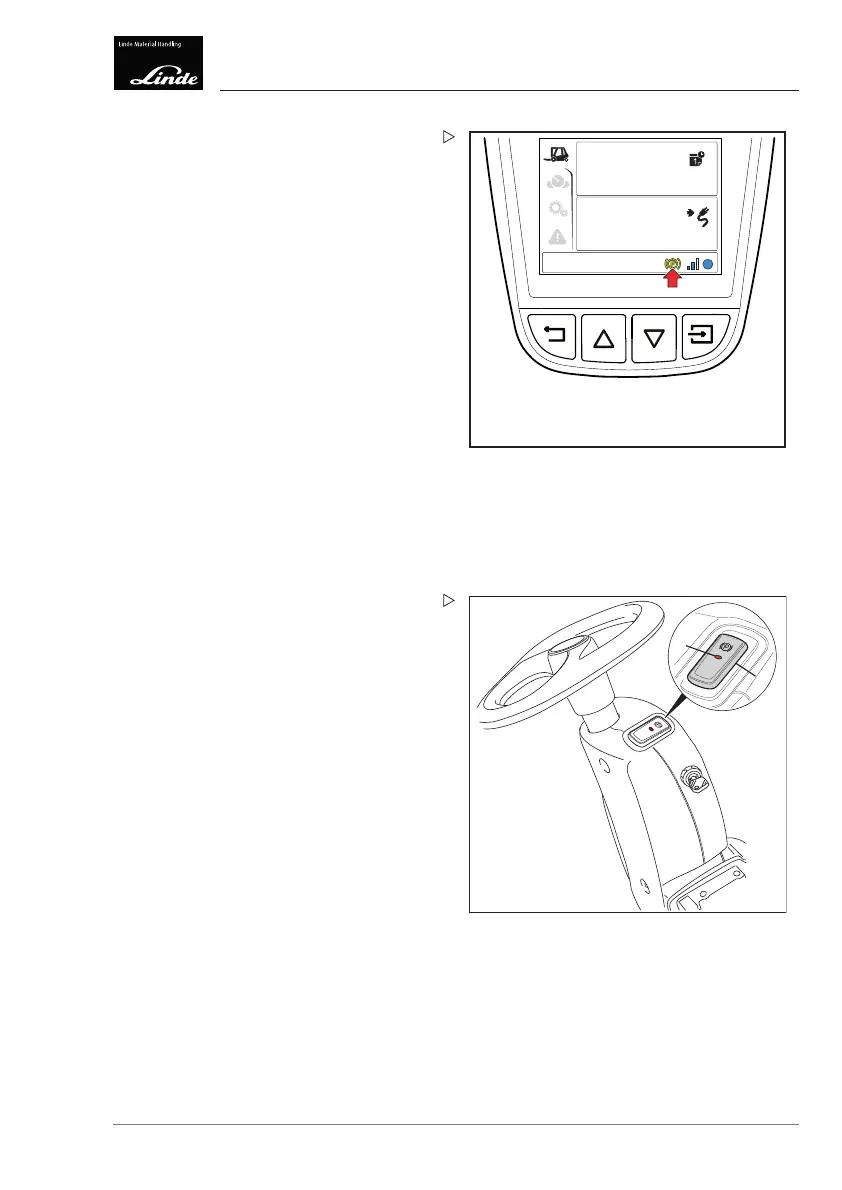

Checking the automatic brake for correct
function
In the quiescent state, the truck is braked by
the automatic brake. As an indication that the
truck has been braked by the automatic brake,
the "Parking brake activated" symbol (see
arrow) flashes in the display unit.
Actuate the accelerator pedal (2).
The brake is released and the "Parking brake
activated" symbol in the display unit goes out.
Trucks carrying the maximum permissible
lift load must not be driven on gradients
above 10%.
Remove your foot from the accelerator
pedal (2).
If the truck is braked to a standstill, the auto-
matic brake is activated.
The "Parking brake activated" symbol (see
arrow) flashes in the display unit.
e3871503a
1
2
Checking the manual parking brake for
correct function
Actuate the switch (1).
The red LED (2) in the switch (1) lights up.
The "Parking brake activated" symbol (see
arrow) lights up continuously in the display
unit.
The manual parking brake is activated and the
driving functions are blocked.
Deactivate the manual parking brake by
actuating the switch (1).
The red LED (2) in the switch (1) goes out.
Operating Instructions – 3888011701 EN – 12/2017 233
