Service work
5
Load lift system
X
e3871560

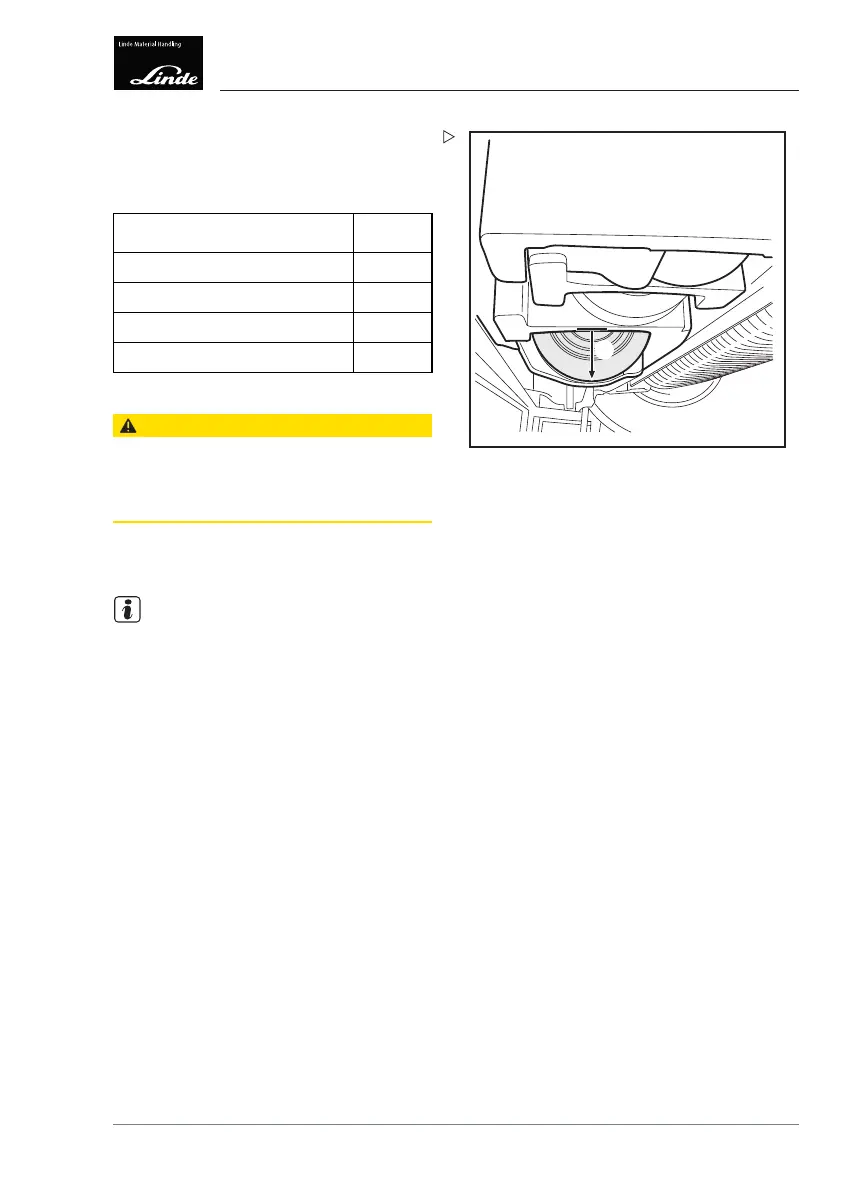

The lower guide roller of the fork carriage must
not protrude beyond the guide rail of the inner
lift mast by more than the specific dimension
X.
Lift mast model
Dimen-
sion X
1514 duplex/triplex
27 mm
1515 duplex/triplex
30 mm
1512 duplex/triplex
31 mm
1523 duplex/triplex
35 mm
Tighten counter nut (4) securely.
CAUTION
When extending the lift mast, it must not touch the
end stops.
Fully extend the lift mast and check clearance to
end stops.
Apply chain spray.
NOTE
In the case of industrial trucks that are used in
the food production industry, chain spray must
not be used. Instead, use a low-viscosity oil
approved for use in the food industry.
Apply Linde chain spray to guide surfaces
and chain.
