Equipment --- Section 5
The Executive 2005
223

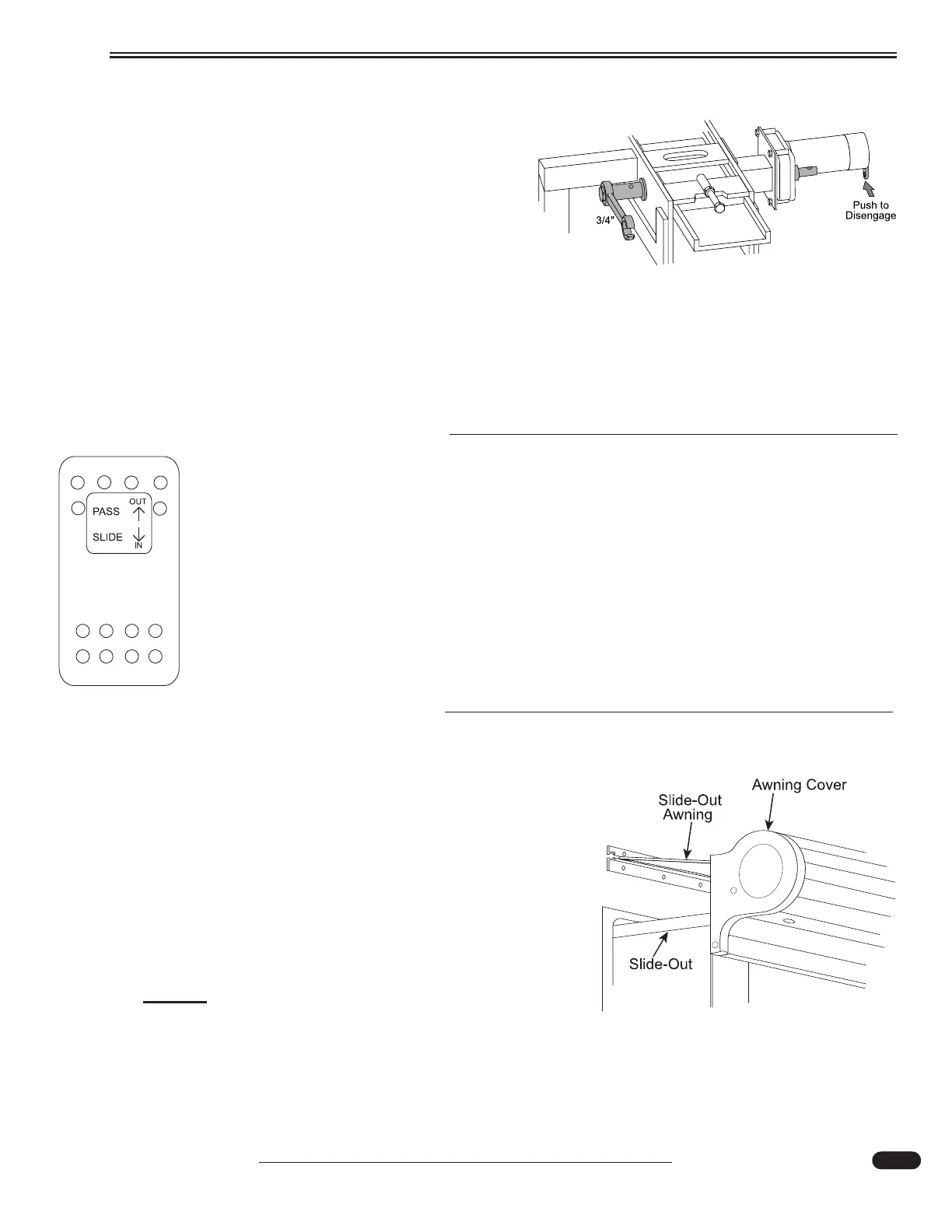

To manually override the Slide-out room:
1. Lift the mattress to gain access to the Slide-out
motor inspection panel.
2. Remove the panel screws to access the motor
and mechanism.
3. If the battery power to the Slide-out motor needs
disconnecting, mark the wire color and location.
4. Remove tie-strap securing brake lever in the
Engage position. Move brake lever to
Disengage.
5. Use a ¾" wrench or socket on drive shaft to retract the room.
6. After room is retracted, place brake lever to Engage.
7. Take the motorhome to an authorized dealer for service.
Wardrobe Slide-out
The wardrobe Slide-out is a hydraulic lateral arm Slide-out that extends and retracts by
using dual-action hydraulic cylinders mounted inside mechanical hardware attached at each
end of the room.
If the Slide-out will not operate with the switch follow the trouble shooting procedures in
the Main Room Slide-out section of this manual. To Move the Slide-out room manually fol-
low the same procedure used to manually retract the Main Room Slide-out.
Slide-out Cover
The Slide-out cover automatically reacts to Slide-out direc-
tion. A fixed edge of the Slide-out cover is installed into an
awning rail, mounted just above the Slide-out. A spring-loaded
roller with special brackets mounts to the Slide-out. In a hard
rain, the cover helps prevent water from penetrating the seal of
the Slide-out.
The Slide-out cover will automatically reach full extension
when the Slide-out room is fully extended.
NOTE:
Water may pool on top of the extended cover.
Water is removed when the cover retracts.
020079e
Mechanism located under the bed access cover.
030924b
080306d
