Chassis Information --- Section 10
The Executive 2005
447
Drag Link
The drag link connects the steering box pitman arm to the steer axle. The movable joint (ball joint)
uses sealed boots to prevent water intrusion. Do not rupture the boot when applying grease. Grease
interval is six months or every 5,000 miles.
NOTE:
It will be necessary to start the motorhome and turn the steering wheel to access fit-
ting(s).
Center Link
The center link is located on the backside of the steer axle. The center link attaches the two wheels
together causing the right front to track with the left front. Greasing interval is every six months or
5,000 miles.

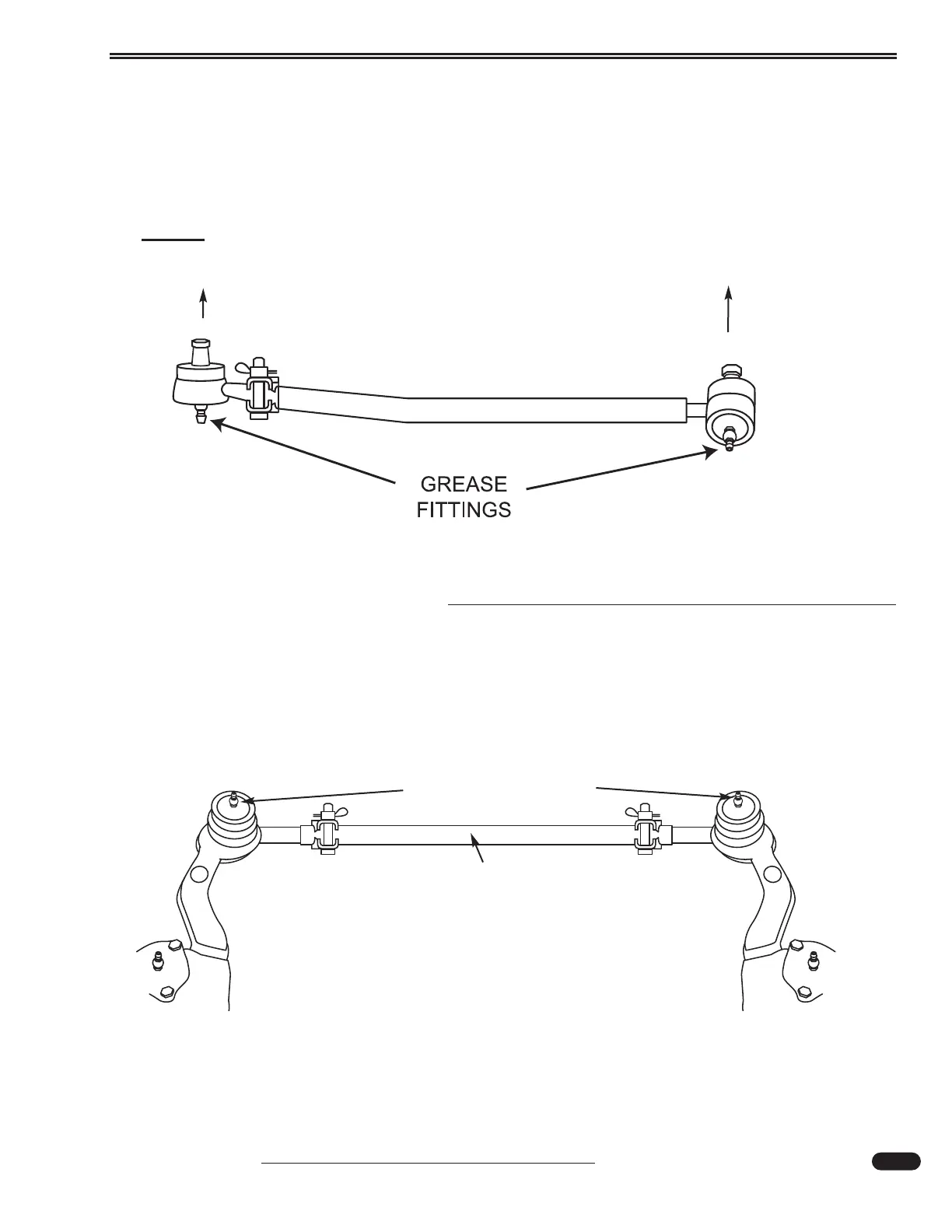

090353b
To Steering Box
To Steering Spindle
GREASE FITTINGS
CENTER LINK
(BOTTOM VIEW)
090354
