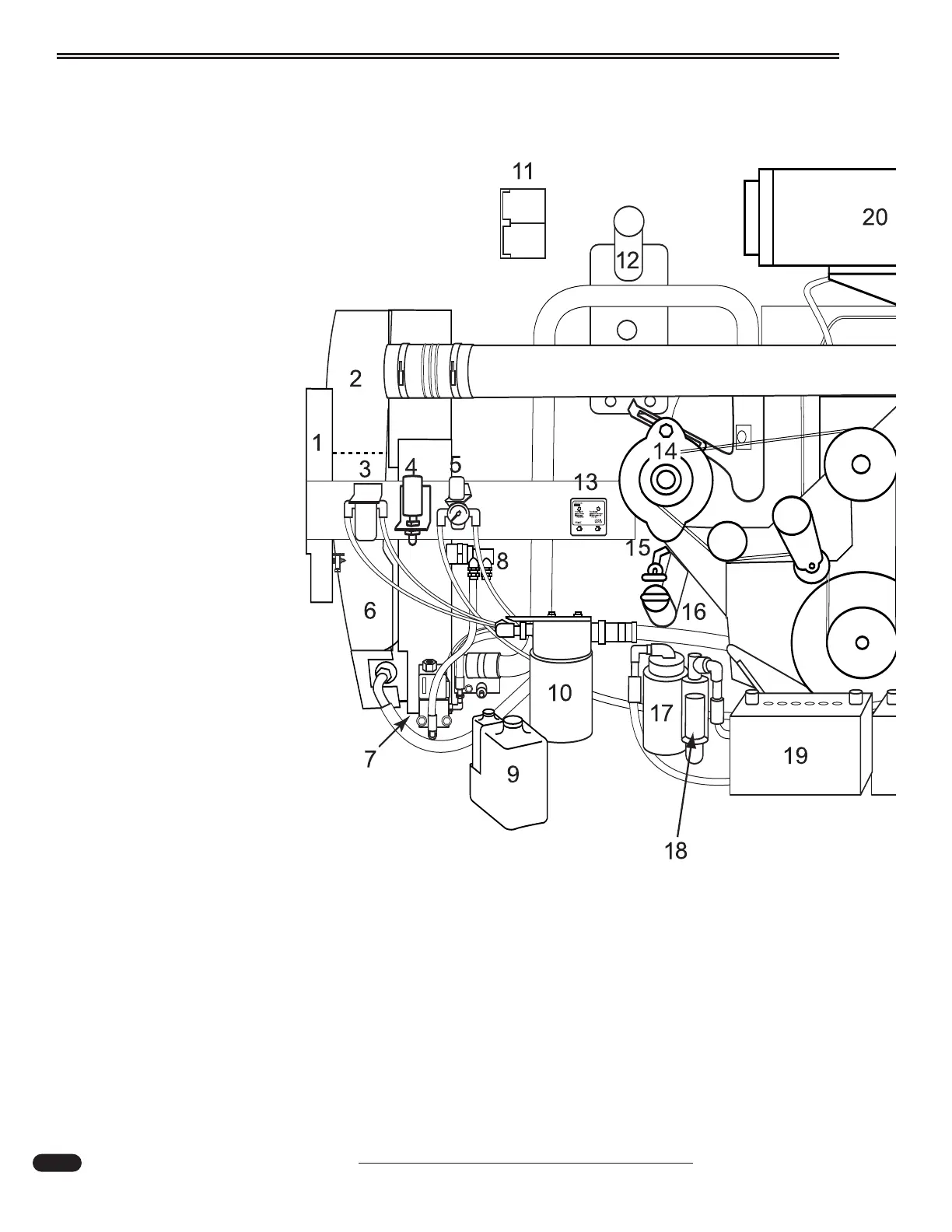

Monaco Executive 2005 - Engine Diagram; Cummins - I.S.M-II Standard

Engine Call out Data:
1. Coolant Reservoir
2. Back-up Alarm
3. Tag Axle Regulator
4. Air Filter Minder
5. Thermovalve (for hydraulic fans)
6. Charge Air Cooler
7. Electric Override Valve (for hydraulic fans)
8. Radiator
9. Primary Fuel Filter
9a. Fuel Control Panel
10. Alternator
11. Engine Oil Dipstick
12. Engine Oil Fill Tube
Section 10 --- Chassis Information
The Executive 2005
472
ENGINE DIAGRAM
Cummins - I.S.M-II Standard
