Section 6 --- Water Systems
The Executive 2005
270

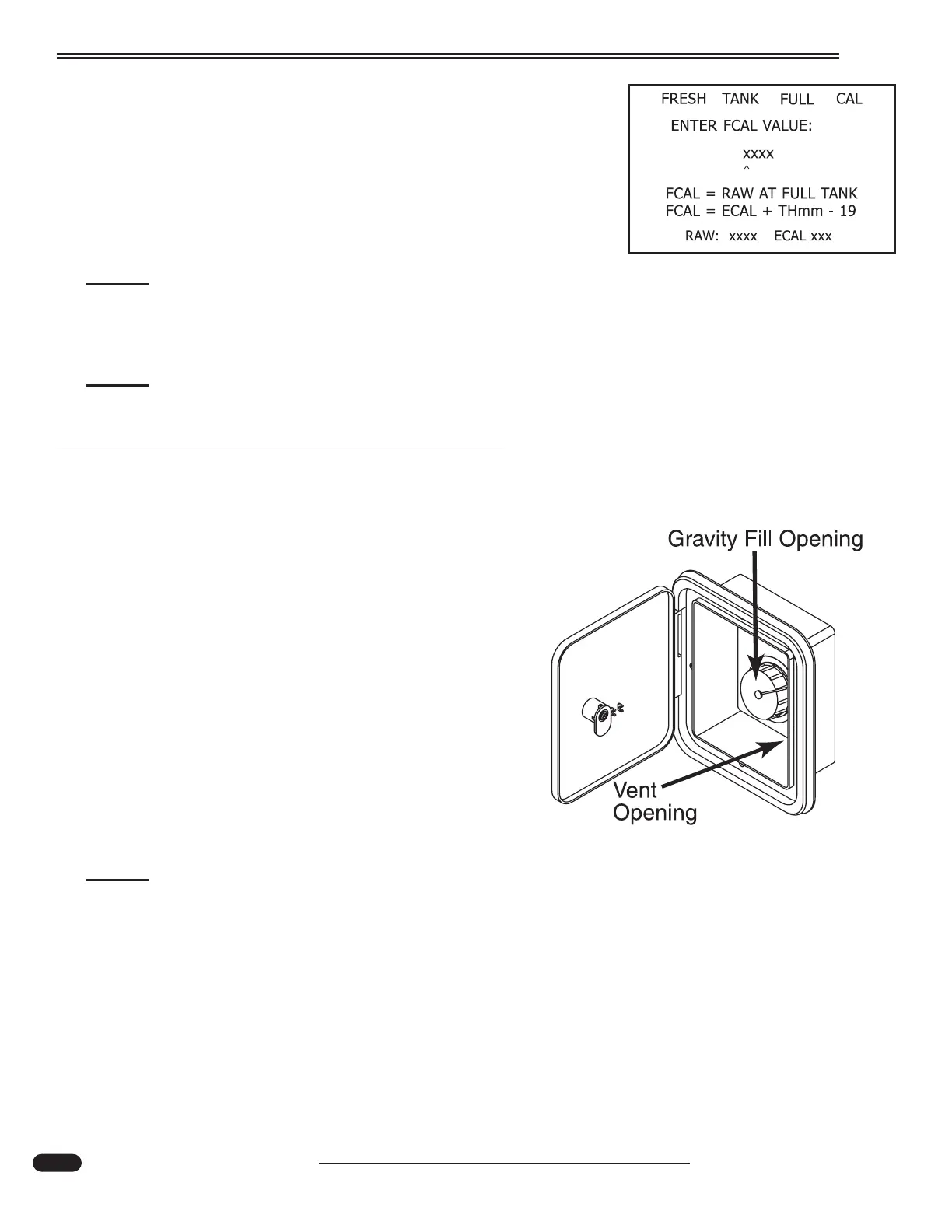

Full Calibration:
Full calibration can be performed at any time. If the tank is full (veri-
fied by visual tank inspection) it is only required to enter the current raw
value. If the tank is not full, it is necessary to measure the tank height
(from centerline of the sensor to the top of the tank, in millimeters). Add
this value to the empty cal value, and subtract 19; then enter this number
for the full calibration value.
NOTE:
The sensors measure the tank in millimeters. Incorrect tank capacities will provide
incorrect readings. Calibration settings are memorized regardless if the system loses
power.
NOTE:
The Aladdin™ system must be in Normal mode to allow the Tank Level Sensors to
memorize calibration settings.
Gravity Fill
The gravity fill inlet allows fluids to be added directly
into the fresh water tank. When dry camping, water can be
poured directly from a container into the fresh water tank.
The gravity fill inlet can be used to pour disinfecting solution
into the fresh water tank or when using potable RV antifreeze
to winterize the fresh water system. Use only potable water
sources, solutions and delivery systems when using the grav-
ity fill inlet.
Filling the Tank:
1. Unscrew fill cap taking care to keep cap and inlet
clean.
2. Insert potable water hose into inlet.
3. Fill tank until water overflows from inlet.
NOTE:
Do not leave the gravity fill inlet unattended when in use.
040393
020218h
Located to the rear of plumbing service center
