Manual Retract Valves

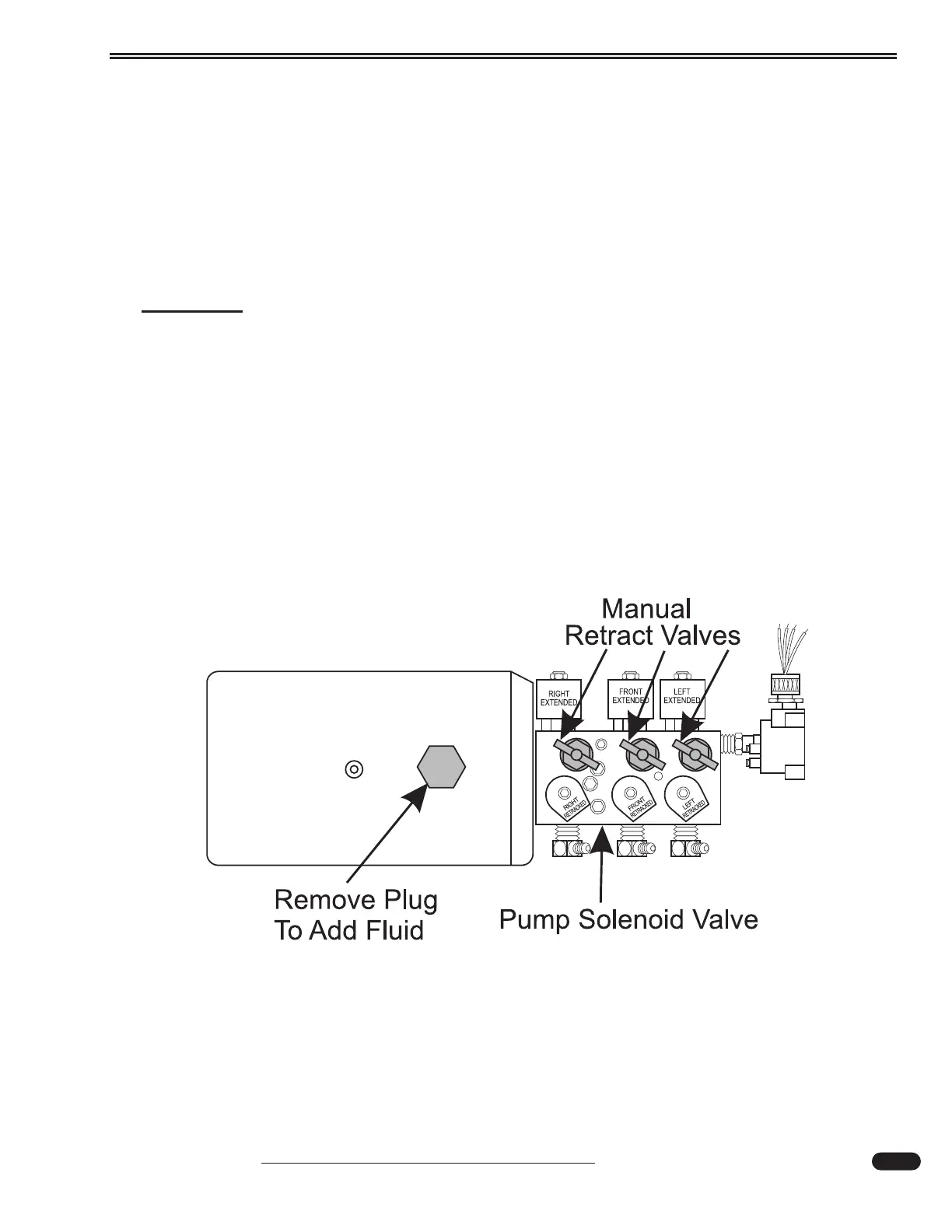

The hydraulic pump is located at the curbside front with easy access through the generator compart-
ment. The manifold and valve assembly is mounted on the pump motor, providing access to the manual
retract valves.
In case of mechanical or electrical failure that would prevent the leveling jacks from automatically
retracting, the motorhome is equipped with manual emergency retract valves. The manual retract system
releases fluid that is under pressure in each jack and allows the fluid to return to the reservoir.
CAUTION:
The motorhome will raise or lower when the manual retract valves are opened. If it
becomes necessary to manually retract the jacks, do not crawl under the
motorhome to access the valves. Confirm there is sufficient clearance so the
valves may be opened safely.
To operate the manual system:
• Turn all three T-handle valves counterclockwise until they stop.
• When the jacks are fully retracted, rotate all the valves fully clockwise. In case one of
the jacks is not holding pressure, one of the manual retract valves may not be fully tight-
ened.
