Section 6 --- Water Systems
The Executive 2005
272
Fresh Tank Fill
• Remove hose plug and install a water pressure regulator to the
water hose.
• Connect the water hose to a City Water hook-up.
• Turn the city water/tank fill valve to the Fresh Water Fill -
Open position.
• Turn on the water supply.
• The water pump should be off.
• The water tank is full when water comes out the tank overflow
pipe located on the curbside of the motorhome. Shut the water
supply off as soon as possible.
NOTE:
When filling the fresh water tank, do not leave the hose unattended. Watch for water
to come out of the overflow located at the curb side of the motorhome in front of the
drive axle. Turn water off before a full blast of water comes out. Use the Aladdin sys-
tem to monitor tank filling.
To Retract the Hose Reel:
• Disconnect the water hose from the faucet. Do not leave water regulator attached to faucet.
• Press the retract switch and guide the hose onto the reel.
• Install plug in hose when not in use.
Maintenance:
When using the hose, look for kinks. Periodically fully extend the hose. Straighten the hose on the
ground. It is important that the water hose remains clean.

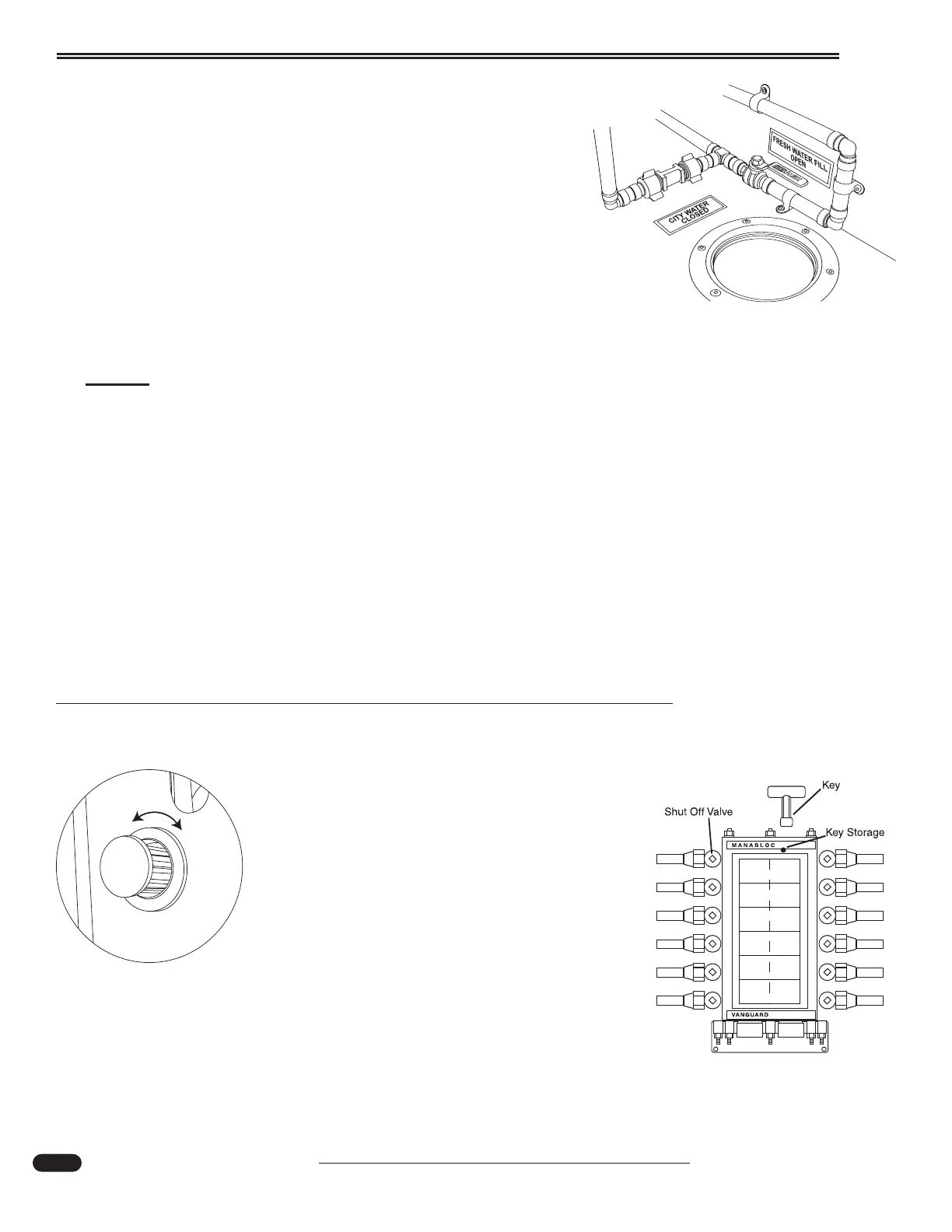

PLUMBING MANIFOLD
The plumbing manifold is located behind a
locking door in a curbside bay. The manifold
separates the main hot and cold lines. The main
hot and cold inputs are divided into the individ-
ual branch lines. Water flows unrestricted with
no hidden fittings located behind walls.
Each faucet or appliance water line may be
turned off. Hot water valves are located on the
left; cold water valves on the right. Use the
provided key to turn on or off a water line.
When the key is horizontal, the water line is
open. Turning the key to the vertical position
shuts that water line off. Each water line is
labeled for easy reference. Snap the key into
the key storage after use.
040429
040527b
040530
Press knob to expose. Turn
clockwise or counter-clockwise
to open manifold door.
Tank Fill/ City Hook-up valve
located in hose reel bay.
