Section 9 --- Electrical Systems - Chassis
The Executive 2005
404
Switches
AIR DUMP (Optional):
Deflates air suspension (Hydraulic Leveling only).
DOCK LTS:
The dock lights switch, will operate all dock lights, including the back-up lights.
The dock lights switch in the bedroom operates all docking lights.
ATC:
Activating the ATC switch allows greater engine torque during an
ATC event.
ALADDIN:
Master reset and storage switch for the
Aladdin System is located in the roadside
overhead compartment.
ALADDIN JOYSTICK:
Used to control Aladdin commands.
BATT BOOST:
The Battery Boost switch is used in the event the motorhome chassis battery has been drained or is
at a low charge level where the engine will not start. This switch momentarily "jumps" the house
batteries to the chassis batteries to assist in starting the engine.
To Use the Switch:
1. Hold the switch down for ten seconds. With the switch held down, turn on the ignition key.
The battery volt gauge on the dash should indicate 12 Volts.
2. If voltage is sufficient continue to hold the switch down and try to start the engine. If the
engine does not start, or voltage is not sufficient, the motorhome may require jump starting.
See Dead Chassis Batteries.
NOTE:
There should be an audible click from the engine compartment when the solenoid
engages.
CAUTION:
The boost switch should not be held for more than 30 seconds. Damage to the boost
solenoid may occur from overheating.
When pressed, the battery boost switch will ground the 12 gauge orange wire from the 1000 Amp
solenoid. A loud clicking noise should be heard when the solenoid engages. If the boost solenoid is
inactive, locate the molex plug and start the troubleshooting process by removing the cover on the
dash. It may be necessary to remove the wire from the battery boost solenoid and perform a continuity
check from the front to the rear of the motorhome.

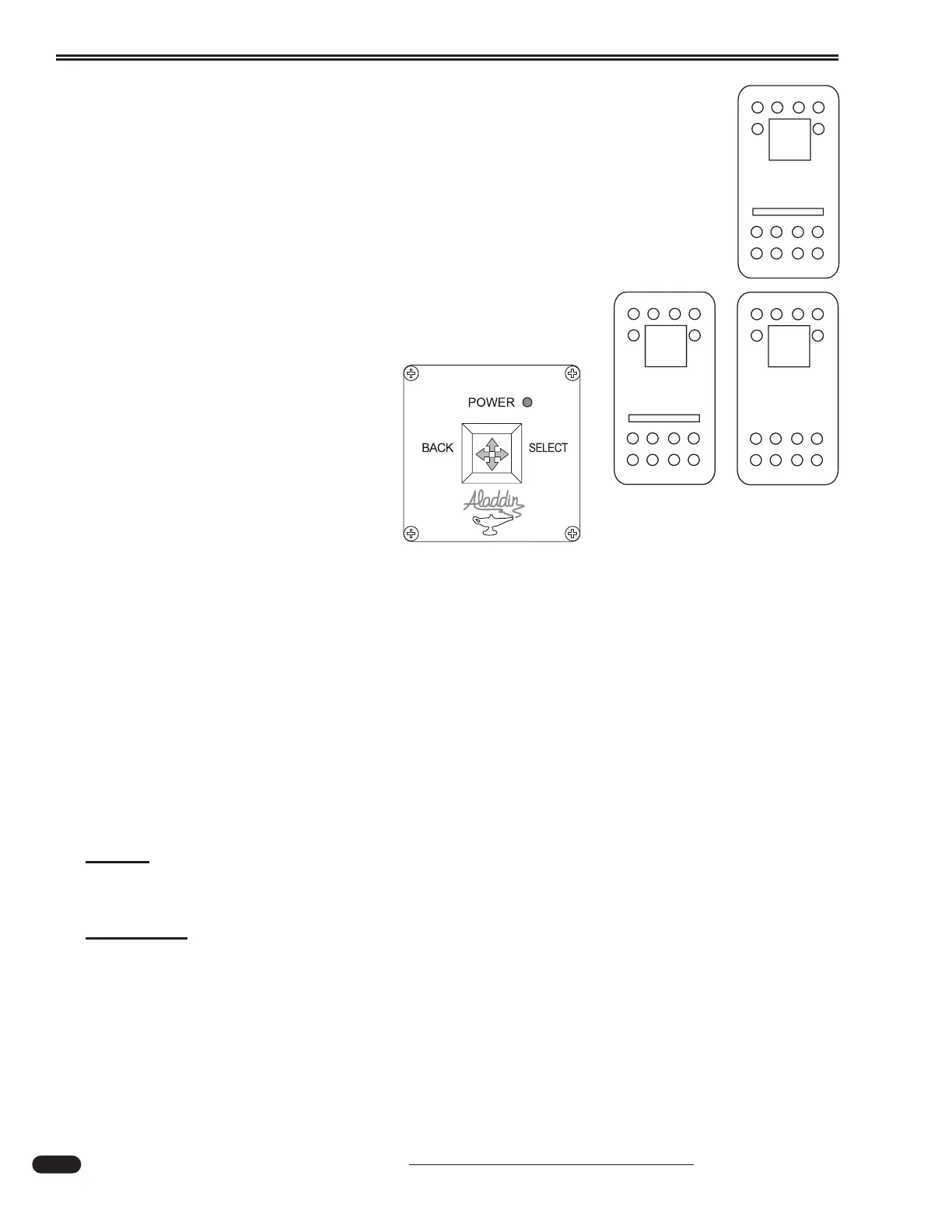

Aladdin Joystick
080377d
Typical Switch
Lighted
DOCK
LTS
Typical Switch Non-
Lighted
