ALADDIN™ ENGINE DISPLAY
The Aladdin System will display engine and transmission statistics at a quick
glance. Four additional engine and transmission screens can be accessed. These
screens can be set to a rolling display, or use the joystick to pick an individual
screen.
NOTE:
The backup camera and engine/transmission screens cannot simulta-
neously display.
To Display Engine and Transmission Status:
Use the joystick to enter the Engine/Trans Status screen from the Main menu. After entering the
Engine/Trans Status screen, move the joystick right for a rolling display of the four sub-screens. Move
the joystick up/down to select the desired sub-screen.

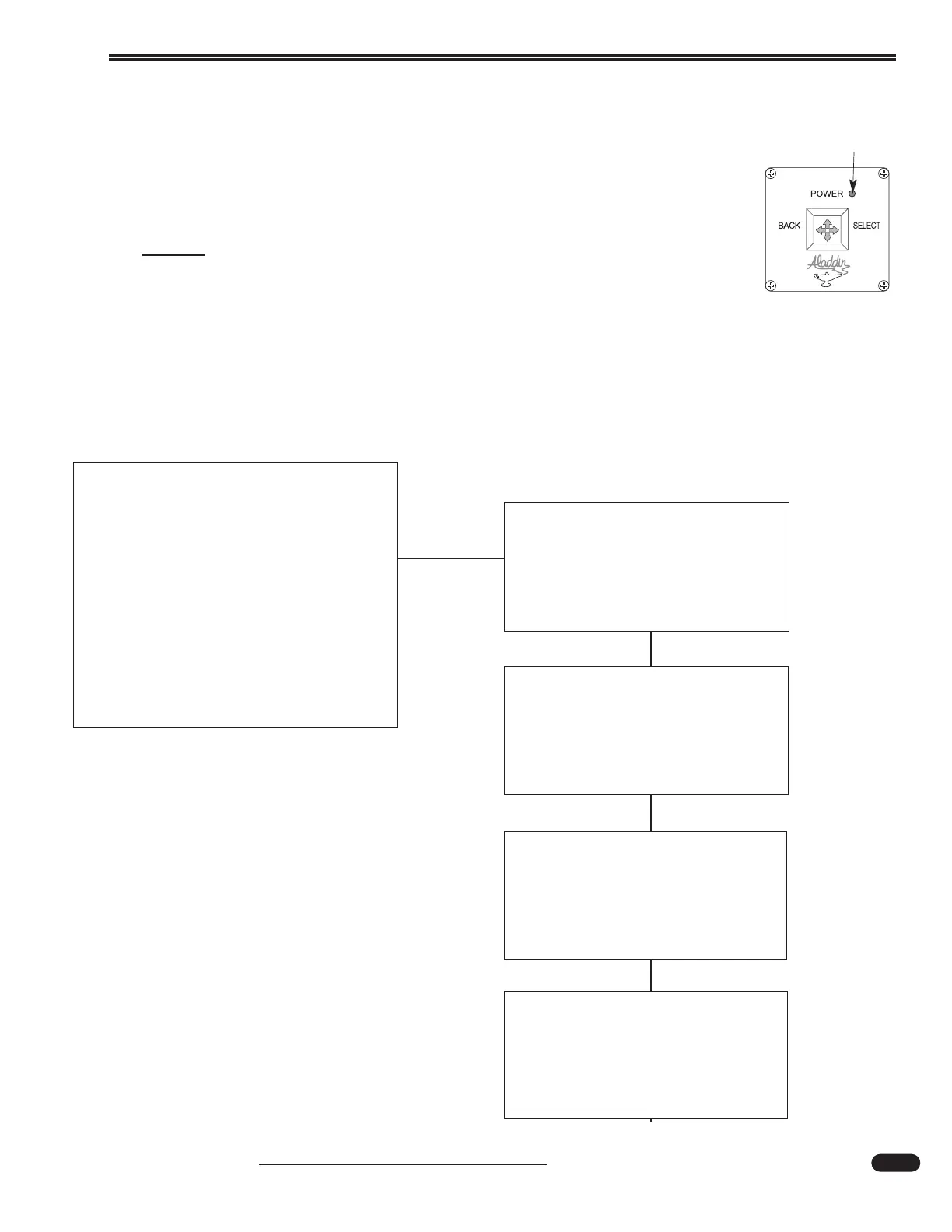

080377d
L.E.D.
STATUS
ENGINE TRANS
0.0
855
83
32
55
0.3
0.0
SE
MPH
RPM
F TEMP
PCT LOAD
PSI OIL
MPG
CRUISE OFF
HEADING
N
NC
70
GEAR SELECT
GEAR ATT
F TEMP
BATTERY
14.0 VDC
11:22 AM
SE HEADING 1:23 AM
PERCENT LOAD
INST FUEL MILEAGE
FUEL RATE
TURBO BOOST PRESS
XXX
XXX
2.7
XXXX
PCT
MPG
GPH
PSI
S HEADING 1:23 AM
ROAD SPEED
ENGINE SPEED
ENGINE COOLANT TEMP
TRANS OIL TEMP
XXX
XXX
XXX
xxx
MPH
RPM
F
F
S HEADING 1:23 AM
ENGINE SPEED
PERCENT LOAD
ENGINE OIL PRESS
TURBO BOOST PRESS
XXX
XXX
XXX
xxx
RPM
PCT
PSI
PSI
SE HEADING 1:23 AM
ENGINE COOLANT TEMP
TRANS OIL TEMP
INTAKE MANIFOLD TEMP
OUTSIDE TEMP
XXX
XXX
XXX
64.4
F
F
F
F
