Section 9 --- Electrical Systems - Chassis
The Executive 2005
408
STEP COVER:
The front door models are equipped with a sliding Step-Well Cover that is extended and retracted
by two switch locations. One switch is located just inside the entry door on the passenger side arm-
rest. The second switch is located on the center console marked “Step Cover.”
NOTE:
Layouts will vary with difference in models and options.
TAG AXLE:
Switch raises and lowers tag axle. In certain situations tag axle may require to be in UP posi-
tion. Raise the tag axle when making sharp turns under 5 mph.
When using tag axle switch:
• Tag axle down, bar light not illuminated.
• Tag axle in up position, bar light illuminates.
NOTE:
DO NOT drive the motorhome over five MPH with the tag axle raised. The manufac-
turer will not be held responsible for any damage that may occur from driving with
the tag axle raised.
DASH AIR CONDITIONER & HEATER CONTROLS
The system is designed to only provide heating,
cooling and defrost for the pilot and co-pilot area.
The system is not capable of heating or cooling the
entire motorhome.
Blower Control Switch:
This switch controls the four speeds of the
blower motor. This is one of the best and most
effective ways of controlling temperature. The
blower will not activate until the Mode Control
Switch is set to any position other than Off.
Temperature Control Switch:
Setting the switch to the Red zone controls an electric water valve regulating the amount of engine
coolant passing through the heating coils in the system. Rotating to the Blue zone sets the cut-in/cut-
out temperature of the air conditioning compressor on the engine.
Mode Control Switch:
This switch directs air flow by opening or closing damper doors. Use the Mode Control Switch to
direct airflow where it is needed to maximize comfort in the cockpit area.
080221

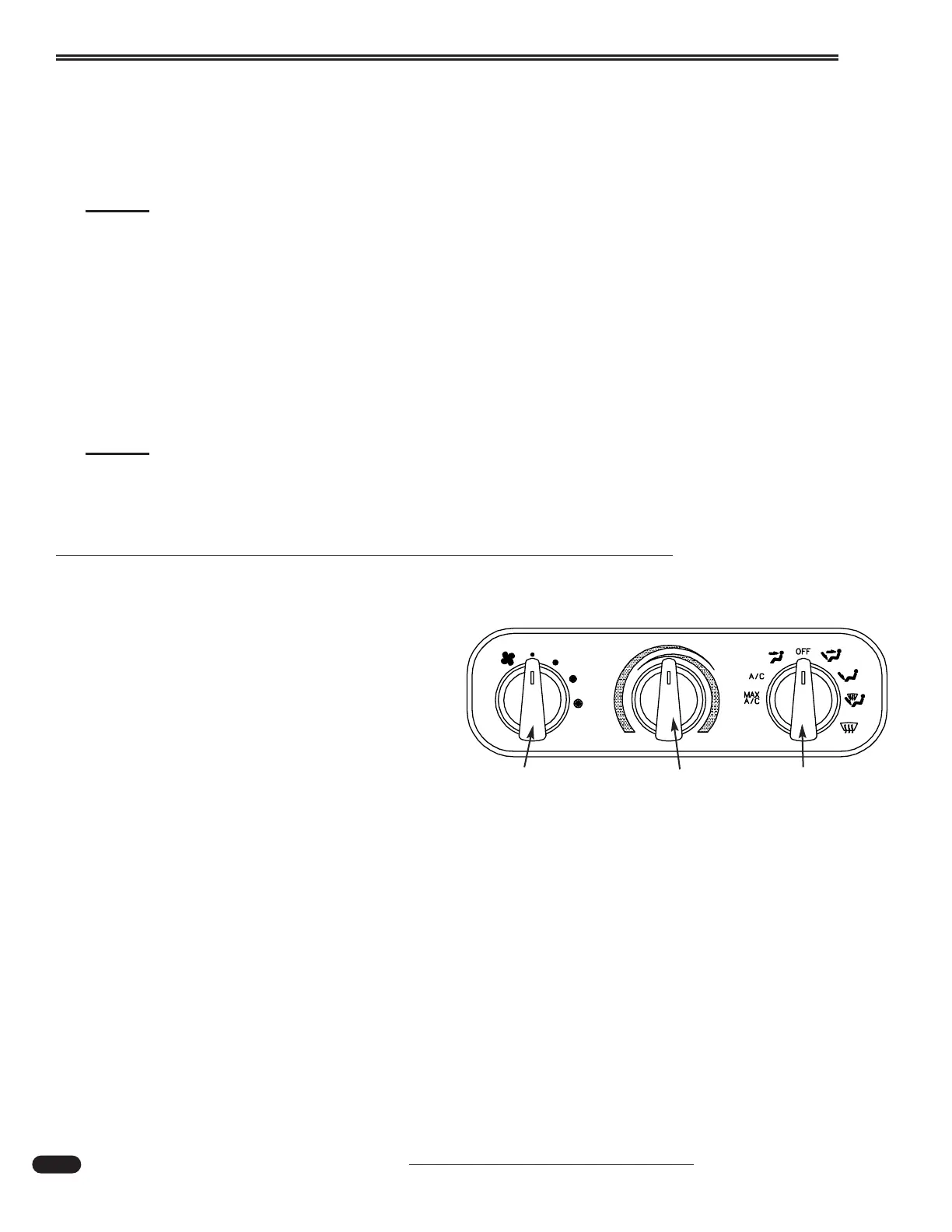

BLOWER CONTROL
TEMPERATURE
CONTROL
MODE
CONTROL
