Electrical Systems - Chassis --- Section 9
The Executive 2005
407

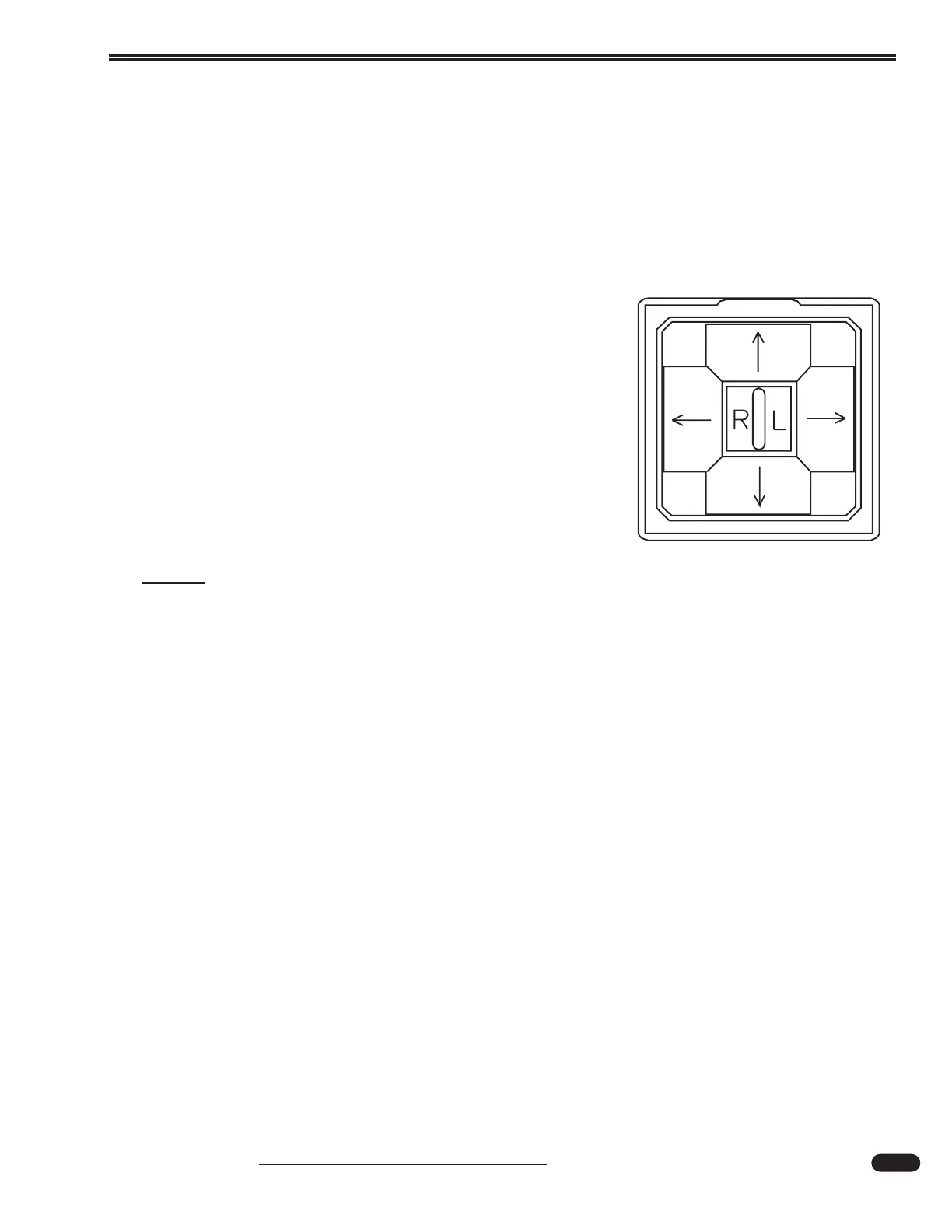

SELECT MIRRORS:
Three-way switch that controls the positions on the mirror.
T (Up): Controls the top mirror.
M (Middle): Controls the center mirror.
B (Down): Controls the lower mirror.
Top Mirror = convex glass.
Middle Mirror = flat glass.
Bottom Mirror = convex glass.
MIRROR ADJUST:
After accepting delivery of the new motorhome it will be nec-
essary to sit in the driver's seat and have the mirrors adjusted
for accurate visibility. Use an Allen wrench to adjust mirror
arm angle for best visibility. Make sure you can see out of
both the driver and the passenger side mirrors before heading
out on the road. Place the selector switch to the desired side.
Use the outside directional ring to set desired angle. Place the
switch in the center position to prevent accidental misadjust-
ment.
NOTE:
Ignition must be in the ON or ACC position.
PASS SHADE:
Operates the Passenger Side power sun visor.
PEDAL IN/OUT:
After sitting in the driver’s seat and making adjustments to the mirrors and steering wheel, use the
Pedal In/Out switch to adjust the brake and throttle pedal to be either closer or farther away. Locate
the switch on the left hand console panel marked Pedal IN/OUT. The switch moves the pedals
inward or outward approximately three inches. If you need to move the pedals inward, just push the
same switch in the opposite direction. When the pedals reach the end of their traveling distance the
motor will stop. Release the switch.
PORCH LIGHT:
Controls porch light.
STEP:
Turns power on or off to step. To leave the step extended when parked, open the door. After the
step extends, turn the switch off.
