Monaco Executive 2005 - Lubrication Maintenance Safety; Steering Components

Chassis Information --- Section 10
The Executive 2005
445
Lubrication Maintenance Safety
The front axle components require periodic lubrication main-
tenance. Chock wheels for safety prior to accessing components
underneath the motorhome.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
Axle Beam
Steering Box
Steering Drive shaft
Universal Joints
Slip Yoke
Ball Joint
Steering Column
Steering Wheel
Steering Spindle
Spindle
Kingpin
Centerlink
Pitman Arm
Drag Link

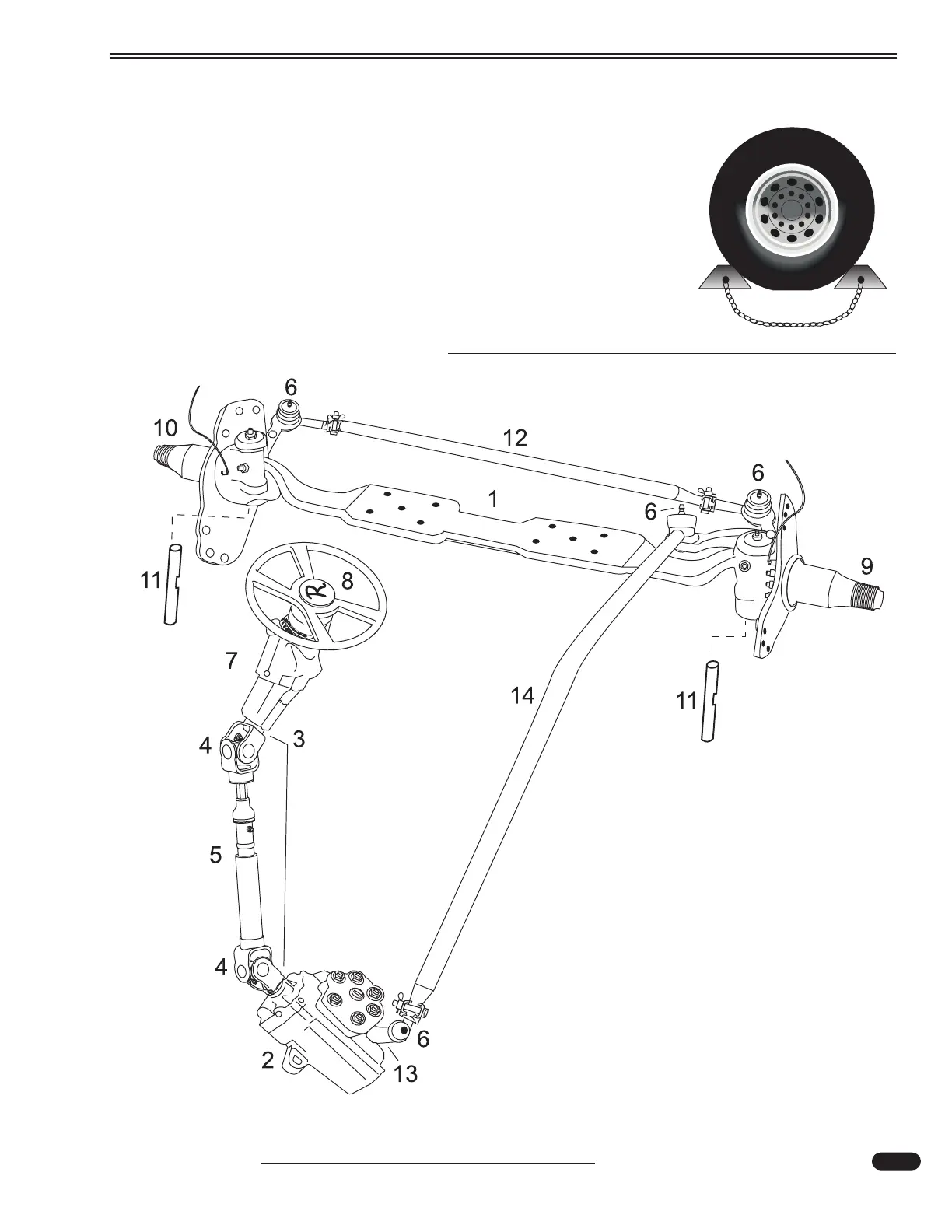

TYPICAL STEERING COMPONENTS
Steering Components.eps
Steering Components
090368B
