Section 8 --- Electrical Systems - House
The Executive 2005
370
The run time figure will vary greatly with the actual state of charge of the battery bank when the
discharge process begins. Ambient temperature, combined with other working loads, such as lights and
parasitic loads applied to batteries, affect run times. Calculating the exact run time is not precise
due to all the variables and equations involved; however, an approximate time figure can be obtained.
Proper battery maintenance and charge cycles affect battery performance. Observe the battery condition
with hydrometer and voltage readings. Use only distilled water when filling batteries. To achieve
the highest quality of battery performance and longevity maintain the batteries in their proper operat-
ing range.
SOLAR PANEL (Optional)
The solar power system consists of one solar
panel with mounts, a Combiner box and a charge
controller that can handle up to five 100 watt solar
panels.
Solar Panel:
The solar panel is a laser-grooved, buried-grid panel that is capable of delivering about five
amps of charge per hour, per panel, in full sunlight. One 100 watt solar panel delivers enough power to
offset the normal day-to-day drain on batteries caused by various parasitic electrical loads, such as
transmission memories, alarm systems, natural self-discharge of batteries and other like items. Adding
a second, third or more solar panels (up to five, depending upon needs and electrical consumption) can
replace what is drawn out of the batteries from the operation of lights, water pumps, inverters, etc.,
while dry camping.
NOTE:
The solar panel needs to be cleaned monthly. The solar panel may need to be cleaned
more frequently depending on weather conditions.
Combiner Box:
The Combiner Box, located on the side of the refrigerator vent on the roof, has four standard
"knock outs" to allow for installation of additional solar panels.

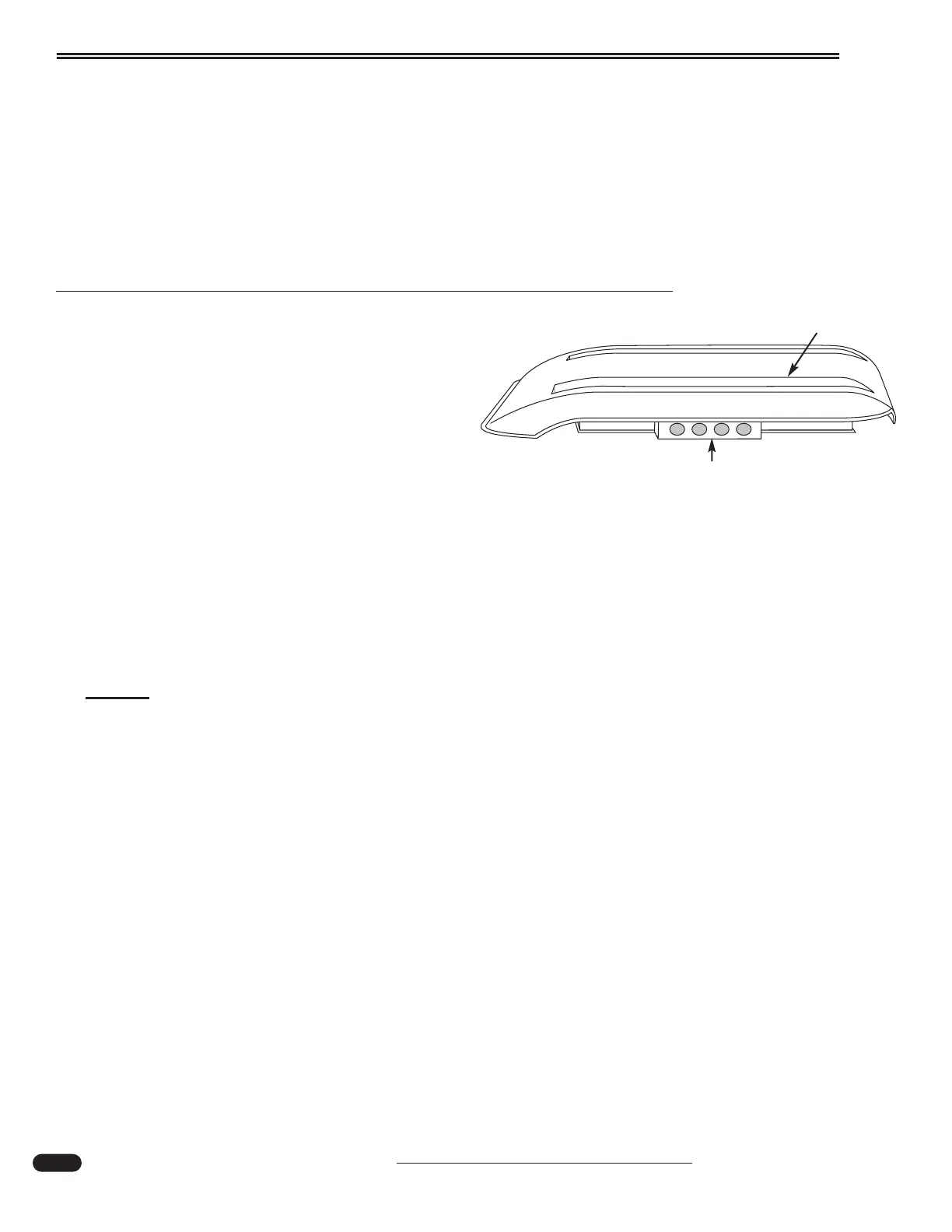

Combiner Box
Refer Vent
030946
