Section 10 --- Chassis Information
The Executive 2005
508

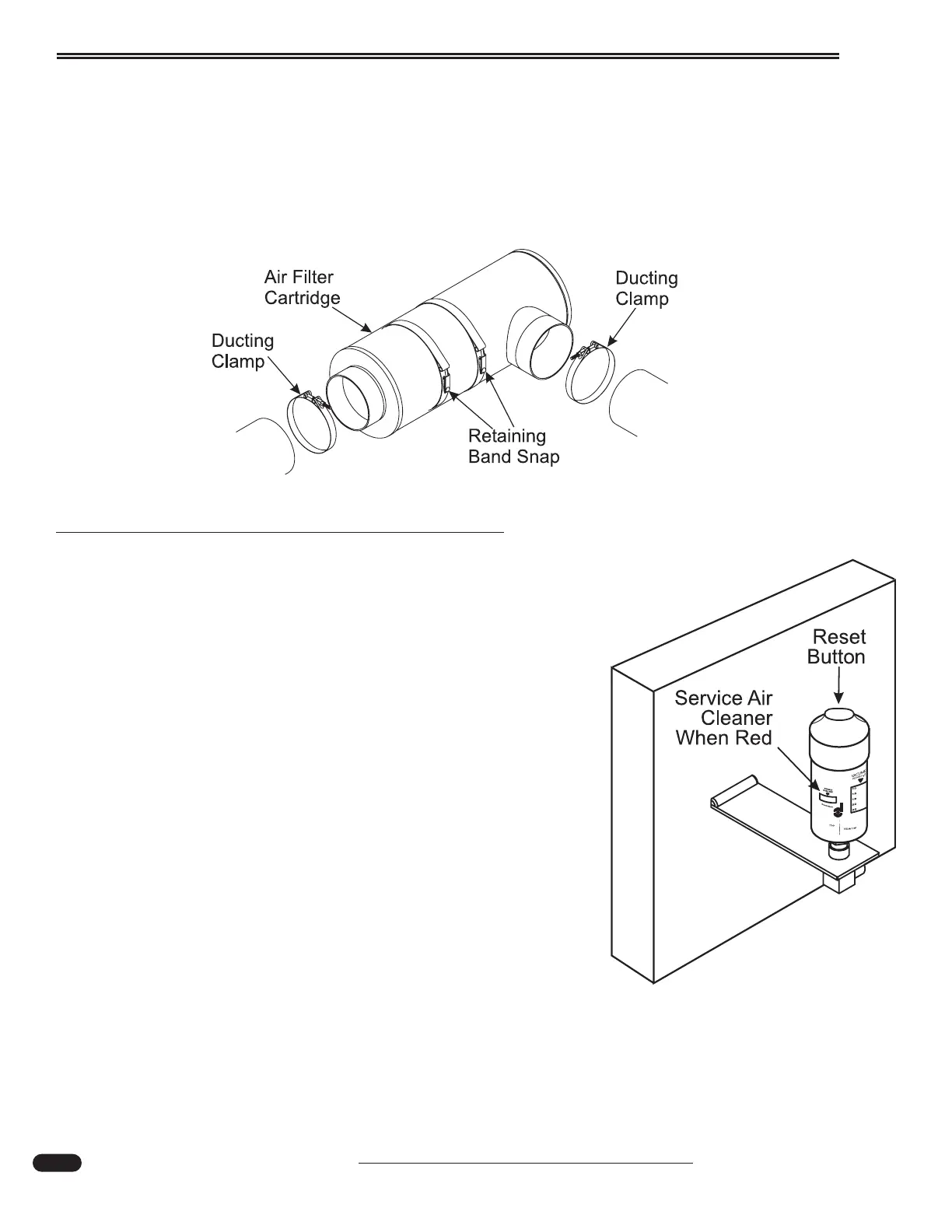

AIR FILTER
Changing the Filter
The entire air filter cartridge is discarded and replaced by loosening the inlet and outlet ducting
clamps and releasing the retaining band snaps. The air filter is located in the rear engine compart-
ment.
Air Filter Minder
The air filter minder is a precision overflow restriction gauge
designed to take the guesswork out of air cleaner replacement.
The air filter minder is located in the rear engine compartment.
As dirt captured by filter cartridge slowly builds up, vacuum between
the filter and charge air cooler increases. The indicator locks at the
point of maximum restriction so readings can be taken with or without
the engine running.
When the desired change-out point is reached, the air filter should
be replaced and the service indicator reset by pushing the Reset button on
the top of the minder.
130030
080105b
