SERVICE CENTER
NOTE:
Layout of Service Center and location of components may vary with floor plans.

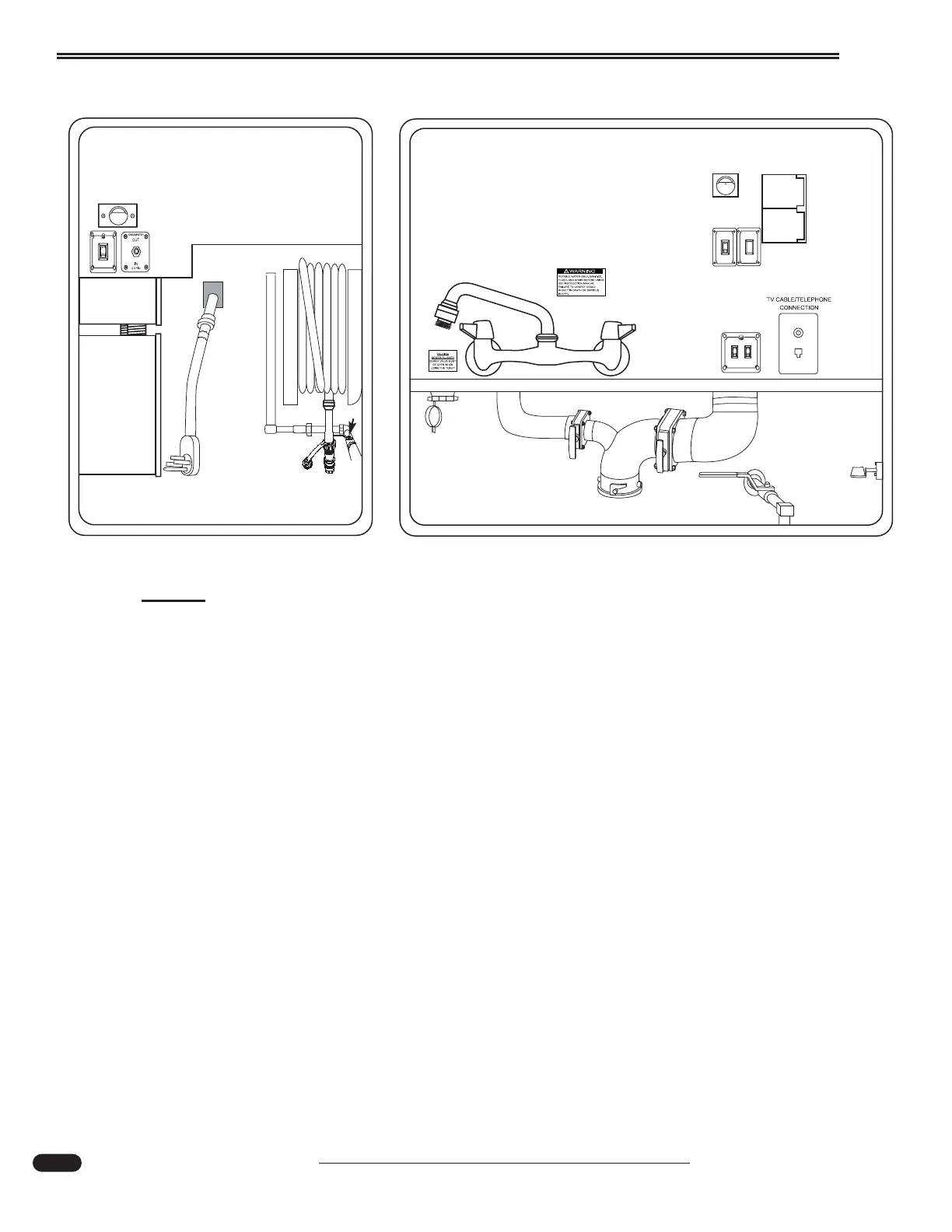

1. Light
2. Light Switch
3. Power Cord Reel Switch
4. Transfer Switch
5. Aladdin A/C Interface
6. Power Cord
7. Hose Reel
8. City Water Connection
9. Fresh Tank Fill/City Water Valve
10. Black Tank Flush Connection
11. Faucet
12. Light
13. Light Switch
14. Spare
15. 120 Volt Outlet
16. Water Pump Switch and Light
17. TV Cable/Telephone Connection
18. Grey Tank Dump Valve
19. Termination Outlet
20. Black Tank Dump Valve
21. Fresh Tank Drain
22. Sanitizer Holder
