Electrical Systems - House --- Section 8
The Executive 2005
373

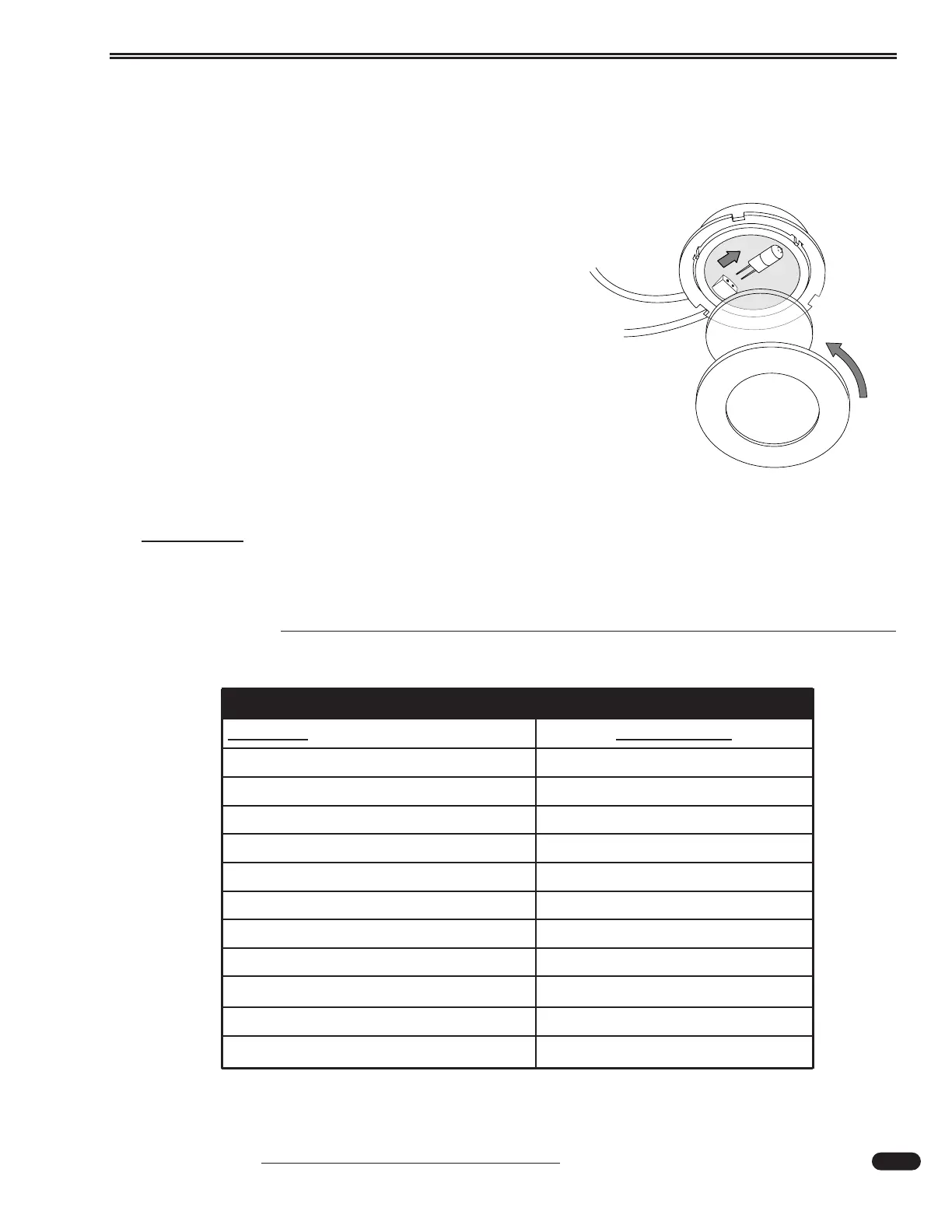

LIGHTS - INTERIOR HALOGEN
The bulbs inside the halogen lighting are replaceable.
To Replace a Bulb:
1. Rotate the outer trim ring counterclockwise and
remove.
2. Press the safety lens towards retaining tab. Pull down
and away.
3. Carefully grasp bulb and pull from socket.
4. Use a clean cloth or piece of tissue to grasp new
bulb. Do not touch bulb directly as this can cause a
"hot spot" and result in immediate bulb failure.
5. Align contacts of bulb with terminals in fixture base.
Insert bulb until contacts are firmly seated.
6. Replace safety lens.
7. Align tabs in trim ring with slots in fixture base.
Rotate lens clockwise until trim ring locks into place.
CAUTION:
Do not touch halogen lighting while on. They can cause a burn. Do not touch replace-
ment bulbs. Oil in the hands can cause a "hot-spot" to occur. If the bulb is touched,
allow it to cool and clean the bulb with alcohol.
BULB USAGE - INTERIOR
060200b
* MP = Monaco Part Number
INTERIOR BULB CHART
LOCATION BULB NUMBER
CEILING LIGHTS GE F15T8 - CW
DASH LIGHT 161
COSMETIC/VANITY LAMP 12V 13W 9-019F
CLOSET LAMP DE 561
ROUND 3” HALOGEN CEILING LIGHT 12V 10 W FC 2585
ROPE LIGHT LITCO 31-120-40
ENTRY HANDLE LIGHT TUBE MP# 16615157
MAP LIGHT 12V 6W 38886K
STEPWELL LIGHTS Vista Manufacturing 90416
WALL LAMPS 120V 40W 6-16.5 (2”)
DINETTE/BEDROOM LAMP 12V 912 or 921
