Chassis Information --- Section 10
The Executive 2005
515
Component:
Engine Oil
Engine Oil Filter
Transmission
Engine Coolant
Hydraulic Fluid Reservoir
Hydraulic Filter
Filter Fuel/Water Separator (Primary)
Filter Fuel (Secondary)
Air Dryer Filter
Radiator/Charge Air Cooler
Coolant Filter
Wheel Bearings
Rear Differential
PTO (ISX)
Drive Shaft Universal Joints
Drive Shaft Slip Yoke
Drag Link
Center Link
Spindles/Kingpins
Steering Drive Shaft
Air Tank Drains
HWH Reservoir
RVA Reservoir (N/A on ISX)
Tire Pressure
Steering Box
Generator
Batteries
Slack Adjuster/S-Cam
1.
2.
3.
4.
5.
6.
7a.
7b.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
25.
26.
27.
Action:
Keep to Full Mark
Replace
Keep to Full Mark
Replace
Keep to Full Mark
Replace
Replace
Replace
Replace
Inspect
Replace
Re-pack
To Filler Plug
Inspect Fittings
Grease-2 Fittings
Grease-1 Fitting
Grease-2 Fitting
Grease-2 Fittings
Grease-2 Fittings ea.
Grease-3 Fittings
Drains
Keep to Full Mark
-
Check
Grease-1 Fitting
Refer to Service Manual
Inspect
Grease-3 Fittings ea.
When:
Daily
At Oil Change
Refer to OEM Manual
Refer to OEM Manual
Monthly
15,000 or Annually
15,000 or 6 Months
Refer to OEM Manual
2 -3 Years
Weekly
Refer to OEM Manual
30,000 or Annually
250,000 or 3 Years
Monthly
10,000 or Annually
10,000 or Annually
5,000 or 6 Months
5,000 or 6 Months
5,000 or 6 Months
30,000 or Annually
Monthly
6,000 or 3 Months
-
Before Each Trip & Enroute Daily
Twice a Year
Refer to OEM Manual
Bi-Monthly
10,000 or Quarterly
Code-Refer to Chart:
EO
OEM
TS
AF
TF
TF
FF
OEM
-
-
OEM
HT
MP
-
CL
CL
CL
CL
CL
CL-4
-
TF
-
-
CL
OEM
DW
CBL
070173p

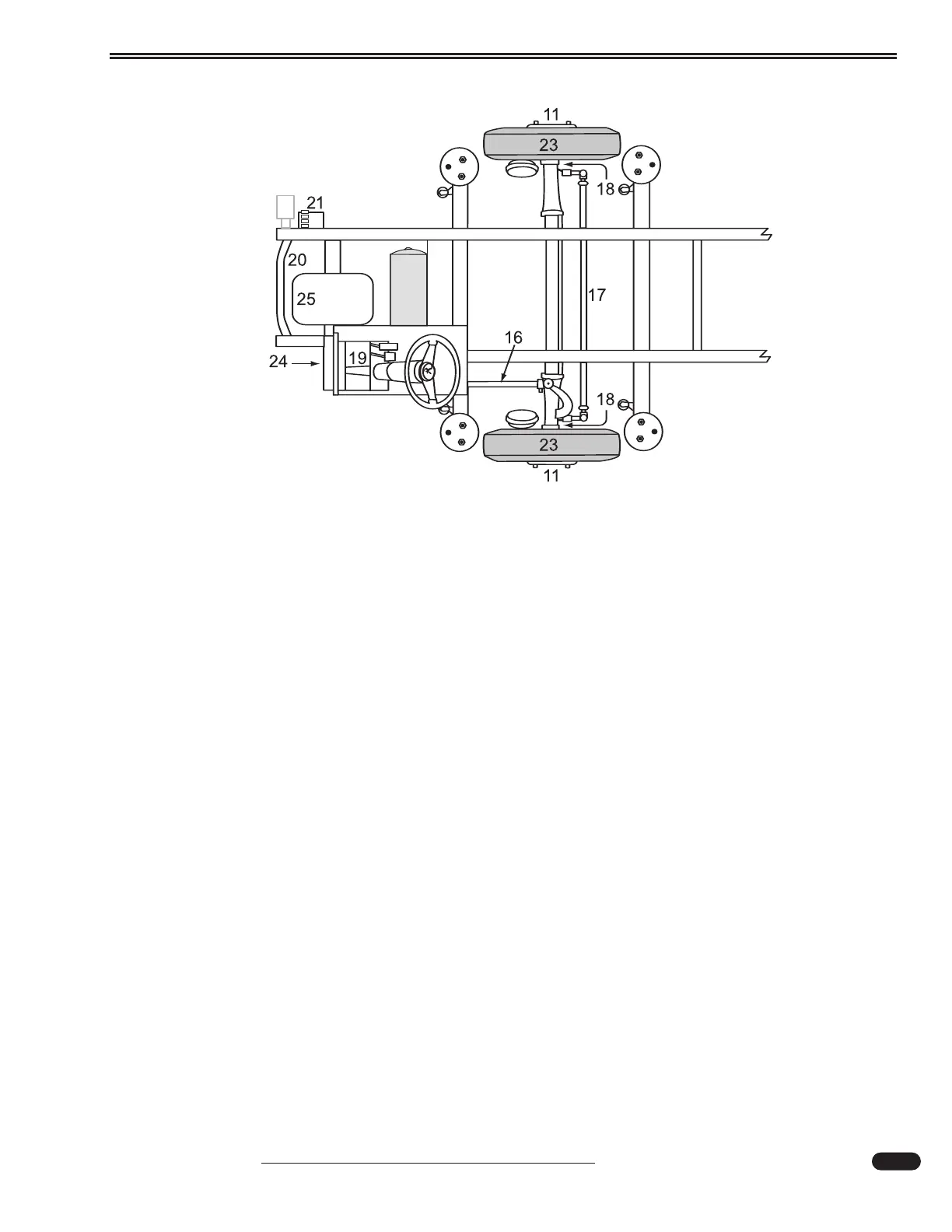

FRONT
Cummins - ISX
(Optional)
22
To Next Page
