Desiccant Cartridge
The replacement kit contains one cartridge and one O-ring.
To Replace the Cartridge:
1. Loosen and remove the old cartridge. Use a strap wrench, if necessary.
2. Remove and discard the O-ring from the dryer base.
3. Inspect and clean the seal seat. Repair any minor damage.
NOTE:
If the seats are damaged so badly that a tight seal cannot
be maintained, replace the air dryer.
4. Install a new O-ring.
5. Lubricate the O-Ring on the stem with a thin layer
of grease.
6. Lubricate the cartridge seal with a thin layer of
grease.
7. Thread the replacement cartridge onto the base until
the seal touches the base. Tighten the cartridge ONE
additional turn. DO NOT OVERTIGHTEN.

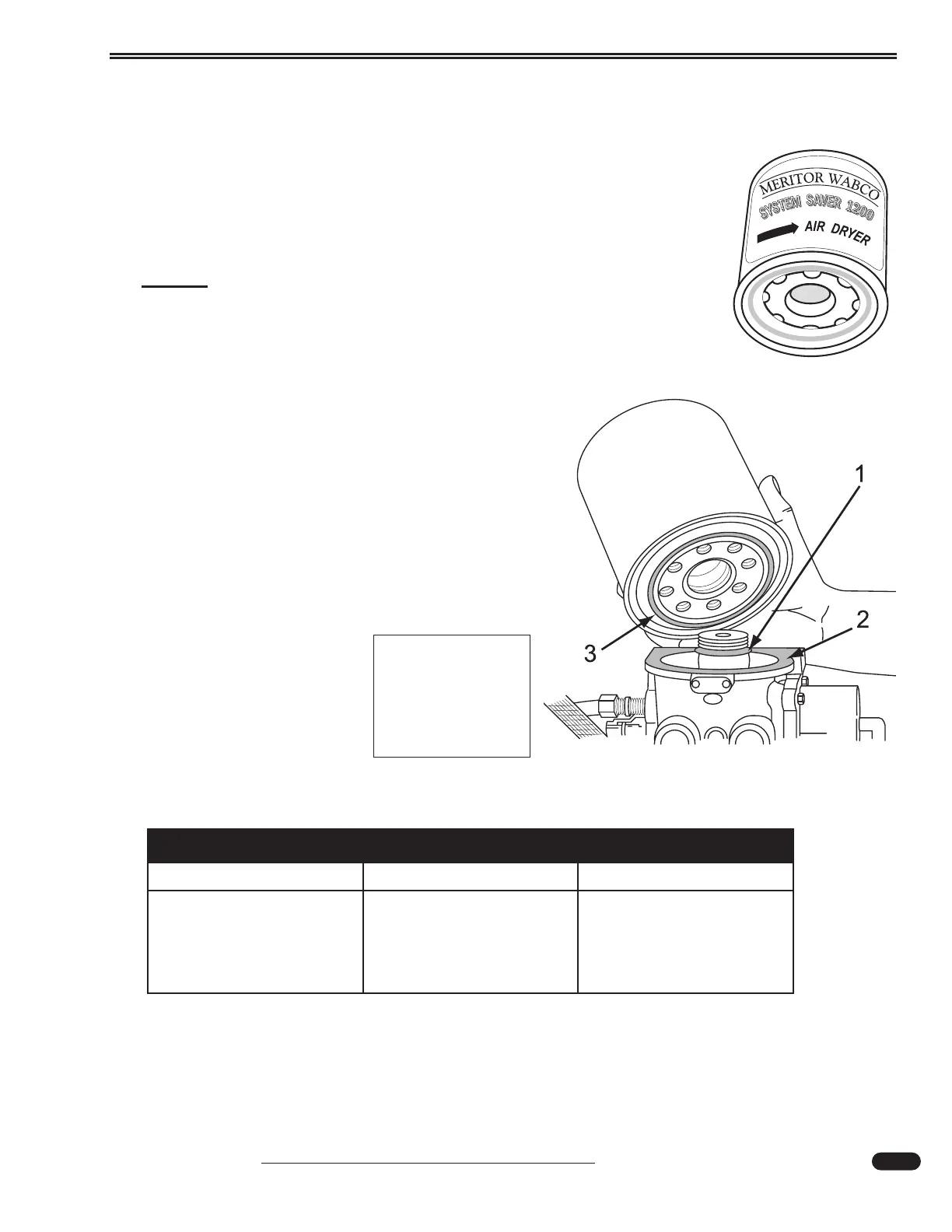

1. O-Ring
2. Seal Seat
3. Cartridge Seal
080223
070165
REPLACEMENT REQUIREMENTS
Components When to replace? Why?
Desiccant
Cartridge
Every two to three years.
When compressor is replaced.
Water in supply tank.
Preventive maintenance.
Contaminated cartridge.
Saturated or contaminated car-
tridge, high duty cycle (wrong
application of air dryer).
