Select Camera:
The Aladdin™ operator can manually select one of the four video cameras that are attached to the
Aladdin™. When the sub menu item is first selected after initial power-up, the Aladdin™ will display
the video from each camera sequentially, changing camera view once every six seconds. A specific
camera can be manually selected by moving the joystick up or down.
NOTE:
The Backup Camera is automatically selected when the transmission is placed in
reverse and the side cameras are activated by the turn signals. If both turn signals are
active (hazard lights) then the backup camera will be selected.
If a turn signal is activated while in reverse, the side camera will override the backup camera.
Engine/Trans Status:
Provides the operator with a single screen display of current
available engine and transmission data. Compass heading and time
are displayed on each screen.
If the operator moves the joystick right in this screen, an
enlarged engine and transmission screen will display, showing only
four parameters at a time, with five screens available. The screens
are automatically scanned approximately every six seconds.
Move the joystick up or down to manually scan through the
screens and disable automatic scanning. Move the joystick right to
resume automatic scanning. Moving the joystick left to return to
the previous all-in-one screen. A left/back from this original status
screen will return the operator to the main menu.
Coach Electrical Status:
The COACH ELECTRICAL STATUS screen will provide
the operator with a display of AC Leg 1 and Leg 2 Volts, Amps
and Frequency, House Battery Volts and Amps, and Solar Panel
Voltage and Amps.
Coach Tank/Mis Status:
The COACH TANK/MISC STATUS screen reads fresh,
grey and black tank percentage full and corresponding gallons,
LP-Gas tank percentage full. Basement and outside temperatures
as well as compass heading will be displayed.

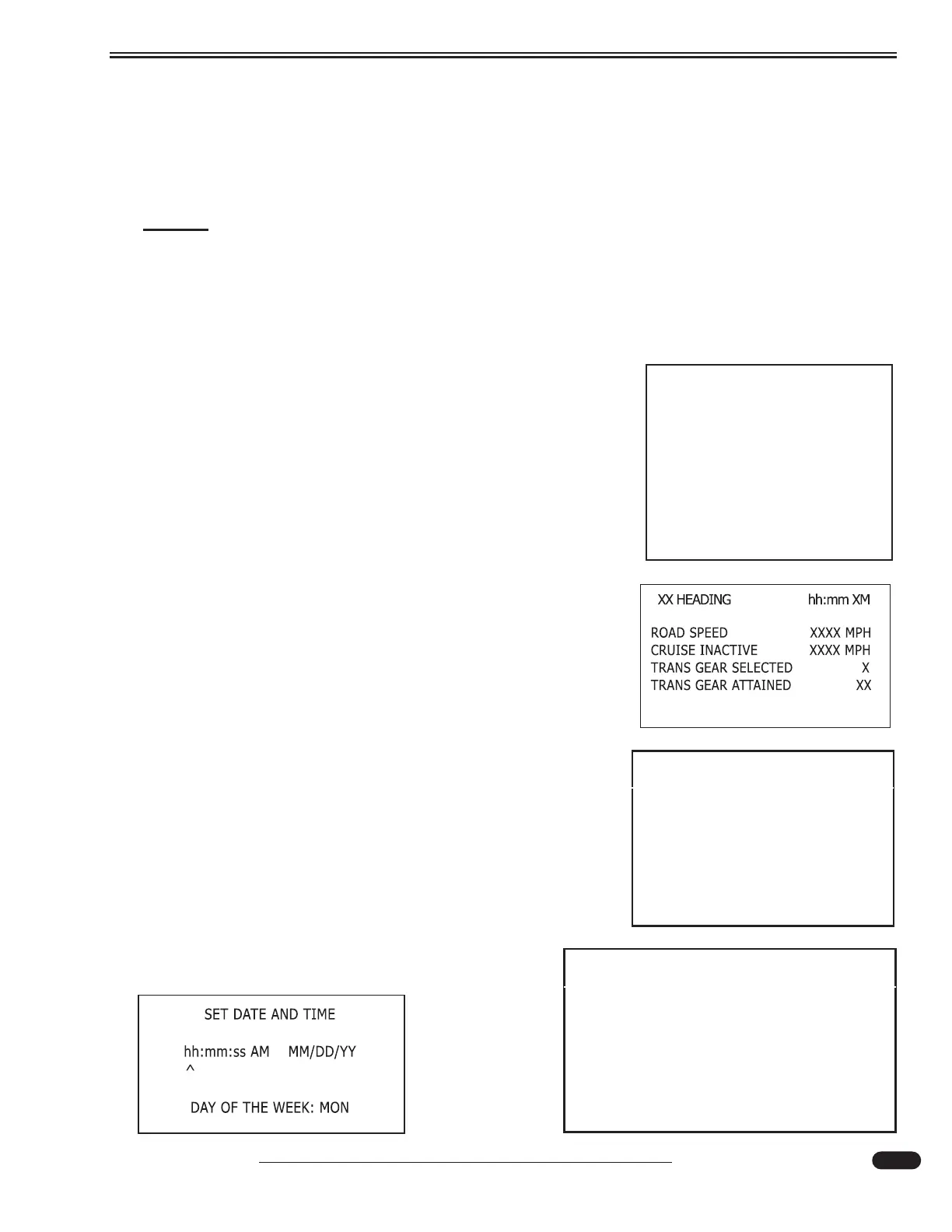

SET DATE AND TIME screen allows setting the current
time and date. Joystick left or right selects the various
digits. Joystick Up and Down changes the value.
020197F
STATUS
ENGINE
0.0 MPH
0 RPM
109 F TEMP
0 PCT LOAD
0 PSI OIL
0.0 MPG
0.0 CRUISE OFF
E HEADING
TRANS
N GEAR SET
NC GEAR ATT
83 F TEMP
BATTERY
13.4 VDC
08:27 AM
COACH ELECTRICAL STATUS
AC LEG1
AC LEG2
SOLAR
HOUSE
BAT
VAC
117
119
VDC
13.9
13.5
AMP
18.4
11.0
AMP
1.0 CHG
20 CHG
SRQ
61
60
COACHTANK/MISC STATUS
FRESH TANK
GREY TANK
BLACK TANK
LP TANK
BASEMENT TEMP
OUTSIDE TEMP
COMP HEADING
PCT
0
0
0
0
63.1 F
55.7 F
E
GAL
0
0
0
0
