Section 8 --- Electrical Systems - House
The Executive 2005
328

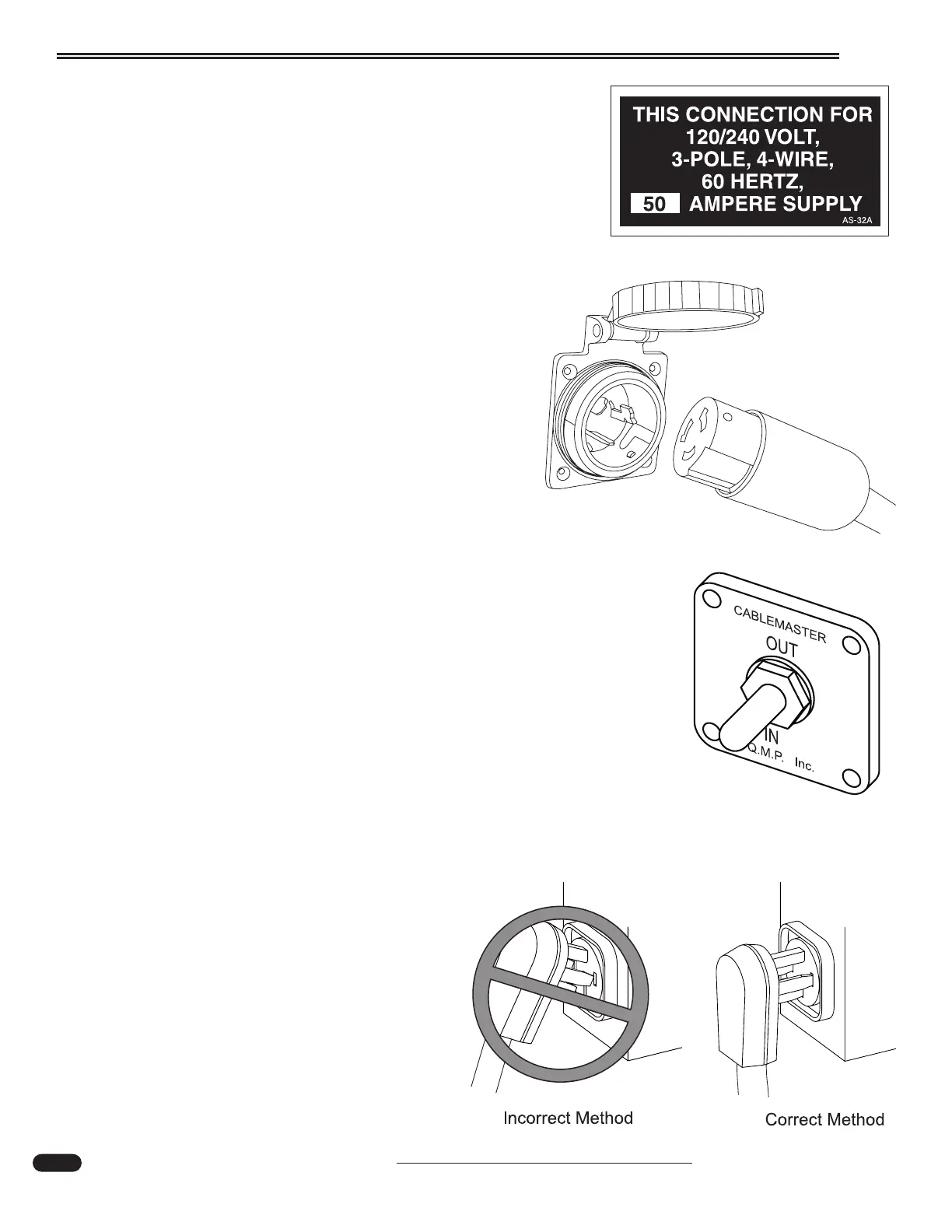

Plugging in the Shore Cord:
• Located in the roadside compartment is the shore power cord.
• Unscrew the deck plate and insert the end of the shore cable
through the deck plate.
• Align cord end with socket terminals. Insert cord end into socket
and rotate end clockwise ¼ turn locking cord end into socket.
• If 50 Amp service is not available, install the proper electrical
adapter(s) to the opposite end of the cord.
• Always turn off the shore power breaker to the power
supply outlet before connecting or disconnecting the
shore cord. This will prevent an accidental shock and
flashing of electrical contacts.
• Make the connection to the outlet and turn the shore
power breaker on. The transfer switch should make an
audible click.
• Go inside the motorhome and check the AC voltage,
using the Aladdin™ screen to verify proper voltage.
Plugging in the Shore Cord with Cord Reel Option:
• Located in the roadside compartment is the shore power
cord.
• Locate the power cord switch. Extend the cable by placing the
switch to the Out position. Extend a sufficient amount of cable to
reach the power supply, then turn the switch off. If 50 Amp service
is not available, install the proper electrical adapter(s) to the cord.
• Always turn off the shore power breaker to the power supply before
connecting or disconnecting the shore cord. This will prevent an
accidental shock and flashing of electrical contacts.
• After the connection is made, turn the shore power breaker on. The
transfer switch should make an audible click.
• Go inside the motorhome and check the AC voltage using the
Aladdin™ screen.
