Monaco Executive 2005 - Page 36

Section 2 --- Driving & Safety
The Executive 2005
36

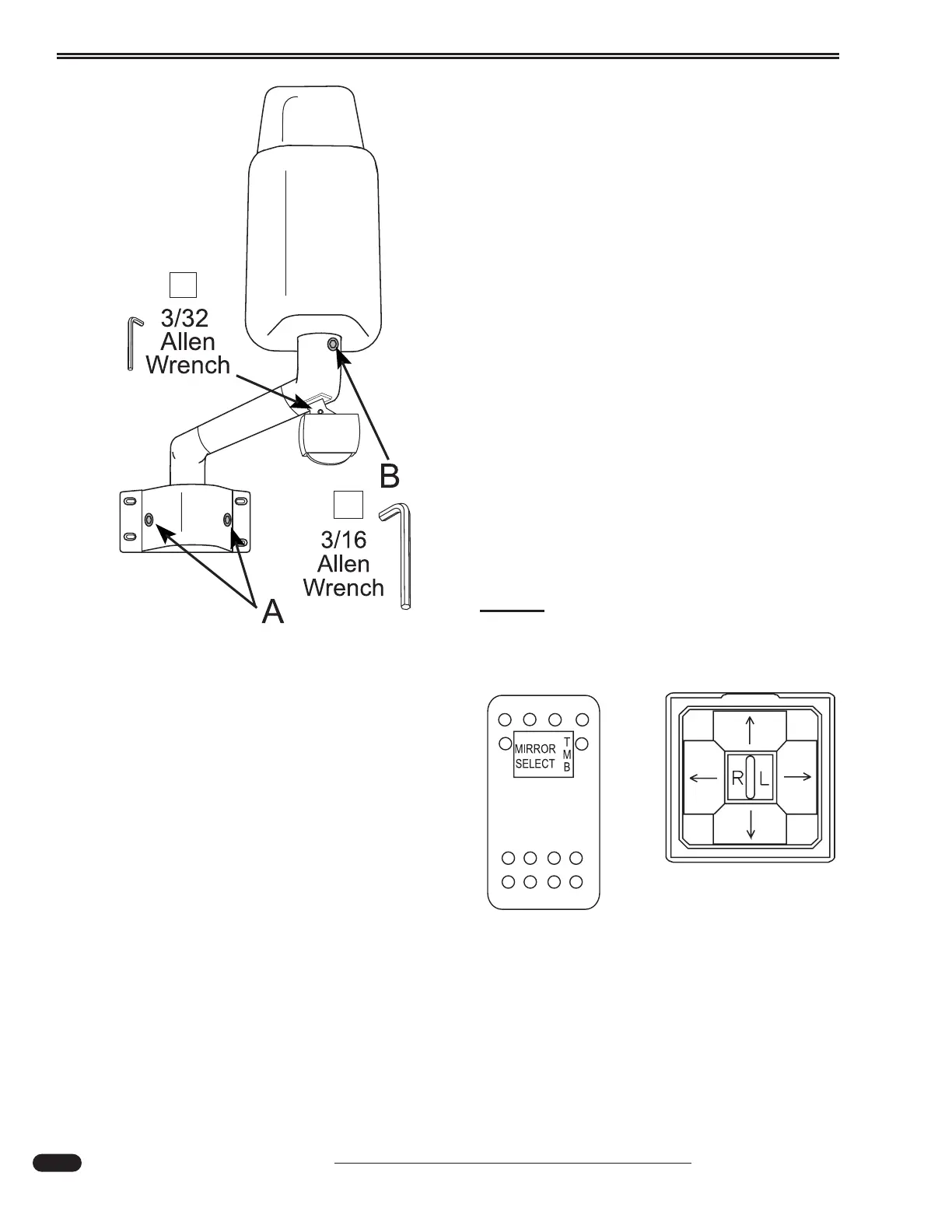

Mirror Adjusting:
• Tools needed: 3/16" and 3/32" Allen
wrench.
• Adjust the driver seat to travel posi-
tion.
• Using 3/16” Allen wrench, have the
assistant loosen the two 3/16" Allen
set screws located at the base of the
mirror (see A on illustration).
• Adjust the mirror for a clear side
view of the motorhome.
• Tighten the two base screws once
proper adjustment is made.
• Use a 3/32"Allen wrench to loosen
the camera. Adjust the camera angle
and retighten.
• To adjust the head of the mirror,
loosen the screw located at point B.
Adjust to the left or right.
• Make sure all Allen set screws are
tight.
NOTE:
Use the mirror select and adjust switch
located on the roadside console to fine
tune the view.
070181g
080378
Mirror Adjust Switch
080452
Mirror Select Switch
Mirror with optional “See Vision” camera
1
2
