Chassis Information --- Section 10
The Executive 2005
443

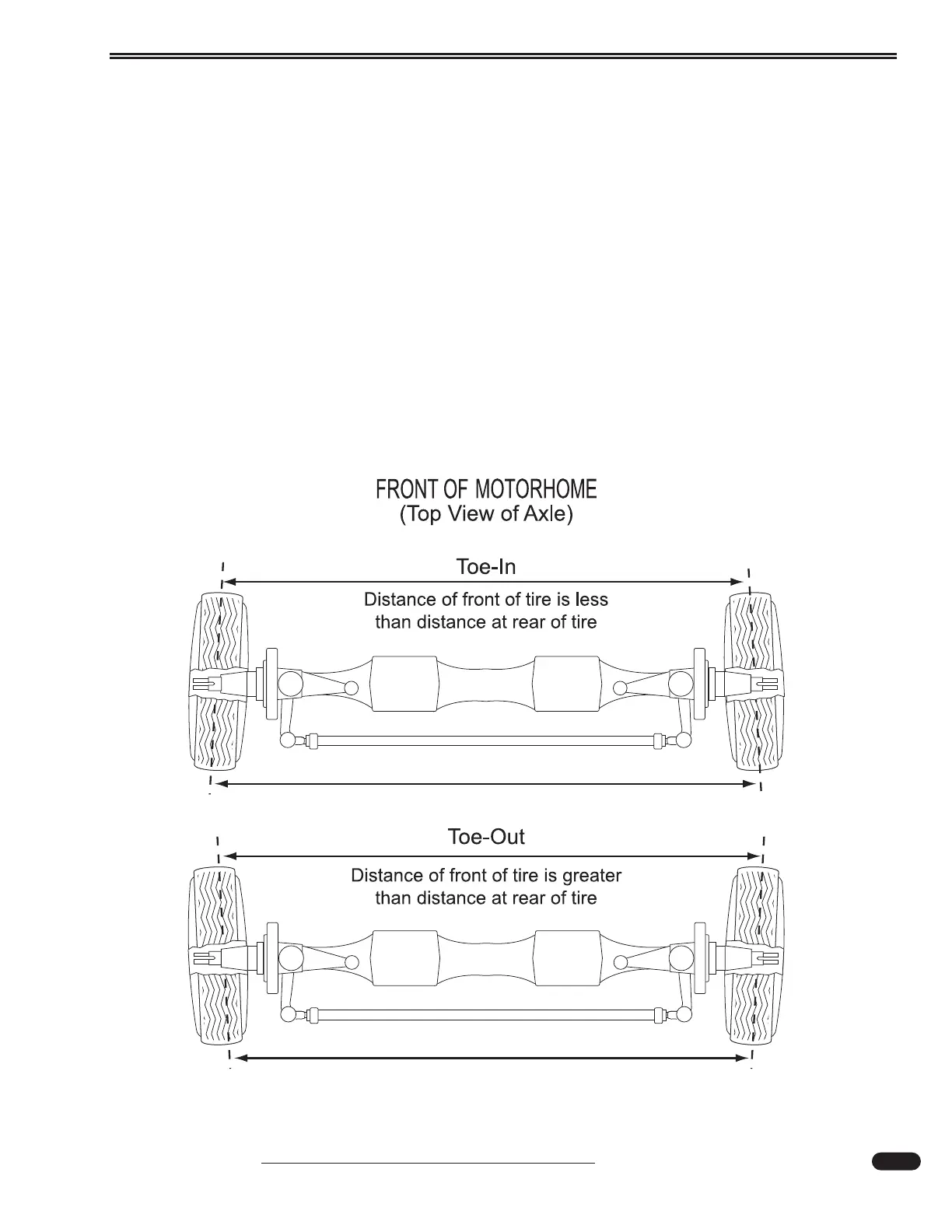

Toe Setting:
The toe setting represents different distances between the front and rear of the tires (measured at the
vertical center line of the tires).
Toe-in:
Occurs when the tire front distance is less than the tire rear distance.
Toe-out:
Occurs when the tire front distance is greater than the tire rear distance.
Wheels are generally set with initial toe-in. As the motorhome operates tires tend toward a toe-out
condition. By starting with an initial toe-in setting, a desirable “near zero toe-in” can be achieved when
the motorhome is in motion.
Incorrect toe settings, where toed-in or toed-out, can have a significant affect on tire wear. The toe
setting is adjusted by lengthening or shortening the cross tube.
090265
