4-22 Motorola RF Switch System Reference Guide
2. Click the Configuration tab.

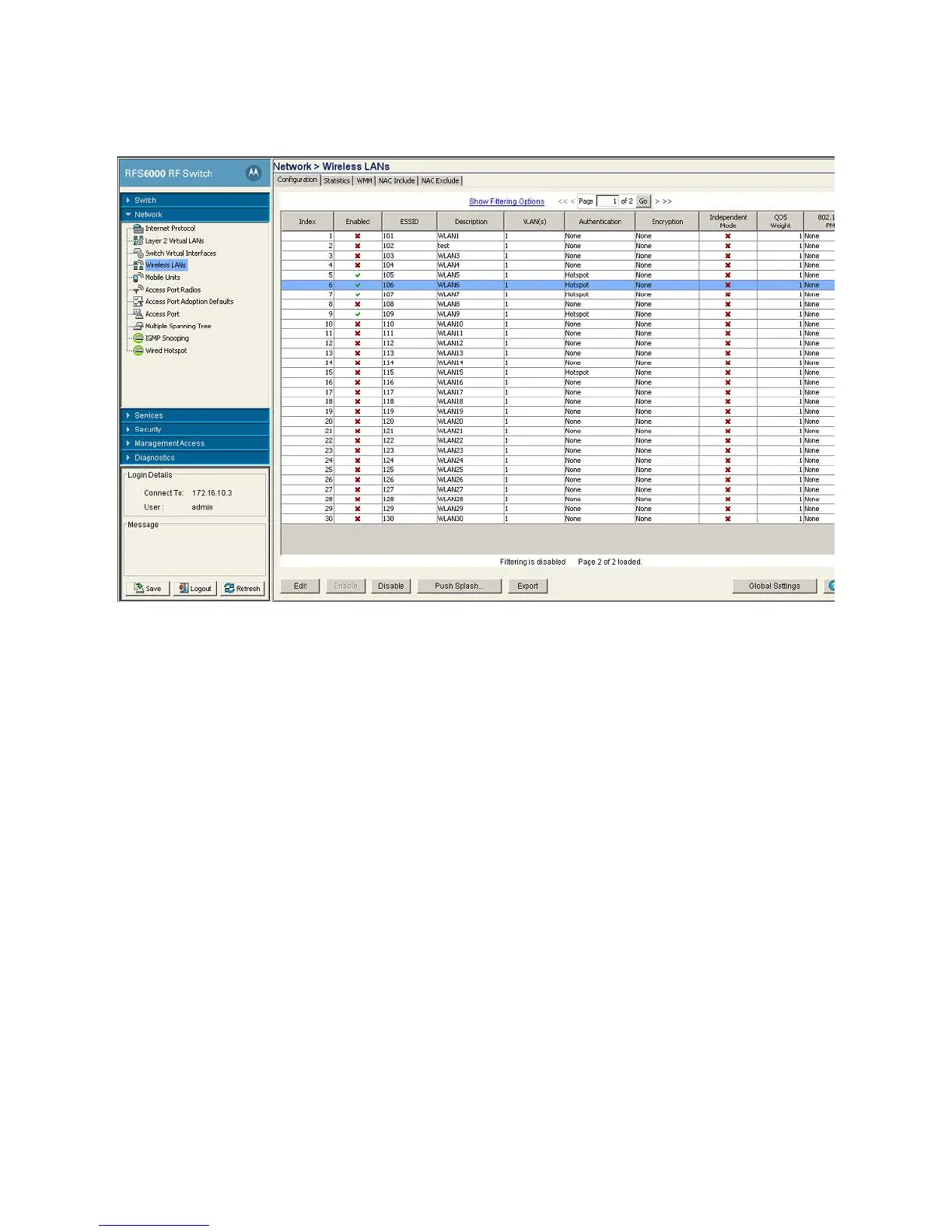

The Configuration tab displays the following details:
Switch The Switch field displays the IP address of the cluster member associated with
each WLAN. When clustering is enabled on the switch and Cluster GUI is
enabled, the Switch field will be available on the Wireless LAN screen. For
information on configuring enabling Cluster GUI, see Managing Clustering Using
the Web UI.
Index Displays the WLAN’s numerical identifier. The WLAN index range is from 1 to the
maximum number of WLANs supported by the switch. (The WLAN numbers will
depend on the device on which this feature is enabled). An index can be helpful to
differentiate a WLAN from other WLANs with similar configurations.
Enabled Refer to the Enabled parameter to discern whether the specified WLAN is enabled
or disabled. When enabled, a green check mark displays. When disabled, a red "X"
displays. To enable or disable a WLAN, select it from the table and click the
Enable or Disable button.
ESSID Displays the Service Set ID associated with each WLAN. Click the Edit button to
modify the value to a new unique SSID.
Description Displays a short description of the associated WLAN. Click the Edit button to
modify the value the WLAN description.
VLAN(s) Displays the name of the VLAN ID (s) of the VLAN(s) this WLAN is mapped to. The
VLAN ID can be between 1 and 4094. The default mapping is to a single VLAN with
VLAN ID 1.
