2. Click the Graph button.

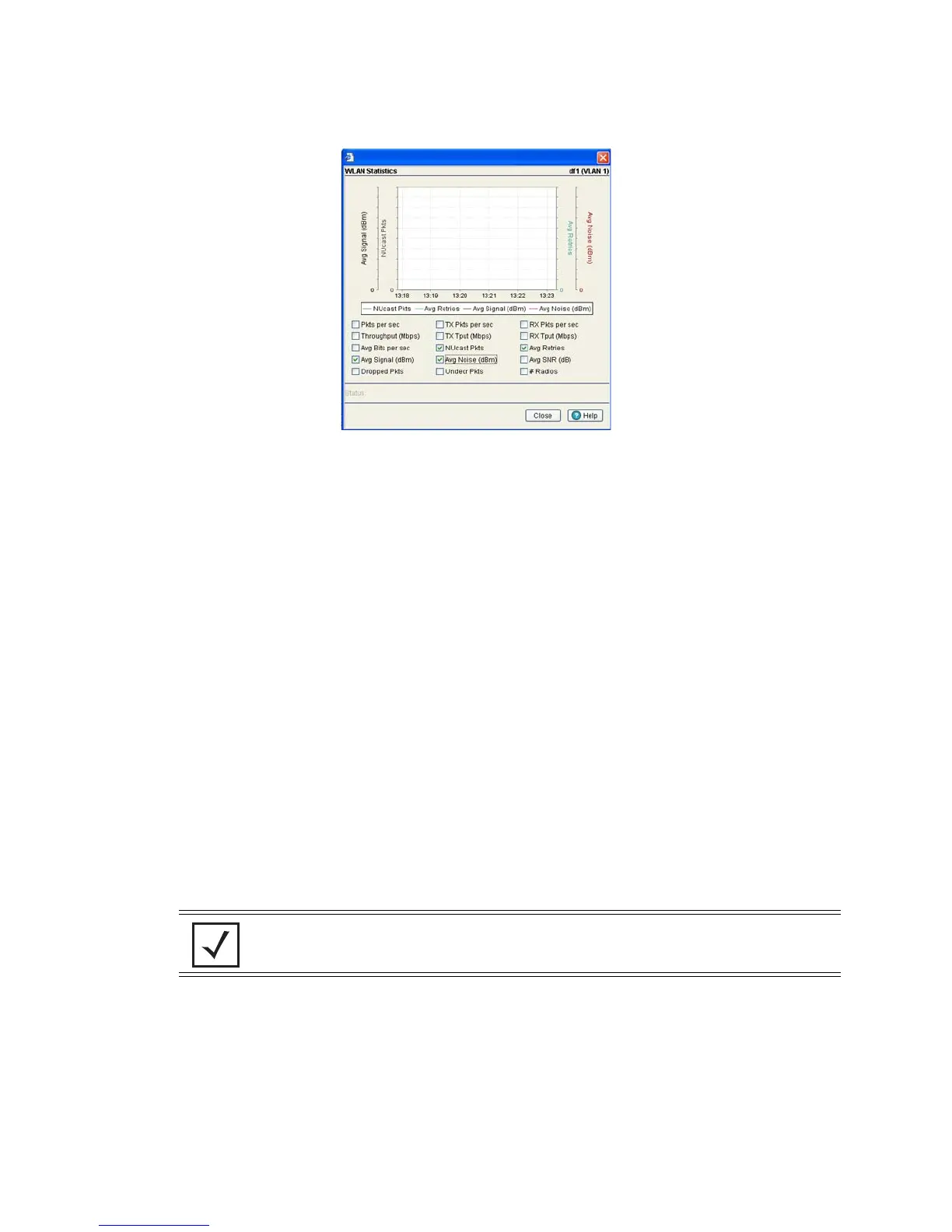

The WLAN Statistics screen displays for the select port. The WLAN Statistics screen provides the
option of viewing the graphical statistics of the following parameters:
• Pkts per sec
• Throughput (Mbps)
• Avg Bits per sec
• Avg Signal (dBm)
• Dropped Pkts
• TX Pkts per sec
• TX Tput (Mbps)
• NUcast Pkts
• Avg Noise (dBm)
• Undecr Pkts
• RXPkts per sec
• RX Tput (Mbps)
• Avg Retries
• Avg SNR (dB)
• # Radios
3. Select any of the above listed parameters by clicking on the checkbox associated with it.
4. Click the Close button to exit the screen.
4.5.2.3 Viewing WLAN Switch Statistics
The Switch Statistics screen displays the sum of all WLAN statistics. The Switch Statistics screen is
optimal for displaying a snapshot of overall WLAN traffic on your switch.
NOTE: You cannot select (and send) more than four parameters at any given time.
