Motorola RFS Series System Reference Guide

4-76 Motorola RF Switch System Reference Guide

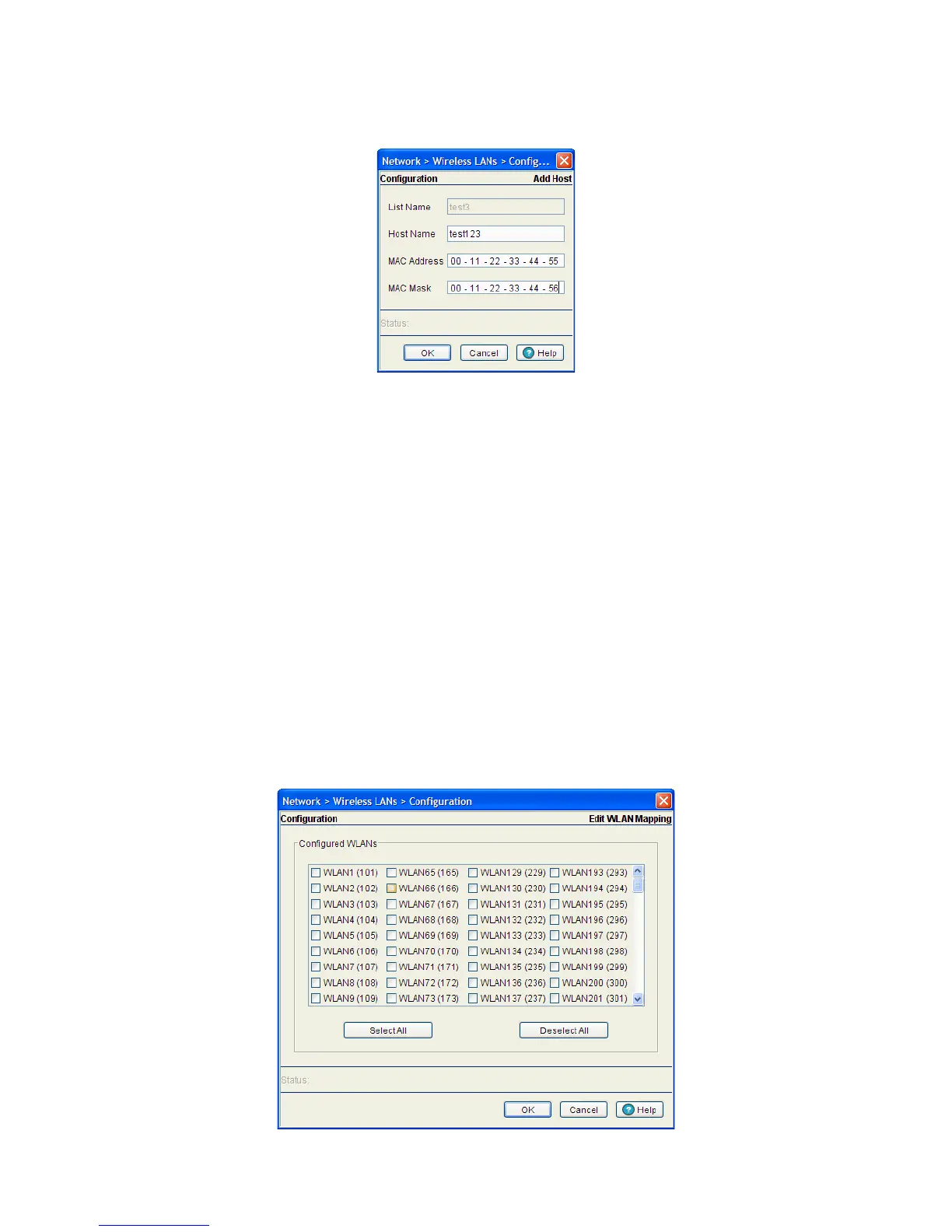

3. Click the Add button in the List Configuration field.
4. The List Name displays the read-only name of the list for which you wish to add more devices.
5. Enter the Host Name for the device you wish to add for the selected exclude list.
6. Enter a valid MAC Address for the device you wish to add.
7. Optionally, enter the MAC Mask for the device you wish to add.
8. Refer to the Status field. It displays the current state of the requests made from the applet. Requests are
any “SET/GET” operation from the applet. The Status field displays error messages if something goes
wrong in the transaction between the applet and the switch.
9. Click OK to save and add the new configuration, and close the dialog window.
10.Click Cancel to close the dialog without committing updates to the running configuration.
4.5.5.3 Mapping Exclude List Items to WLANs
To assign exclude list items to one or more WLANs:
1. Select Network > Wireless LANs from the main menu tree.
2. Select the NAC Exclude tab to view NAC excluded devices.
3. Select an item from the Exclude List’s List Name field and click the Edit button (within the Configured
WLANs field).
