2. Click the Statistics tab.
3. Select the Last 30s checkbox to display MU statistics gathered over the last 30 seconds. This option is
helpful for assessing MU performance trends in real-time.
4. Select the Last HR checkbox to display MU statistics gathered over the last hour. This option is helpful
for assessing performance trends over a measurable period.

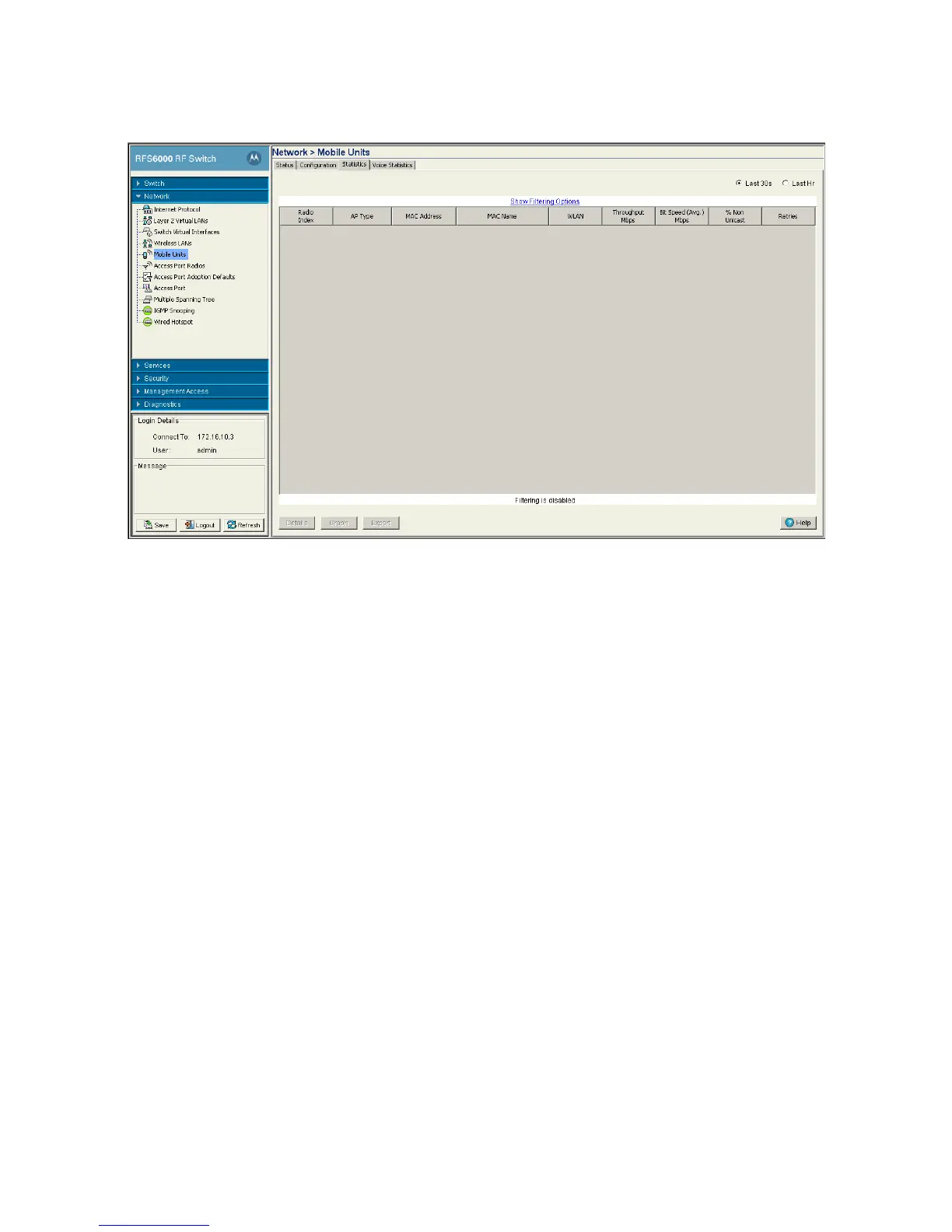

5. Refer to the following details as displayed within the MU Statistics table:
Radio Index Displays a numerical identifier used to associate a particular Radio with a set of
statistics. The Index is helpful for distinguishing the radio from other radios with
a similar configuration.
AP Type Displays the type of Access Port that the MU is connected to.
MAC Address Displays the Hardware or Media Access Control (MAC) address for the MU. The
MAC address is hard coded at the factory and cannot be modified.
MAC Name Displays the MAC name associated with each MU’s MAC address. The MAC name
is a user-created name used to identify individual mobile unit MAC addresses with
a user-friendly name.
WLAN Displays the name of the WLAN the MU is currently associated with. Use this
information to determine if the MU/WLAN placement best suits the intended
operation and MU coverage area.
Throughput Mbps Displays the average throughput in Mbps between the selected MU and the
Access Port. The Rx column displays the average throughput in Mbps for packets
received on the selected MU from the Access Port. The Tx column displays the
average throughput for packets sent on the selected MU from the Access Port.
Bit Speed (Avg.)
Mpbs
Displays the average bit speed in Mbps for the selected MU. This includes all
packets sent and received.
