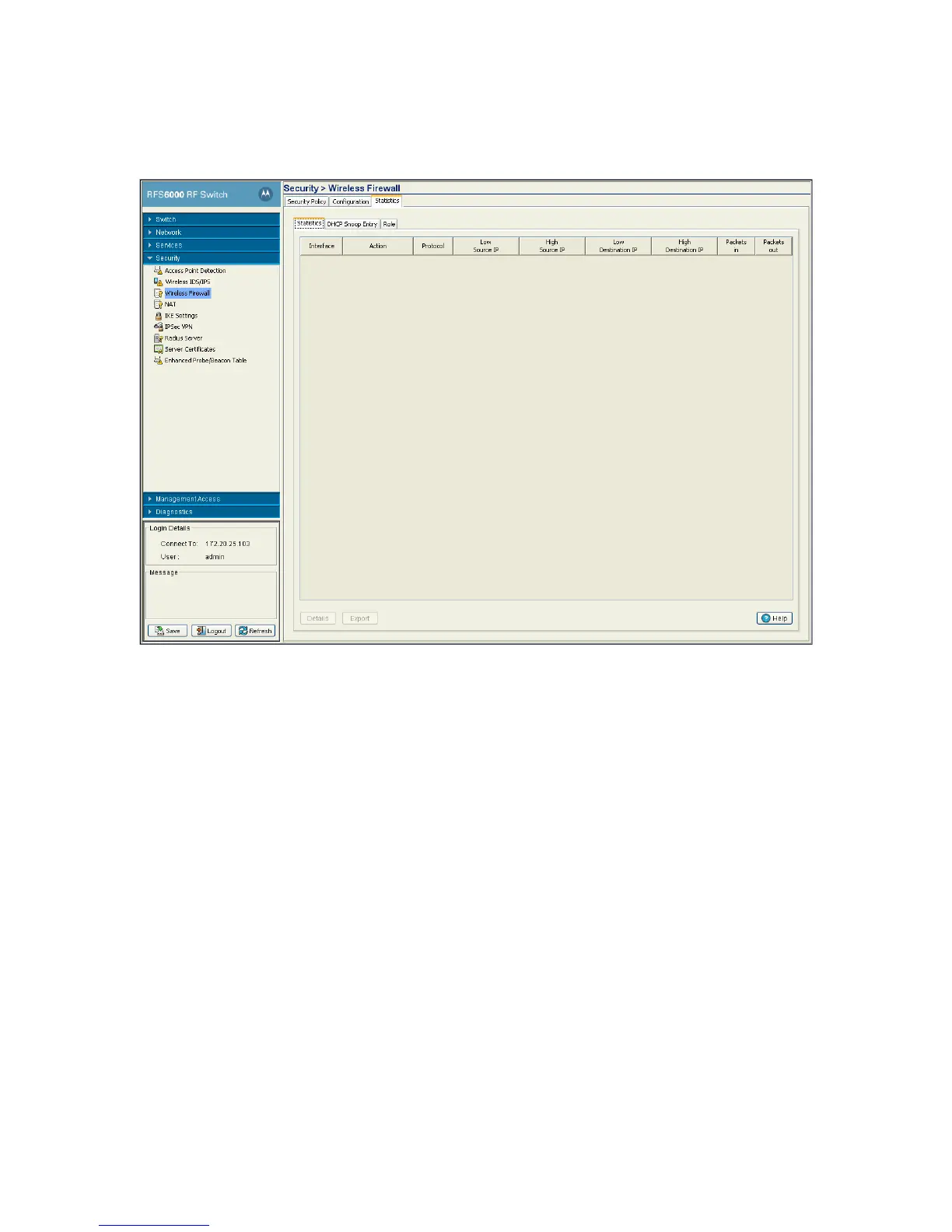

2. Click the Statistics tab.
3. From the Statistics section select the Statistics tab.
4. Refer to the following information as displayed within the Statistics tab:
Interface Interface displays the physical/virtual interfaces used to add the ACL association
to the switch.
Action Displays the permit, deny or mark designation for the ACL. If the action is to mark,
the packet is tagged for priority.
Protocol Displays the permit, deny or mark designation for the ACL. If the action is to mark,
the packet is tagged for priority or “type of service.”
Low Source IP Displays the Low Source IP Address from where the packets are sourced.
High Source IP Displays the High Source (highest address in available range) IP Address from
where the packets are sourced.
Low Destination IP Displays the Low Destination (lowest address in available range) IP Address.
High Destination IP Displays the High Destination IP Address.
Packets In Displays the number of packets (in bytes) transmitted over the ACL.
Packets Out Displays the number of instances this ACL has been used. Periodically review to
determine whether specific ACLs should be deleted or modified to make relevant.
