Motorola RFS Series System Reference Guide

6-106 Motorola RF Switch System Reference Guide
This value is read-only within the Groups tab. Click Edit to modify the access assignments of an existing
group or click Add to create a new group with unique access assignments.
6. To modify the attributes of an existing group, select the group from the list of groups displayed and click
the Edit button.
Modify the existing group’s guest designation, VLAN ID, access period and WLAN assignment.
7. If an existing group is no longer needed (perhaps obsolete in function), select the group and click the
Delete button to permanently remove the group from the list. The group can only be removed if all the
users in the group are removed first.

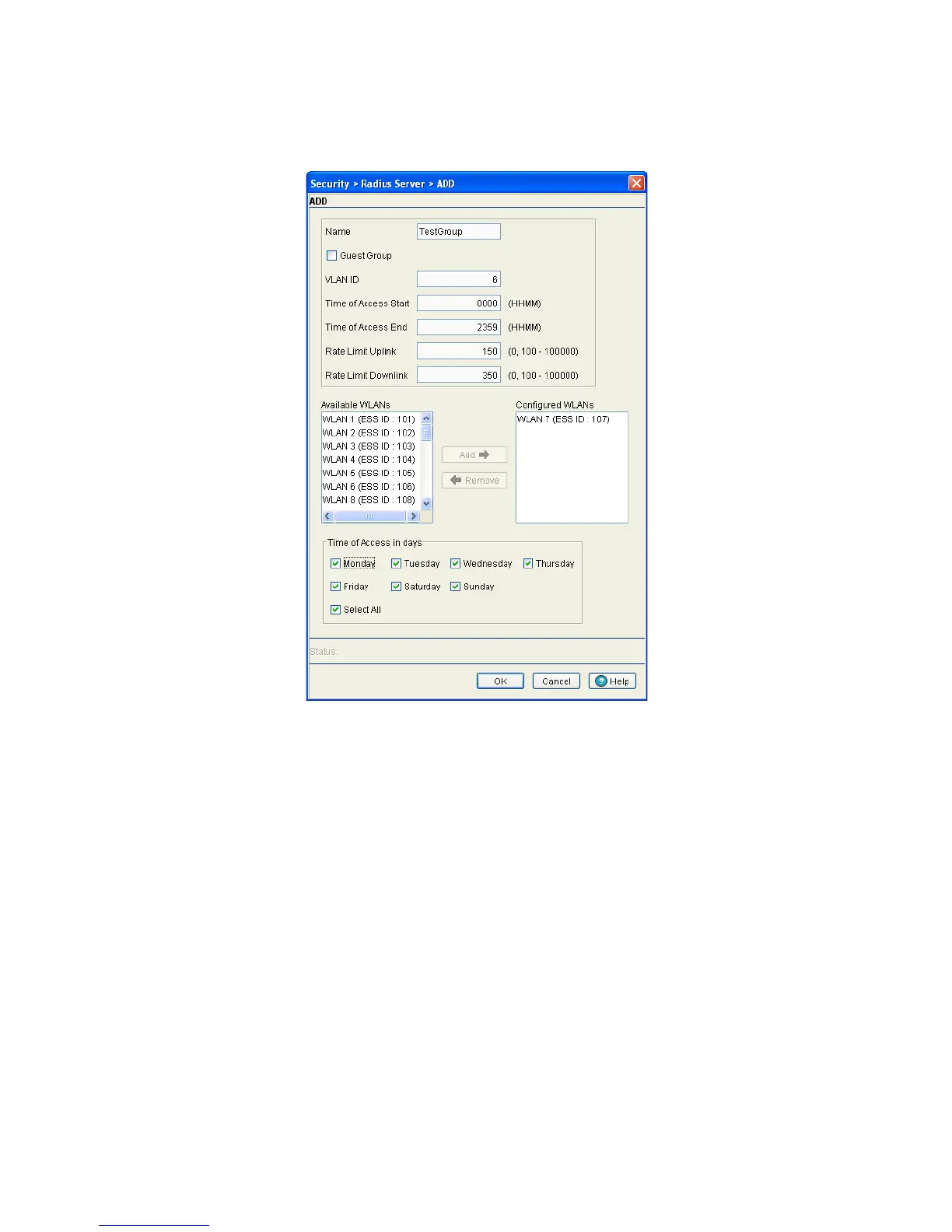

8. To create a new group, click the Add button and provide the following information.
Name Define a unique group name that differentiates this new group from others with
similar attributes.
Guest Group Select the Guest Group checkbox to assign this particular group (and the users
within) only temporary access to the local Radius server, thus restricting their
authentication period to a user defined access interval.
VLAN ID Define the VLAN ID for the new group. The VLAN ID is representative of the shared
SSID each group member (user) employs to interoperate within the switch
managed network (once authenticated by the local Radius server).
