Diagnostics 8-11

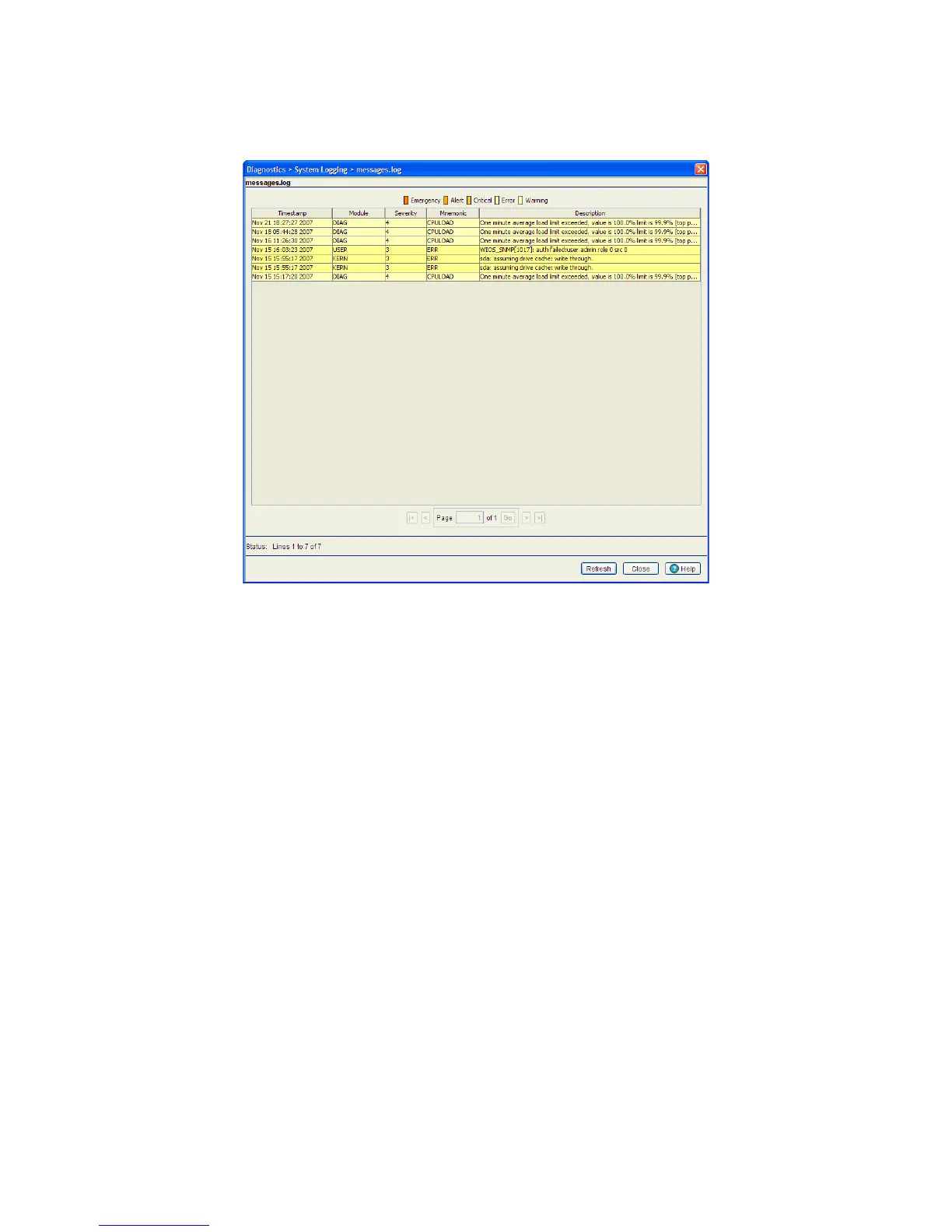

3. Select an individual log file whose properties you wish to display in detail and click the View button.
4. Refer to the following for information on the elements that can be viewed within a log file:
Timestamp Displays the date, year and time of day the log file was initially created. This value
only states the time the file was initiated, not the time it was modified or
appended.
Module Displays the name of the switch logging the target event. This metric is important
for troubleshooting issues of a more serious priority, as it helps isolate the switch
resource detecting the problem.
Severity The Severity level coincides with the logging levels defined within the Log Options
tab. Use these numeric identifiers to assess the criticality of the displayed event.
The severity levels include:
• 0 - Emergency
•1 - Alert
• 2 - Critical
• 3 - Errors
• 4 - Warning
•5 - Notice
• 6 - Info
• 7 - Debug
