Compax3 device description
C3I10T10
52
192-120100 N16 C3I10T10 - December 2010
Cover plate for cable feed through
The cable feed through holes have the following dimensions:
C3H050V4
28.6mm for M20, PG16 and ½” NPT (America).
37.3mm for M32, PG29 and 1” NPT (America).
C3H090V4
22.8mm for M20, PG16 und ½” NPT (America).
28.6mm for M25, PG21 and ¾” NPT (America).
47.3mm for M40, PG36 and 1¼” NPT (America).
54.3mm for M50, PG42and 1½” NPT (America).
C3H1xxV4
22.8mm for M20, PG16 and ½” NPT (America)
28.6mm for M25, PG21 and ¾” NPT (America)
Recommended tightening torques
High voltage supply
Ballast resistor
Grounding
C3H050V4
4Nm / 35lb-in 4Nm / 35lb-in 4.5Nm / 40lb-in
C3H090V4
6-8Nm / 53-70lb-in 6-8Nm / 53-70lb-in 6-8Nm / 53-70lb-in
C3H1xxV4
15-20Nm / 132-177lb-in 0.7Nm / 6.1lb-in 42Nm / 375lb-in

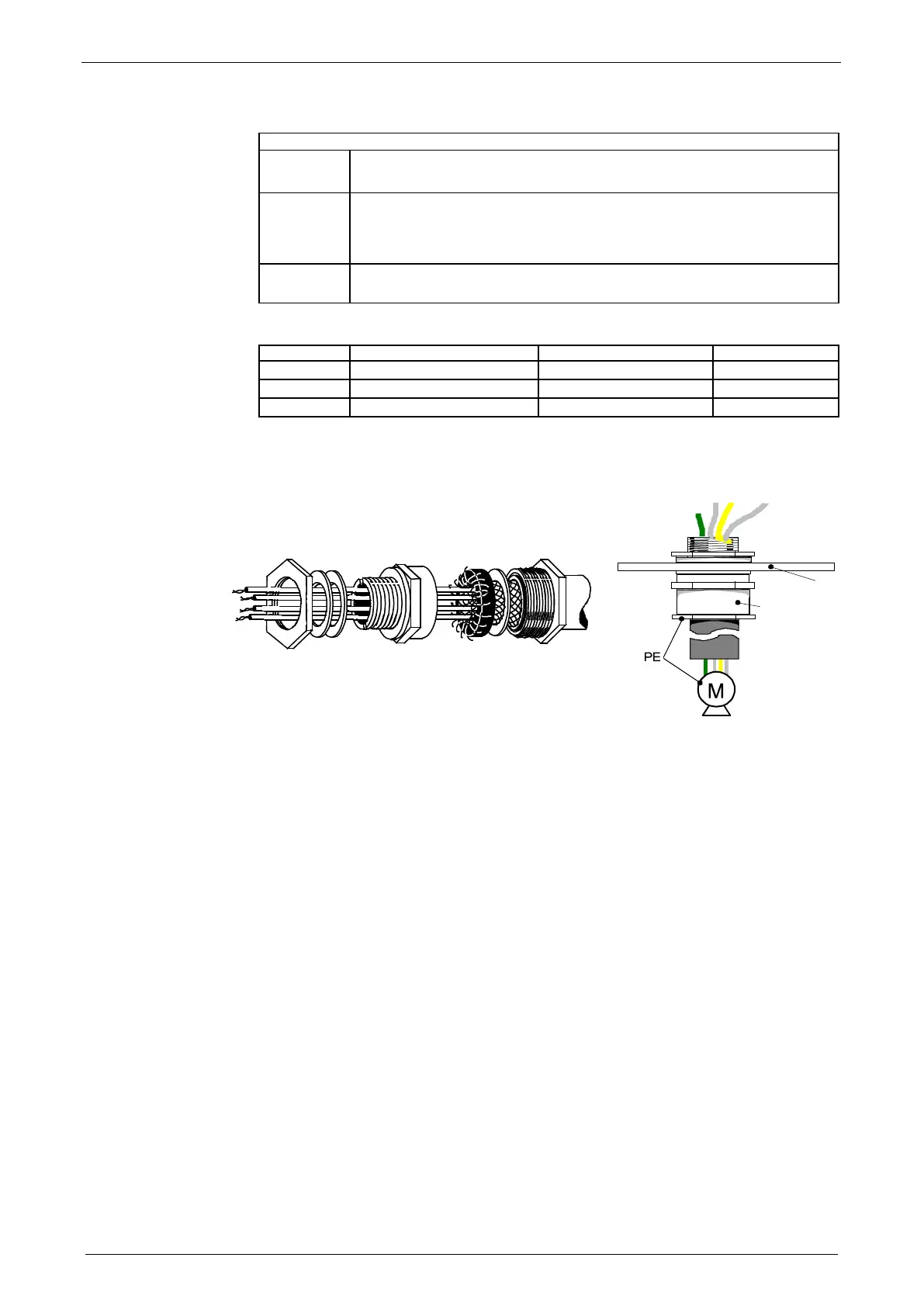

Cable joints
Use metallic cable joints permitting a 360° shielding in order to comply with the
EMC directive.
2
1
1: Cable feed through plate
2: metallic joint with 360° shielding for EMC compliant design
The device must be grounded without interruption according to EN 61800-5-1. The
mains supply lines must be protected with a suitable fuse or a circuit breaker (FI
switches or earth fault fuses are not recommended).
For installation in accordance with EN 61800-5-1 mm Europe:
 For grounding without interruption, two separate protective leads (
²
cross-section)
or one lead (>10mm
²
cross-section) are required. Each protective lead must meet
the requirements according to EN 60204.

Parker Compax3 I10T10 Specifications

General

Rated Current	10 A
Protection Class	IP20
Supply Voltage	200-480 VAC
Control Interface	EtherCAT, CANopen
Feedback Options	Resolver
