Compax3 device description
C3I10T10
80
192-120100 N16 C3I10T10 - December 2010

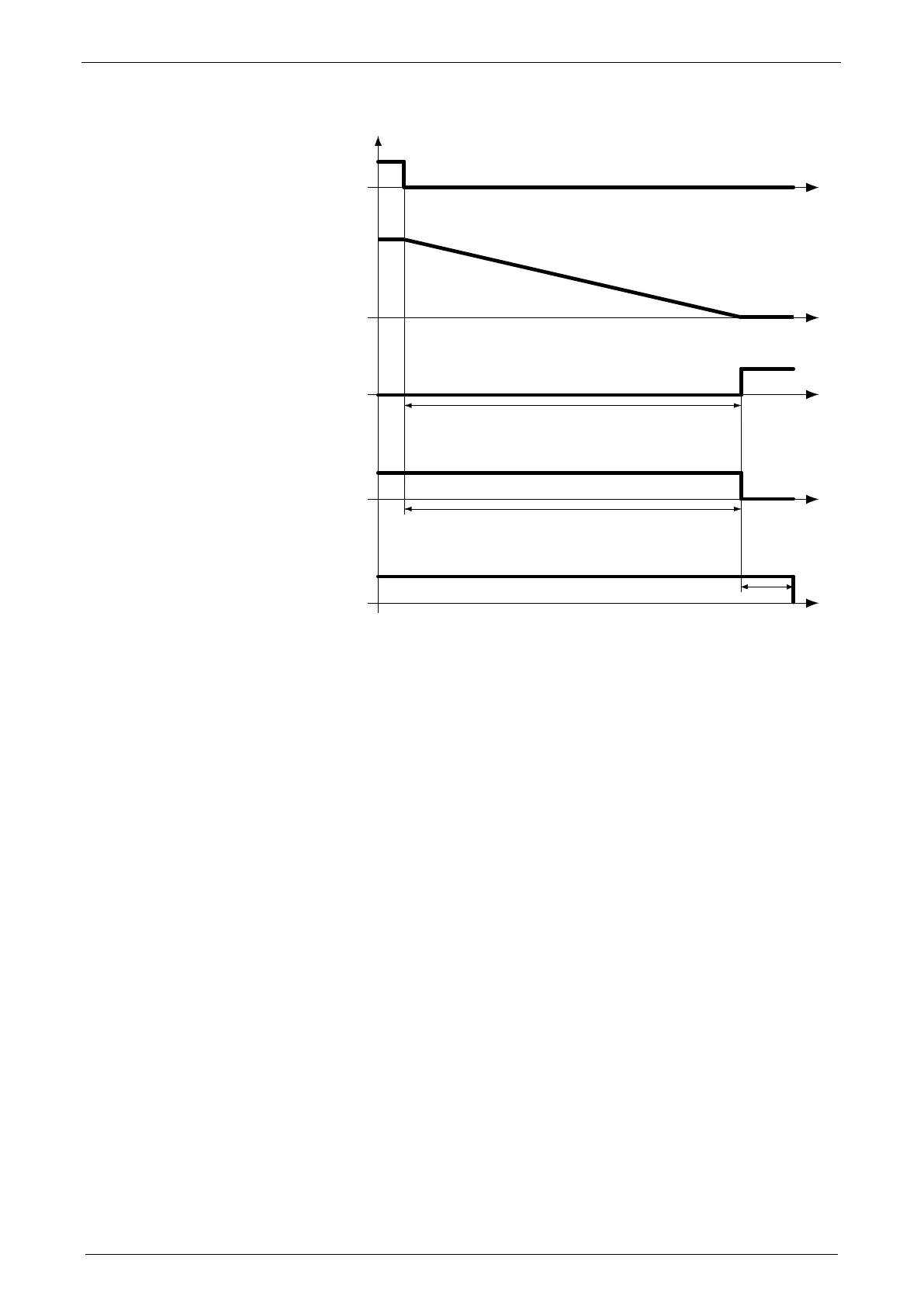

STO delay times
Input Channel 1
(Energize)
Speed
Feedback
Channel 1
t_deceleration
(configurable in Compax3)
t_delay_time
(configurable in UE410)
t_delay_relay_ch2
Input Channel 2
(ENAin)
Feedback
Channel 2
The deceleration time t_deceleration depends on the configuration of the
Compax3. It must be configured so that oscillation free bringing to standstill is
possible, depending on the mechanical load. The delay time t_delay_time must be
set in the safety control device UE410 so that t_delay_time > t_deceleration.
Only after the elapsing of the relay delay t_delay_relay_ch2, the STO function is
completely activated. The relay delay time t_deay_relay_ch2 is 15 ms.

Parker Compax3 I10T10 Specifications

General

Rated Current	10 A
Protection Class	IP20
Supply Voltage	200-480 VAC
Control Interface	EtherCAT, CANopen
Feedback Options	Resolver
