Fuel Lines - Quick Connect
1. Place a shop towel around the fuel line to catch any
dripping fuel. Sq ueeze the c onnector ta bs t ogether
and push the locking slide back.
2. Pull on the fuel line for removal.
3. To install the line(s), verify the connections are clean
an
d free of debris.
4. Snap the fuel line back over the nipple and slide the
lo
cking me chanism ba ck into p lace. Ve rify the
connector tabs snap back into place.

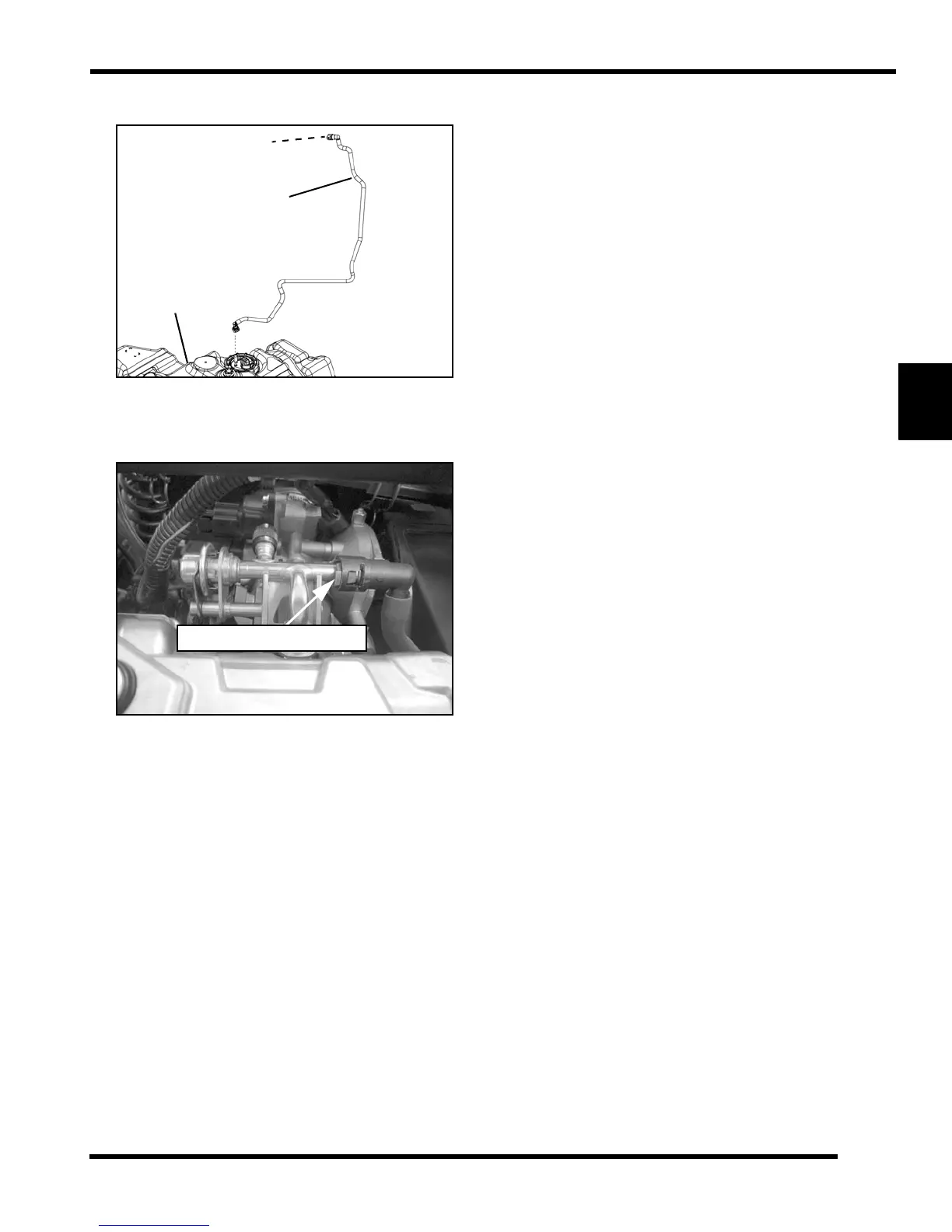

Formed Fuel Line
Fuel Tank
To Fuel Rail
