CLUTCHING
9923523 - 2012 RANGER RZR 570 Service Manual
© Copyright 2011 Polaris Sales Inc.
Clutch Assembly

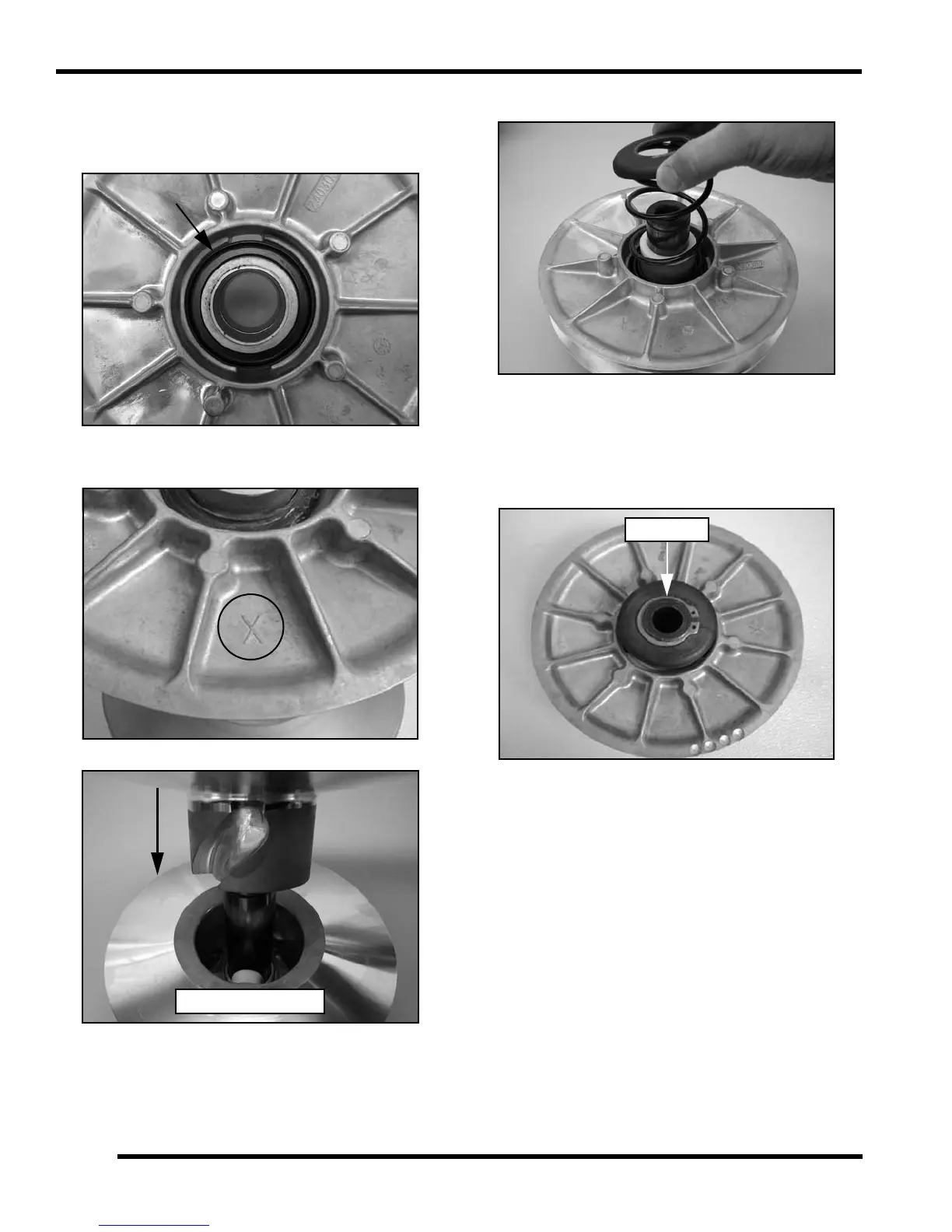

1. Install th e in ner spr ing retainer if removed. Do not
apply oil or grease to the bearings.
2. Align th e “ X” marks on e ach of the she aves during
reassembly.
3. Install the spring into the inner retainer.
4. Install the spacer over the shaft.
5. Install the outer retainer on top of the spring.
6. Place the clutch into the Universal Clutch Compressor
To
ol PN PU-50518 . Apply a nd hold do wnward
pressure on the outer spring retainer. Carefully install
the snap ring.
7. Compress the outer retainer and install the snap ring.
