Park Brake Indicator (INTL Model Only)
This warning is used to
notify the operator that the park
brake lever is engaged.

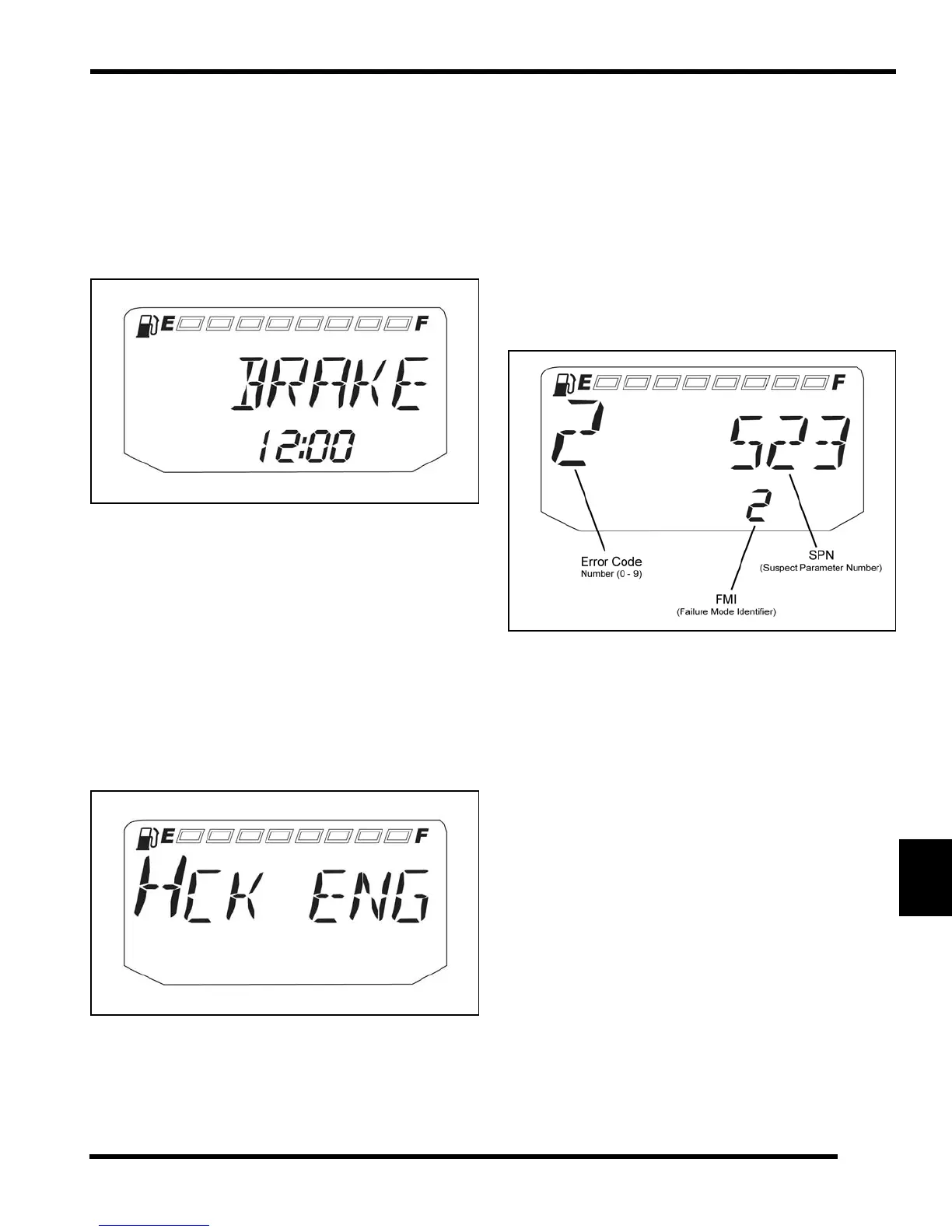

When the park brake is fully engaged, “BRAKE” appears
in
the rider information display. Engine speed is limited to
1500 RPM in all gears, except neutral. If throttle is applied,
this limiting feature prevents operation, which protects the
park brake pads from excessive wear.
Diagnostic Mode
The diagnostic mode is accessible only when the check
engine MIL has been activated.
Use the following procedure to display diagnostic trouble
cod
es that wer e a ctivated dur ing curr ent ignition cycle
causing the MIL to illuminate. Diagnostic trouble codes will
remain stored in the gauge (even if MIL turns off) until the
key is turned off.
1. If th e tr ouble cod e(s) ar e not d isplayed, u se the
MODE
button to togg le u ntil “ CK ENG” displays on
the information display area.
2. Press an d ho ld th e MODE button to en ter the
d
iagnostics code menu.
3. A set of three numbers will appear in the information
ar
ea.
• The first number (located far left) can range from 0
to
9. Th is n umber re presents th e total nu mber o f
trouble code present (example: 2 means there are
3 codes present).
• The second number (located top right) can be 2 to
6 digit
s in length. This num ber equates to the
suspected area of fault (SPN).
• The third number (located bottom right) can be 1 to
2 d
igits in length. This number equates to the fault
mode (FMI).
4. Use the tro uble co de r eference table in the EFI
Ch
apter for a description of each code.
5. If more than one code exists, press the MODE button
to
advance to the next trouble code.
6. To exit the dia gnostic mode, pr ess and ho ld the
MO
DE button or turn the ignition key OFF once the
codes are recorded.
NOTE: If the re is a diag nostic pro blem with the
p
ower s teering system, the power steering MIL will
illuminate and blink in place of the check engine MIL.
