Polaris 2012 RANGER RZR 570 INTL User Manual

9.10
BRAKES
9923523 - 2012 RANGER RZR 570 Service Manual
© Copyright 2011 Polaris Sales Inc.
PARKING BRAKE CALIPER SERVICE (INTL MODEL)

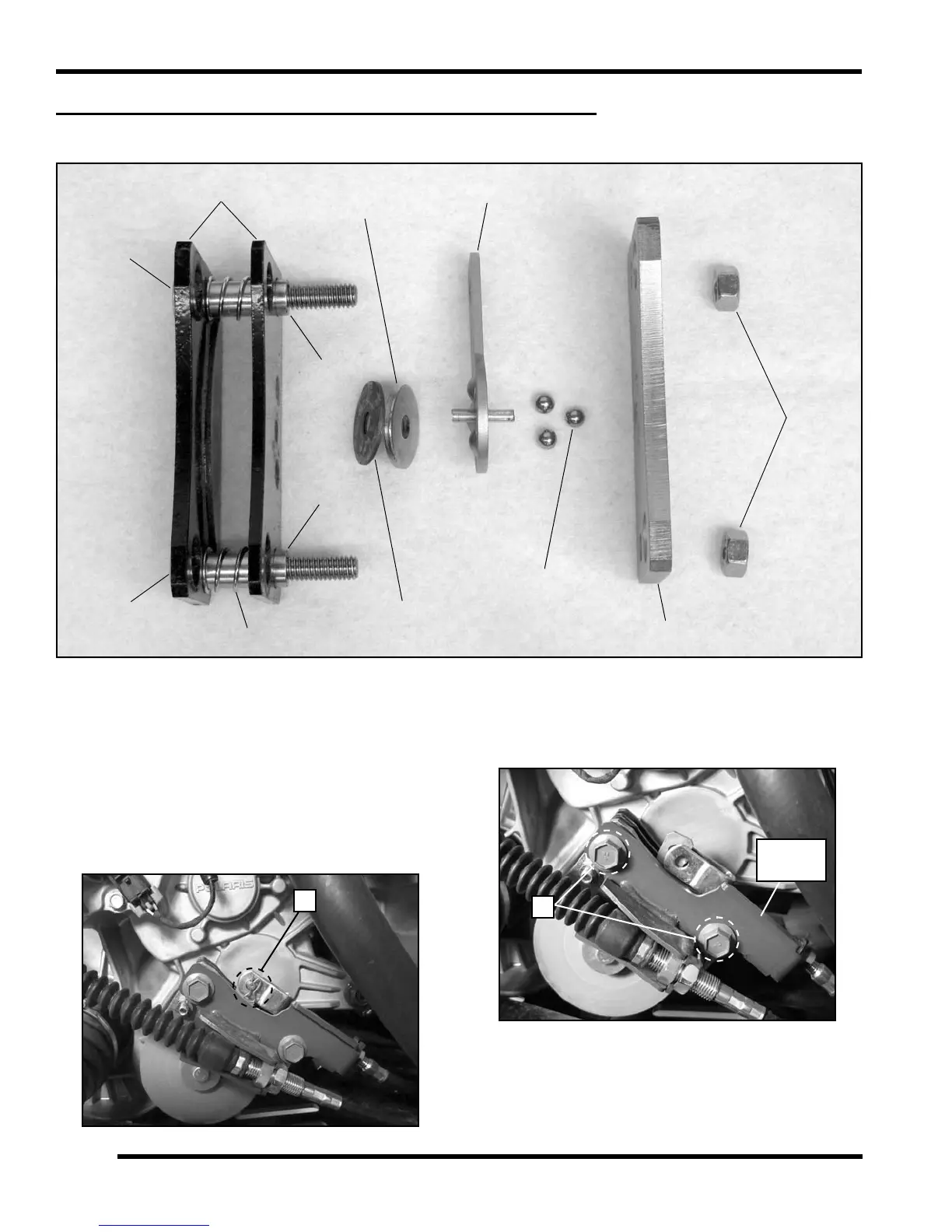

Caliper Exploded View
Caliper Removal
NOTE: Do not get oil, grease, or fluid on the parking
brake pads. Damage to or contamination of the pads
may cause the pads to function improperly.
1. Remove the clip pin and pin ( A) fro m th e pa rking
br
ake cable.
NOTE: Be sure the parking brake is not engaged.
2. Remove the two fasten ers (B) retaining the p arking
bra
ke caliper mount / shift cable bracket.
3. Lift the parking brake caliper off the brake disc and
rem
ove it from the vehicle.
Sleeve
Thrust Washer
Shim Pack (4 Shims)
Apply Anti-Seize Lubricant
Pad & Holder Lever
Assembly
Steel Balls (3)
Stationary Actuator
Spring
Figure 9.1
37 ft. lbs.
(50 Nm)
Nuts
Bolt
Assembly
Bolt
Sleeve
Apply Anti-Seize Lubricant
A
Mount
Bracket
B
